EMAX Skyline32 Mini Flight Controller (Advanced V1.1)
EMAX Skyline32 Mini Flight Controller (Advanced V1.1)
The skyline32 runs the open-source Cleanflight flight control (FC) software which has an ever-growing community of friendly developers and users. Being open-source means that you too can contribute to the system.
Selling points:
- Cleanflight & Baseflight supported. (SKYLINE32 is loaded with Baseflight-Configurator)
- Unique wire-to-board connectors, wiring easier!
- Thin and light design, reducing overall weight saving mounting space!
- With compass sensor, no deviation!
- Adapting high-quality electronic components & high precision SMT.
Features
- 32-bit ARM microprocessor running at 3.3V / 72MHZ.
- With gyro, compass, extended reservation position for accelerometer, barometer.
- Manual mode, Angle mode, Horizon mode, heading hold mode, head-free mode, Altitude hold mode (this mode is available in advanced version)
- Support Quad-,Tri-,Hex- ,various multirotor.
- Flexible RC input: standard, CPPM (PPM SUM)

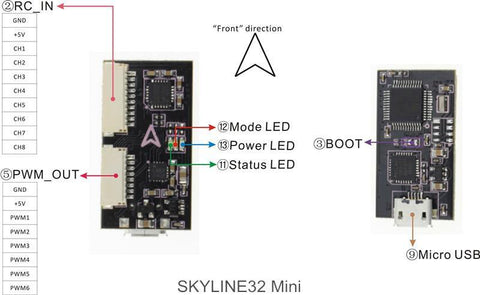

- Micro-USB: Flashing firmware & adjusting parameter
- Parameters adjustment interface: Baseflight-Configuration.
- GPS position hold / “Go home” function(GPS Optional).
Specification:
Dimension: 30mm x 16 mm x 7.5 mm
Weight: 2.6g (W/O wires)
Included:
1x SKYLINE32 mini Advanced
2x RC breakout cable
Note: SKYLINE32 hardware is compatible with NAZE32 firmware, including clean flight, base flight. Below are the links to the source codes:
SKYLINE32 is loaded with base flight and Baseflight-Configurator GUI. This manual is a base flight Setup Tuning Guide for SKYLINE32.
If you are using clean flight firmware, please refer to the below link to download and install clean flight Configurator:
https://chrome.google.com/webstore/search/cleanflight?utm_source=chrome-ntp-icon
Note: with firmware and configuration based on “MultiWii” software, the processor used is not Atmel AVR, and can not be compiled via Arduino or other AVR tools.
http://code.google.com/p/afrodevices/wiki/STM32Development
