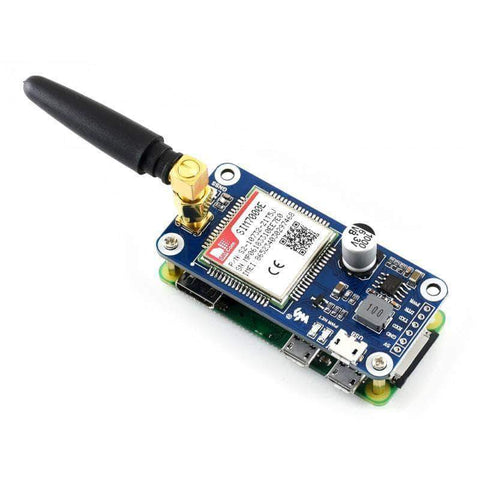

SIM7000E NB-IoT & LTE CAT-M1 Raspberry Pi HAT eMTC EDGE GPS GNSS

  • $89.00
  • Save $10
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • SIM7000E NB-IoT Raspberry Pi HAT eMTC EDGE GPS GNSS

    This Raspberry Pi HAT features multi-communication functionalities: NB-IoT, eMTC, EDGE, GPRS, and GNSS.

    The NB-IoT (NarrowBand-Internet of Things) and eMTC (enhanced Machine Type Communication) are rising IoT communication technologies evolved from LTE (4G), with advantages include low power, low cost, wide coverage, etc. They are suited for applications such as intelligent instruments, remote controlling, asset tracking, remote monitoring, E-health, mobile POS terminals, sharing bikes, and so on. While the GSM/GPRS, and EDGE are traditional 2G/2.5G technologies capable of sending SMS or making other wireless communications.

    Therefore, the SIM7000E NB-IoT & LTE CAT-M1 HAT would be an ideal choice for either evaluating new rising technologies or simply communicating/positioning via multiple ways.

    Features

    • Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
    • Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
    • Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)
    • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
    • Breakout UART control pins, to connect with host boards like Arduino/STM32
    • Onboard voltage translator, 3.3V by default, allows being switched to 5V via 0Ω resistor
    • SIM card slot, compatible with both normal SIM card and NB-IoT specific card
    • 2x LED indicators, easy to monitor the working status
    • Baudrate: 300bps~3686400bps
    • Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
    • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
    • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

    Communications Specifications

      NB-IoT eMTC EDGE GSM/GPRS
    Band SIM7000E: FDD-LTE B3/B8/B20/B28 GPRS/EDGE 900/1800 MHz
    SIM7000C: FDD-LTE B1/B3/B5/B8
    Power saving Current in sleep mode: 1.2mA (@DRX=2.56s).  Current in PSM mode: 9uA.
    Emitting power Class 3 (0.25W@LTE) Class E2 (0.5W@EGSM900)
    Class E1 (0.4W@DCS1800)
    Class 4 (2W@GSM900)
    Class 1 (1W@DCS1800)
    Data Speed Uplink≤66kbps
    Downlink≤34kbps
    Uplink≤375kbps
    Downlink≤300kbps
    Uplink≤236.8kbps
    Downlink≤236.8kbps
    Uplink≤85.6kbps
    Downlink≤85.6kbps
    SIM Card NB Specific (Not Included) Normal SIM (Not Included)
    Applicable Region SIM7000E is mainly applicable in Europe, Africa, Australia, Southeast Asia.

    GNSS Specifications

    • Receiver type
      • 16-channel
      • C/A code
    • Sensitivity
      • Tracking: -162 dBm (GPS)/-157 dBm (GLONASS)/TBD (BD)
      • Cold starts: -148 dBm
    • Time-To-First-Fix
      • Cold starts: <35s
      • Hot starts: <1s
    • Accuracy
      • Position: <2.5m CEP

    Other Specifications

    • Power supply: 5V
    • Operating voltage: 5V/3.3V (3.3V by default)
    • Sleep Mode current: 1.2mA(@DRX=2.56s)
    • Power Save Mode current: 9uA
    • Operating temperature: -40°C ~ 85°C
    • Storage temperature: -45°C ~ 90°C
    • Dimension: 30.2mm x 65mm

    Dimension

    Related Instruction

    Resources

    Tools

    SIM7000 Related



    Package Content:

    1. SIM7000E NB-IoT HAT x1
    2. GSM Antenna x1
    3. GPS External Antenna (B) x1
    4. USB type A plug to micro plug cable x1
    5. RPi screws pack (2pcs) x1
