DLOS8 Outdoor LoRaWAN Multichannel Gateway (with all accessories)

  • $331.00
  • Save $66
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

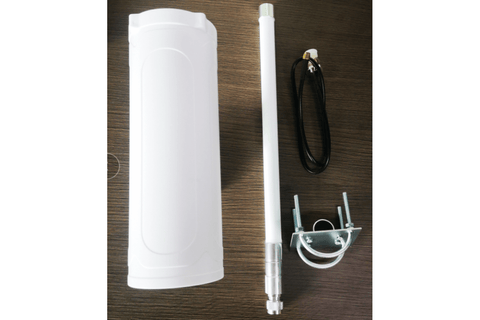

    DLOS8 Outdoor LoRaWAN Multichannel Gateway(with all accessories)

    The DLOS8 is an open-source outdoor LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.

    The DLOS8 uses Semtech packet forwarder and fully compatible with LoRaWAN protocol. It includes an SX1301 LoRaWAN concentrator, which provides 10 programmable parallel demodulation paths.

    DLOS8 has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customize the frequency bands to use in their own LoRaWAN network.

    DLOS8 can communicate with ABP LoRaWAN end node without LoRaWAN server. The system integrator can use it to integrate with their existing IoT Service without set up own LoRaWAN server or use 3rd party LoRaWAN service.


    • Open Source OpenWrt system
    • Managed by Web GUI, SSH via LAN or WiFi
    • Emulates 49x LoRa demodulators
    • Outdoor LoRaWAN Gateway
    • 10 programmable parallel demodulation paths
    • LoRaWAN packet filtering
    • Farseeing LED indicator
    • Built-in GPS module for location & timing
    • External fibreglass antenna
    • 802.3af PoE
    • IP65
    • Lighting Protection
    • Power Consumption:12v 300 ~500mA


    • Smart Buildings & Home Automation
    • Logistics and Supply Chain Management
    • Smart Metering
    • Smart Agriculture
    • Smart Cities
    • Smart Factory

    Specifications: LoRa Spec:

    • 1 x SX1301 + 2 x 1257 LoRa Transceiver

    General Specification:

    • 10M/100M RJ45 Ports x 1
    • 1 x 2.4G WiFi (802.11 bgn)
    • 1 x USB host port
    • Power by 12v DC or PoE
    • Documents:

      Datasheet User Manual Software Source Code Dragino LoRa Gateway Selection Guide

    Dimensions and Weight:


    • Size:pcs
    • Weight:


    • Size: 490120190mm
    • Weight: 1.7 KG
    • Volume Weight: 3kg
