Industrial 4G LTE Router with Enhanced WiFi USR-G806W Din-Rail

$259.00
Save $40
(Exc. GST)

Available in stock

$ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST

$ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)

$ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

Industrial 4G LTE Router with Enhanced WiFi USR-G806W Din-Rail

Freq. Bands: B1-B2-B3-B4-B5-B7-B8-B28 (Telstra and all other AU providers)

USR-G806W is a Wireless 4G LTE Router that adopts industrial high-performance and embedded structure, and it is widely used in industrial control, smart electricity, personal health care, and smart homes to transmit data. It uses EC25-AU 4G module.

4G LTE Industrial Routers, secure wireless routing for industrial remote access
Providing reliable, seamless connectivity for M2M & IoT applications
Support PPTP L2TP IPSEC OpenVPN GRE
Support 2 10/100Base-T(X) self-adaptive Ethernet interface
Hardware watchdog, rugged metal casing, and Din-Rail mounting
Support 802.11 b/g/n WLAN

Ordering Guide

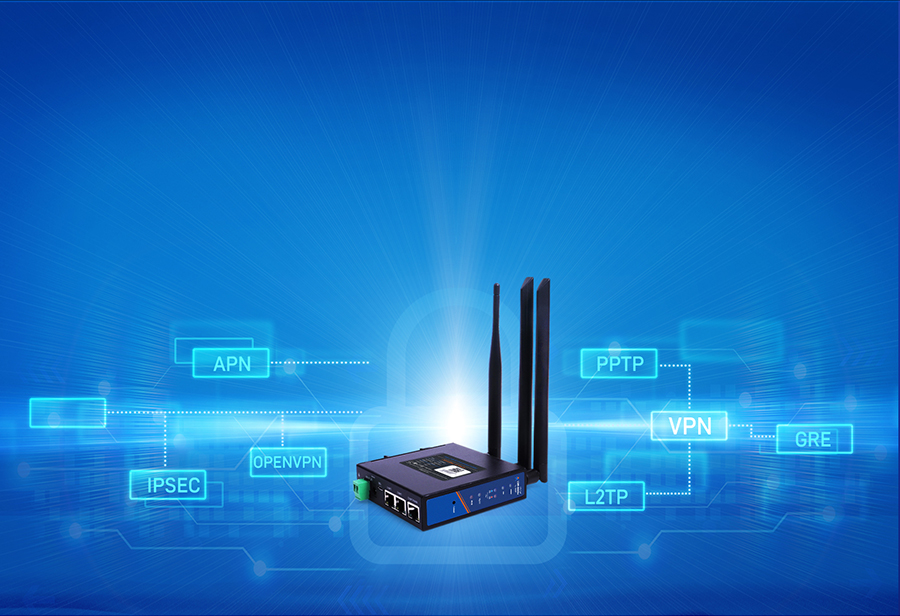

Your Data Security, Our Responsibility

Comprehensive VPN protocols support ensures your data security,
including OpenVPN, IPsec, PPTP, L2TP and GRE.

Multiple encryption method make financial-grade data transmission.

Enhanced OpenVPN Design

Easy to use, but also professional

Allows to connect to three different OpenVPN servers as
a client and also function as an OpenVPN server.

Qualcomm Solution
Performance Ensurance

The core Wi-Fi chip (master control) and 4G cellular
module adopt the industry-leading Qualcomm
solution to ensure the performance and stability
of the device during using.

WiFi Enhance, More Coverage

Multiple Networking
Failover and Backup

Cellular, wired and Wi-Fi internet access modes can be switched freely.
Service can be recovered in time when
a network exception occurs.
Ethernet & Wi-Fi terminal can connect
to the router for data transmission.

Remote Management
Anytime, Anywhere

PUSR Remote Management platform is an all-in-one user-friendly
loT platform providing a smart way to manage your device
remotely, securely and reliably.

Network Abnormal
Real Time Alarming

1. Device offline alarm, weak signal alarm,
network traffic overrun. All of this can be alarmed in real time.
2. Multiple alarm push ways such as E-mail, SMS.
Repeated push supported.

Data Security, Multiple VPN Support

G806W supports mainstream VPN protocols,
including PPTP, L2TP, IPSec, OpenVPN, and GRE.
Multiple safe encryption methods make data safe
transmission up to financial grade.

Industrial Grade Design
High Reliability

Watchdog

Hardware & software dual watchdog.
7*24h stable operation without downtime.

Surge/EFT Protection

Protect device against damage
caused by instantaneous
current interference in circuit,
such as lightning stroke,
power switch, etc.

ESD Protection

Prevent electrostatic damage
to equipment,such as human
electrostatic, dust electrostatic,
electric arc, etc.

Wide Operation
Temperature

-20℃ ~ +70℃

Wall Mounting & DIN Rail Mounting
All Available

Product Details

Packaging List

Ideal Applications

USR-G806w hardware specification
Cellular Interface		Frequency		-E	-AU
				TDD-LTE:B38/40/41 FDD-LTE：B1/3/7/8/20/28A WCDMA：B1/8 GSM/EDGE:B3/8	TDD-LTE:B40 FDD-LTE：B1/2/3/5/7/8/28 WCDMA：B1/2/4/5/8 GSM/EDGE:B2/3/5/8
		Antenna		1 x SMA-K
		SIM card		1 x (3 V & 1.8 V) Standard 4FF SIM
Ethernet		WAN		1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection
		LAN		1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation transformer protection
Indicators		PWR		red, always on after powered on
		WIFI		green, always solid on when WiFi is enabled and working properly
		2/3/4G mode indicator		2G led is on after connected to 2G network 3G led is on after connected to 3G network Both leds is on after connected to 4G network
		SIG		Signal strength：2 LED issolidon,strongest signal
Wi-Fi		Standards & Frequency		IEEE 802.11b/g/n, 2.4GHz, AP/STA/Repeater mode
		Data speed		300Mbps
		Antenna		2 x RP-SMA-K
		MIMO		2×2
		Transmission distance		500 meters by line of sight.Actual transmission distance depends on environment of the site.
		WiFi users		Up to 20 simultaneous connections
Power Supply		Adaptor		DC 12V/1A
		Connector		DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block, reverse polarity protection
		Input voltage		DC 9-36V
		Power consumption		Average 260mA/12V
Physical Characteristics		Casing material		Metal shell, IP30
		Dimensions		104.0102.028.0 (LWH, antenna pedestal, terminal block, and DIN Rail are not included）
		Installation		Panel mounting, DIN-Rail mounting
		EMC		Static IEC61000-4-2, level 3 Pulsed Electric Field IEC61000-4-4, level 3 Surge IEC61000-4-5, level 3
		Operating temperature		-20℃~+70℃
		Storage temperature		-40℃～+125℃（non-condensing）
		Operating humidity		5%~95%（non-condensing）
Others		Reload		Pinhole reset button
		TBD		Debug interface (TTL Level)
		Ground protection		Screw
USR-G806w Software Specifications
Network Connection	WAN protocol		PPP, PPPoE, DHCP client
	LAN protocol		ARP, DHCP server, NAT, VLAN
	4G network access		Auto APN/VPDN, private network Access authentication: CHAP/PAP
	WLAN security		Open system,WPA/WPA2 PSK TKIP/AES encryption
	IP routing		Static routing
	Network diagnosis		Ping, route trace, DNS
Device management	Configuration		Web
	Remote management		SSH, AT command,SNMP,SMS
	PUSR platform		Remote monitoring,remote upgrade,alarming,base station location,remote access to web pages of the router
Security	Failover backup		WiFi WAN, Mobile, Wired options, each of which can be used as an automatic Failover
	Firewall		DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
	VPN		Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1), OPENVPN protocols
Service	DDNS		Remote access the device through domain name
	Alarm		Email,SMS
	Others		NTP client Timing task

Features of 4G LTE Router

Wireless	WIFI / 4G
Power Supply	DC 5-36V
Frequency band	GSM/GPRS/EDGE, WCDMA, TD-LTE, FDD-LTE, TD-SCDMA
Configuration	Web page
Function	Watchdog, QOS management, DDNS, port-forwarding
Network	VPN(PPTP/L2TP), PPPOE, DHCP, Static IP

Ethernet Port
WAN port	WAN *1
LAN port	LAN * 1
	Both LAN port and WAN port with a rate of 10/100Mbps, Auto MDI/MDIX
WIFI
WIFI Network	Support 802.11b/g/n
Antenna	WIFI antenna *2
Specification
Interface	Mini PCI-E 52PIN
TD-LTE	3GPP R9: download rate of 150 Mbps; Upload rate of 50 Mbps
FDD-LTE	3GPP R9: download rate of 150 Mbps; Upload rate of 50 Mbps
WCDMA	HSPA+: download rate of 21 Mbps; upload rate of 5.76 Mbps
TD-SCDMA	3GPP R9: download rate of 2.8 Mbps; upload rate of 2.2 Mbps
GSM/GPRS/EDGE	Download rate of 384 kbps; upload rate of 128 kbps
Frequency Band
TDD-LTE	Australia: Band 40
FDD-LTE	Australia:1/3/4/5/7/8/28
WCDMA	Australia:1/2/5/8
TD-SCDMA	/
GSM/GPRS/EDGE	Australia:Band 2/3/5/8
SIM card&Antenna
SIM/USIM Card	Standard 6 pin SIM card, 3V/1.8V SIM card
Antenna	3/4G full-frequency antenna * 1
Temperature
Working Temp	-20°C~ +70°C
Storage Temp	-40°C~ +75°C
Humidity
Working Humidity	10%~90%
Storage Humidity	5%~90%
Power Supply
Working Voltage	DC 5~36V
Working Current	Average: 120mA; Max: 246mA (DC12V)

Note: This kit includes all antennas and an AU Power Adapter.

Documents

EC25-AU Module

USR-G806-AT-Command-Set_V1.0.1

USR-G806w Specifications

USR-G806W Quick User Guide
