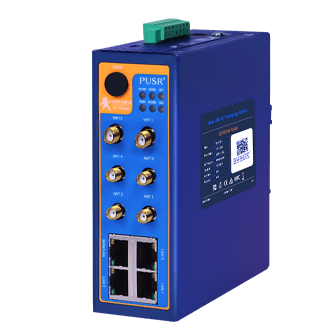

USR-G816 5G Multi-Port Industrial Cellular Router WiFi DIN-Rail

  • $799.00
  • Save $100
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

    USR-G816 5G Multi-Port Industrial Cellular Router WiFi DIN-Rail

    USR-G816 is a 5G multi-port industrial router with high speed, large bandwidth, and low latency features. It adopts industrial-grade design standards and supports wide-temperature and wide-voltage terminal power supply, industrial EMC protection, and hardware watchdog.

    Specifications

    USR-G816 specifications


    Cellular

    Interface

    Frequency

    5G NR sub-6 GHz (3GPP Rel-16)

    Band(NA/NSA):

    n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/ 79;

    4G LTE (CAT19 DL / CAT 18 UL)

    LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71;

    LTE-TDD: B34/38/39/40/41/42/43/48;

    LAA: B46;

    3GWCDMA: B1/2/4/5/8/19

    Maximum Transmission Data Rate


    5G SA Sub-6: Max. 2.4Gbps (DL)/Max. 900Mbps (UL);

    5G NSA Sub-6: Max. 3.4Gbps (DL)/Max. 550Mbps (UL)

    LTE-FDD: Max. 1.6Gbps (DL)/Max. 200Mbps (UL)

    WCDMA: Max. 42 (DL)/Max. 5.76 (UL)

    Antennas

    4 × SMA-K Connectors (Center PIN: SMA Female)

    SIM Slot

    2 x (3 V/1.8 V) mini-SIM(2FF) Push-push type slot (SIM Card 2 can be configured with built-in eSIM)

    Ethernet Interface

    WAN

    1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, supports auto MDI/MDIX crossover, Ethernet Isolation 1.5KV RMS

    LAN

    3 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover, Ethernet Isolation 1.5KV RMS




    Indicators

    PWR

    red, always on after powered on

    WORK

    green, blinking every 1second when the router is ready and working properly

    NET

    Mobile network type LEDs

    NET lights on after device is connected to the network. Green stands for 5G, green and red for 4G, and red for 3G

    SIG

    Mobile signal strength indication LED

    Green represents excellent signal, two-color light represents good signal, red represents poor signal

    WLAN

    always solid on when WiFi is enabled and working properly

    WAN

    LED blinking When Connection established and data is being transferred over this port.

    LAN

    LED blinking When Connection established and data is being transferred over this port.

    Wi-Fi Interface

    Antennas

    2 × SMA-K Connectors (Center PIN: SMA Female)

    MIMO

    2×2

    Standards

    Concurrent dual-band 802.11a/n/ac (5.8GHz) and 802.11b/g/n (2.4GHz)

    Modes

    AP/AP+STA/AP+WDS repeater

    Data speed

    Up to 1733Mbps wireless operation rate at 5.8GHz

    Security

    Wi-Fi security with WPA-PSK, WPA2-PSK, Mixed WPA/WPA2-PSK, WPA2-PSK+CCMP

    Transmission distance

    200 meters by line of sight. Actual transmission distance depends on environment of the site.

    GNSS(Optional)

    Antenna

    1 × SMA-K Connector (Center PIN: SMA Female)

    Technology

    GPS, GLONASS, BeiDou, Galileo

    Protocol

    NMEA 0183

    Power Supply

    Adapter

    DC 12V/2A

    Connector

    DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or industrial terminal block(V+,V-),reverse polarity protection

    Input voltage range

    DC9-36V

    Power consumption

    Average current 630mA@12V and the maximum current 1.6A@12V

    Serial Interface

    Numbers

    1 × RS485/RS232

    Connector

    Terminal block

    Baud Rate(bps)

    1200,2400,4800,9600,19200,38400,57600,115200,230400,460800(only 485)

    Signal definition

    RS232: TXD, RXD, GND RS485: A, B, GND

    Data bits

    7,8

    Stop bits

    1,2

    Parity

    NONE, ODD, EVEN

    Physical Characteristics

    Casing material

    Metal shell, ingressprotection IP30

    Dimensions

    125.0*103.0*45.0mm (L*W*H, antenna pedestal, terminal block and DIN Rail are not included)

    Installation

    Desktop, wall mounting and DIN-rail mounting

    EMC

    Static IEC61000-4-2, level 3

    Pulsed Electric Field IEC61000-4-4, level 3

    Surge IEC61000-4-5, level 3

    Operating Temperature

    -35℃ ~ +75℃

    Storage Temperature

    -40℃~+125℃ (Non-condensing)

    Relative Humidity 0

    5%~95% (Non-condensing)

    Others

    Reload button

    1 × Reload

    TBD

    Debug interface (TTL Level)

    Ground protection

    Screw

    Built-in

    Watchdog

    Software

    Network Protocols

    PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.

    VPN

    LT2P, PPTP

    Security

    Access Control, DMZ, Port Forwarding, SYN-Flood Protection, Filtering (IP& MAC & Domain)

    Management

    Web UI, PUSR cloud

    Reliability

    WAN Failover, Dual SIM Backup

    Serial port

    Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP)

    Certificate

    In progress

    CE, *FCC, *WEEE, RoHS, *RCM, *WPC

    Why USR-G816?

    Multiple Networking Options

    Cellularwired and Wi-Fi internet access modes can be switched freely. Service can be recovered in time when a network exception occurs. Ethernet & Wi-Fi & serial terminal
    can connect to the router for data transmission.

    Global 5G Network Access with 4G Fallback

    Support SA/NSA 5G Network
    Support APN & VPDN & IoT SIM Card
    Support Global Mainstream 5G/4G Frequency Bands

    Qualcomm Quad Core Processor with X62 Modem
    Fully Optimized for High Performance

    Equipped with Qualcomm's high-performance 4-core processor and X62 5G Modem, it supports both SA+NSA networks and global mainstream frequency bands, providing an ultra-fast 5G internet experience.

    Equipped with Serial Port for Industrial IoT Integration

    Industrial-grade Standard, Wide Temperature Operation

    Metal housing, industrial-grade electronic components,
    efficient heat dissipation design, all of these are designed to ensure
    stable operation in harsh environments ranging from -35ºC to 75ºC.

    Your Data Security, Our Responsibility

    Comprehensive VPN protocol support ensures your data security,
    including OpenVPN, IPsec, PPTP, L2TP and GRE.

    Multiple encryption methods make financial-grade data transmission.

    Enhanced OpenVPN Design

    Easy to use, but also professional

    Allows to connect to three different OpenVPN servers as
    a client and also function as an OpenVPN server.

    Remote Management Anytime, Anywhere

    USR Remote Management platform is an all-in-one user-friendly loT platform
    providing a smart way to manage your device remotely, securely and reliably.

    Network Abnormal
    Real Time Alarming

    1. Device offline alarm, weak signal alarm, network traffic overrun.
    All of this can be alarming in real-time.
    2. Multiple alarm push ways such as E-mail, SMS. Repeated push supported.

    Product Details

    Packing List
