Ranges from 20cm to 1068cm with a 10Hz read rate. Analog envelope, analog voltage, and RS232 serial. Reports range to the closest target.
The MB7076 XL-MaxSonar-WRLA1 is Maxbotix longest range (10m) outdoor sensor.

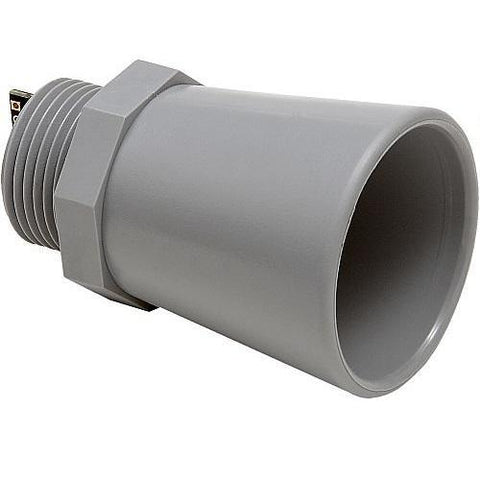

The weather-resistant XL-MaxSonar-WR is a rugged ultrasonic sensor component module. This outdoor sensor provides very short to long distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.
Housing Option Available: (Specify in order note)
- 3/4" NPS WR Housing
- 3/4" NPS WRC Compact Housing
- Ultra Compact Housing
- Ultra Compact Housing Flush Mount
- 1" NPS Housing
- 1" BSPP Housing
- 30MM 1.5 Housing
High output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL‑MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long range detection zones.
MB7066 is the pulse width output version of this sensor.
MB7070 is the standard version of this sensor.
MB7092 is an advanced filtered version of this sensor.
Models with additional chemical resistance are available
The F-Option (IP-68) design modification provides Maxbotix weather resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP-68) when ordering.
Product Specifications
- Resolution of 1 cm
- 10Hz read rate
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from all 3 select sensor outputs: Analog Voltage, Serial, Analog Envelope
- Operates from 3.0-5.5V
- Low 3.4mA average current requirement
- Small, lightweight module
- Designed for easy integration into your project or product
- Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
- Real-time automatic calibration (voltage, humidity, ambient noise)
- Firmware filtering for better noise tolerance and clutter rejection
- 200,000+ Hours Mean Time Between Failure
- Weather Resistant (IP67), optional Chemical Resistant F-Option
- Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4″ National Pipe Thread Straight)
- Maxbotix longest range outdoor, weather resistant, ultrasonic sensor
- Analog envelope output for easy troubleshooting and signal processing
- Maximum range of 1068 cm (450 inches)
- Long range, narrow detection zone
