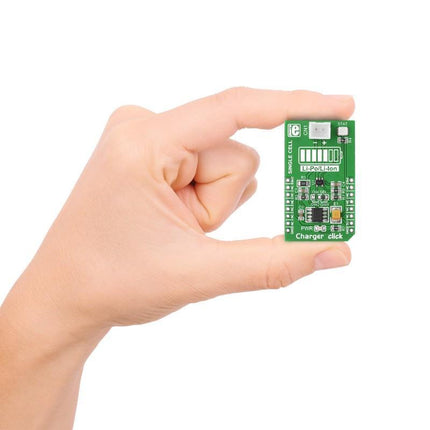

Charger click - MikroElektronika MCP73831 Small Charge Management

  • $29.00AUD
  • Save $6AUD
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Resellers & Large Orders
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • Charger click - MikroElektronika MCP73831 Small Charge Management

    Charger click carries both a battery charger controller and a battery charge monitor, along with a battery connector. The smaller chip is MCP73831, a miniature single-cell Li-Ion and Li-Polymer charge management controller with a programmable charge current from 15 to 250 mA. The larger IC is DS2438, a smart battery monitor which integrates a temperature sensor, a timer, an ADC to measure the battery voltage and current, and a current accumulator that monitors the total amount of current going into and out of the battery. Charger click communicates with the target MCU through a 1-Wire interface. Charger click is designed to use a 5V power supply.

    Downloads



    Type Battery charger,Buck
    Applications Battery charging interface with precise monitoring for Ly-Ion and Ly-Polymer batteries, applicable for all sorts of devices, with precise monitoring.
    On-board modules MCP73831 single-cell Li-Ion and Ly-Polymer battery charger, DS2438 Smart charge monitor
    Key Features Charger click communicates with the target MCU through a 1-Wire interface
    Key Benefits Integrated temp. Sensor, timer, ADC, EEPROM. Programmable charge current from 15 to 500 mA
    Interface GPIO
    Input Voltage 5V
    Compatibility mikroBUS
    Click board size M (42.9 x 25.4 mm)
