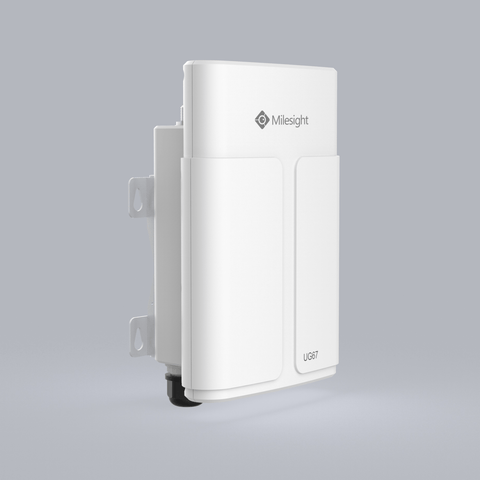

Milesight UG67 Outdoor LoRaWAN Gateway, 8-CH WiFi GPS POE

  • $749.00
  • Save $100
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

    Milesight UG67 Outdoor LoRaWAN Gateway, 8-CH WiFi GPS POE with Built-in Network Server, including accessories.

    • IP67 Rating
    • Internal Antenna Design
    • 64-bit Quad-Core Processor
    • Embedded Network Server
    • New SX1302 LoRa Chip
    • Compatible with Multiple
    • Built-in Supercapacitor
    • Global LoRaWAN® Frequency Plans
    • Multiple Backhaul Connectivities

    Featuring IP67 rated enclosure and PoE-PD (Powered Device), the UG67 LoRaWAN gateway is well suited for working in the harsh outdoor environment

    Outstanding performance makes data processing faster:

    • 512 MB DDR4 RAM
    • 1.5 GHz 64-bit Quad-Core Processor

    High Compatibility

    • Embedded Network Server
    • LoRa Basics™ Station
    • The Things Network, ChirpStack, Link WAN

    Built-in network server, the UG67 also supports Semtech’s latest packet forwarder, and is compatible with multiple network server platforms like TTN, ChirpStack and Orbiwise, which offers a wide range of options for data processing.

    Milesight IoT Cloud

    • Store, manage and analyze all your data with a few clicks
    • Android & iOS versions allow you to manage devices at your fingertips

    Specifications

    Model UG67
    Hardware System
    CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
    Memory 512 MB DDR4 RAM
    Flash 8 GB eMMC
    LoRaWAN®
    Antenna Fully Integrated Internal Antenna (Optional: 2 × 50 Ω N-Female External Antenna Connector)
    Channel 8
    Frequency Band AU915/AS923
    Sensitivity -140dBm Sensitivity @292bps
    Output Power 27dBm Max
    Protocol V1.0 Class A/Class C and V1.0.2 Class A/Class C
    Ethernet Interface
    Port 1 × RJ45 (PoE PD Supported)
    Physical Layer 10/100/1000 Base-T (IEEE 802.3)
    Data Rate Rate 10/100/1000 Mbps (Auto-Sensing)
    Interface Auto MDI/MDIX
    Mode Full or Half Duplex (Auto-Sensing)
    Wi-Fi
    Antenna Fully Integrated Internal Antenna
    Standards IEEE 802.11 b/g/n
    Tx Power 802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
    802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
    802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
    802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
    802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
    802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
    802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
    Cellular Interface (Optional)
    Antenna Fully Integrated and Internal Antenna
    SIM Slot 1
    GPS
    Antenna Internal Antenna
    Sensitivity -167dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition
    Position Accuracy <2.5 m CEP
    Software
    Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
    VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
    Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2
    Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter
    Management Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud
    Reliability WAN Failover
    Power Supply and Consumption
    Power Supply 1. 1 × 802.3 af PoE input
    2. 1 × 12 VDC with M12 Connector
    Consumption Typical 3.6 W, Max 4.8 W
    Physical Characteristics
    Ingress Protection Protection IP67
    Dimensions 250 x 172 x 92 mm
    Mounting Wall or Pole Mounting
    Others
    Reset Button 1 × RST
    Console Port 1 × Type-C Port
    LED Indicators 1 × SYS, 1 × LoRa, 1 × LTE
    Built-in Watchdog, RTC, Timer
    Certification CE, FCC
    Environmental
    Operating Temperature -40°C to +70°C (-40℉ to +158℉)
    Reduced Cellular Performance Above 60°C
    Storage Temperature -40°C to +85°C (-40℉ to +185℉)
    Ethernet Isolation 1.5 kV RMS
    Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉



    Documents

    UG67 LoRaWAN Gateway Datasheet

    UG67 LoRaWAN Gateway Quick Start Guide

    UG67 LoRaWAN Gateway User Guide
