PHPoC Black (P4S-341) - IOT Development Board
PHPoC Black (P4S-341) - IOT Development Board
PHPoC Black (P4S-341) is an industrial programmable IoT board. You can build various network communication systems by connecting it to devices such as sensors and motors. Sollae Systems provides a self-development programming language, which is called PHPoC, for programming PHPoC Black. PHPoC is easy to use and compatible with PHP which is widely used script language. With PHPoC Black, you can monitor and control your equipment from a remote site via web browser. Also, it is designed to be stackable for you to implement additional functions with PHPoC expansion boards.
- PHPoC (PHP on Chip) interpreter embedded
- Uploading and debugging codes via USB
- 10Base-T/100Base-TX Ethernet (RJ45)
- 8 x digital input/output port
- 14 x sharing port (Digital Input/Output, SPI, I2C, UART)
- 6 x analogue input port
- HTTP/SSH/Websocket server
- Web page customization available (accessible with smart devices)
Features:
- Sensor Monitoring
- Actuator Control
- Web Application
- Web Socket
- Smart Device Support
- IoT Cloud Service Support
- Database(MySQL) Support
- Source Level Debugging
- Networking
- Security Protocol

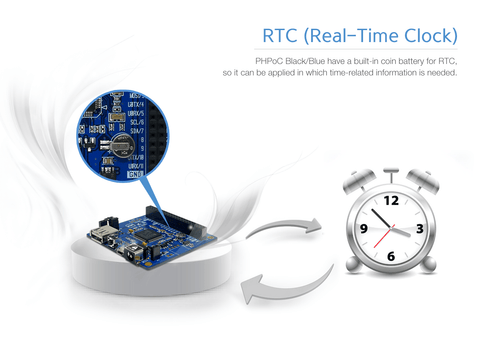

- RTC(Real-Time Clock)
- Industrial Operating Temperature
| Processor | |
| Core | Cortex-M4 168MHz |
|---|---|
| Flash | System-512KB, User-512KB |
| SRAM | 192KB |
| Power Input | |
| Input Voltage | 5V±10% |
| Input Port | DC jack or USB device port |
| Max Current | DC jack: 1.5A, USB device port: 500mA |
| Network Interface | |
| Ethernet | 10Base-T/100Base-TX Ethernet (RJ45) |
| USB Interface | |
| USB Host | USB Host interface for expansion board |
| USB Device | PC interface for programming |
| DIO | |
| Type | 3.3V CMOS level digital I/O |
| Ports | Maximum 22 ports |
| Mode | Input/Output, Push-Pull/Open-Drain, Pull-up/Pull-down |
| Communication | |
| UART | 2 Ports (RXD, TXD, RTS, CTS, GND) with Hardware Flow Control |
| SPI | 1 Port |
| I2C | 1 Port (100Kbps or 400Kbps) |
| ADC | |
| Resolution | 12 bits |
| Channels | 6 |
| Hardware Timer/Counter | |
| Mode | PWM output, Pulse Output, Toggle Output, Capture |
| Unit | Milliseconds or Microseconds |
| Channels | 4 |
| RTC | |
| Battery | 40mAh lithium coin |
| Peripherals | Real-time Clock, 4KB Backup SRAM |
| Indicators (LEDs) | |
| System LED | Power, Status, 3.3V, PWR5 |
| User LED | uio0.30, uio0.31 |
| Power Output | |
| 3.3V Max Current | 1A |
| PWR5 + 3.3V Max Current | 1.5A |
| Dimension | |
| Size | 66.5mm x 63.8mm x 13mm |
| Weight | about 30g |
More product information here in this link.
