4x Thermocouple Phidget - TMP1101_0

  • $58.00AUD
  • Save $21


  • $ As We Ship Worldwide, Prices (AUD) are Exc. GST
  • $ Contact Us, We Offer Further Discounts for Higher Quantities
  • $ Further Special Discounts for Educational Institutes

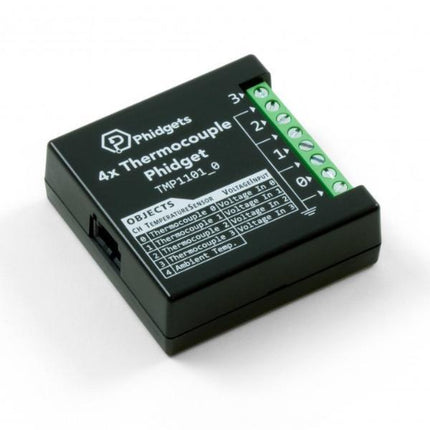

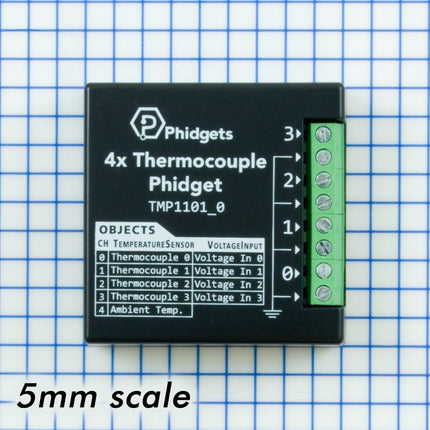

  • 4x Thermocouple Phidget - TMP1101_0

    With this Phidget, you can connect up to four thermocouples to a single VINT port, making it ideal for temperature testing and comparison. You can use a J, K, E or T type thermocouple; set the appropriate type in software and it will convert sensor data into degrees Celsius automatically. If you have other thermocouple types, you can open the channel in VoltageInput mode and convert to temperature manually according to your thermocouple's datasheet.

    Long Wires

    One of the major advantages of using a thermocouple is the capability of using long wires. Thermocouples have been known to work with segments as long as 100m, while USB and other sensors suffer from voltage drops after 5 or 10m. You can find thermocouple extension wire on the Compatible Products tab. Please note that the longer you make your thermocouple wires, the more likely it is that you'll experience noise and interference. For more information, see our document on Addressing Electromagnetic Interference.

    Product Specifications

    Board
    Controlled By VINT
    Number of Thermocouple Inputs 4
    Thermocouple Input
    Thermocouple Error Max (K-Type) ± 2 °C
    Thermocouple Temperature Resolution (K-Type) 0.04 °C
    Sampling Interval Min 100 ms/sample
    Sampling Interval Max 60 s/sample
    Thermocouple Voltage Resolution 1 μV DC
    Onboard Temperature Sensor
    Temperature Error Max ± 1 °C
    Sampling Interval Max 60 s/sample
    Sampling Interval Min 500 ms/sample
    Temperature Error Typical (At 25°C) ± 0.25 °C
    Temperature Resolution 0.063 °C
    Temperature Max 85 °C
    Temperature Min -40 °C
    Electrical Properties
    Current Consumption Min 10 μA
    Current Consumption Max 5 mA
    Physical Properties
    Recommended Wire Size 16 - 26 AWG
    Operating Temperature Min -40 °C
    Operating Temperature Max 85 °C
