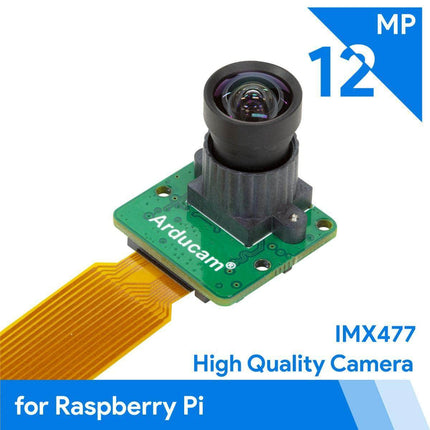

Arducam 12MP IMX477 Mini HQ Camera for RPi B0262
Arducam 12MP IMX477 Mini HQ Camera for RPi B0262
Time to enjoy a smooth upgrade for your IMX219 to the 12MP IMX477 camera, or relieve the stress from the bulky Raspberry Pi High-Quality Camera Module! This Arducam 12MP IMX477 camera module for Raspberry Pi has the same camera board size and mounting holes as the Raspberry Pi Camera Module V2, so no major hardware modifications are needed to ditch your 8MP IMX219 and embrace Arducam. Space- and weight-constrained IMX477 applications, such as drones, also benefits from this camera, because it keeps the same imager performance and same control commands as the official Raspberry Pi High-Quality Camera, while offering a much smaller size and lighter weight, as well as interchangeable M12 lenses.
Features
- Resolution: High Resolution
- Shutter Type: Rolling Shutter
- Color Type: Color
- IR sensitivity: Visible light only
- Interface: MIPI
- Platform Support: Raspberry Pi
- Picture Format: JPEG (accelerated), JPEG + RAW, GIF, BMP, PNG, YUV420, RGB888
- Video formats: raw h.264 (accelerated)
Specification
- Sensor type: IMX477
- Pixel size: 1.55um x 1.55um
- Resolution: 4056(H) x 3040(V) 12.3MP
- Optical Size: 1/2.3”
- Lens spec: Focal length: 3.9mm, F.NO: 2.8, FOV: 75° (H), Low Distortion,M12 Mount, interchangeable
- Color Filter: 650nm
- Video Modes on Raspberry Pi: 1080p30, 720p60 and 640 × 480p60/90
- Interface Type: 2-lane MIPI
- Board Size: 24 x2 5mm
- Partnumber: LN053
Applications
- UAV/Drones/FPV camera
- Machine Vision
- Robotics
- Face Recognition
- Defect Detection
Documentation

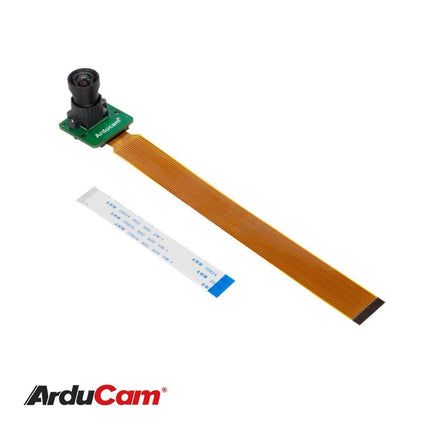

Package Including
- 1 pcs 12.3MP IMX477 color camera module with M12 mount lens
- 1 pcs 150mm/12inch 15pin to 22pin camera cable
- 1 pcs 80mm/3.1inch 22pin camera cable
Blog:
Arducam 12MP IMX477 HQ camera module for Raspberry Pi
