Arducam CMOS AR0134 1/3" 1.2MP Monochrome Camera Module (B0110)

  • $99.00AUD
  • Save $10AUD
  • (Inc. GST: $108.90AUD)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ Contact Us! We Offer Further Discounts for Resellers & Large Orders
  • $ Further Special Discounts for Educational Institutes & Net30 Payment
  • Arducam CMOS AR0134 1/3" 1.2MP Monochrome Camera Module (B0110)

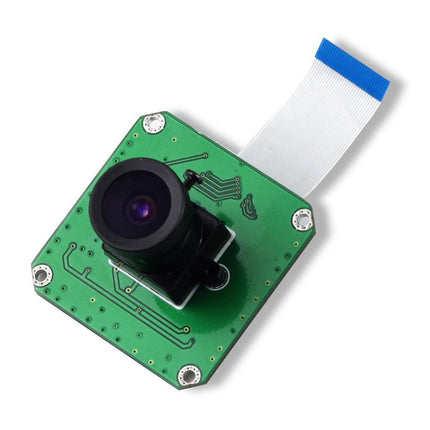

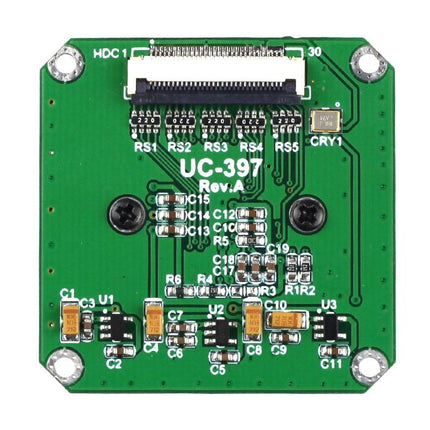

    The AR0134 module is a 1/3 inch 1.2MP global shutter monochrome camera module which can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a full-resolution image at 54 frames per second (fps). It outputs 12-bit raw data, using either the parallel output ports. The device may be operated in video (master) mode or in frame trigger mode.

    This camera module can be used together with Arducam USB shield for Windows, Linux and Raspberry Pi.

    Please check the following link: https://www.iot-store.com.au/products/arducam-usb-camera-shield

    1/3" 1.2MP (1280 x 960) CMOS monochrome global shutter camera module AR0134.
    High frame rate, high dynamic range, good sensitivity for machine vision with an external trigger.

    Features

    • 1/3" optical format
    • 1.2MP 1280 x 960 AR0134 global shutter sensor
    • 6.0 x 6.0 um Pixel size
    • 54fps at full resolution
    • 5.3V/lux-sec responsivity
    • 64dB dynamic range
    • single 3.3V power input
    • Parallel camera interface
    • Default M12 mount 6mm LS-6020 lens

    Application

    • Security
    • High dynamic range imaging
    • Unattended surveillance
    • Stereo vision
    • Machine vision
    • Automation
