Arducam 16MP IMX298 USB Camera Autofocus Microphone Multi OS B0522
Arducam 16MP IMX298 USB Camera Autofocus Microphone Multi OS B0522
Arducam's new 16MP IMX298 USB 2.0 camera features a Sony 1/2.8" sensor with a max resolution of 4656x3496. It delivers clear images and accurate color reproduction, supporting AEB/AEC for optimal exposure.
Equipped with an autofocus motor lens, the camera supports automatic and manual focus, boasting an 85° FOV, <0.1% distortion, and 10cm MOD. Ideal for 3D printers and laser engravers, it also includes a digital mic for 1080P30 smooth video streaming.

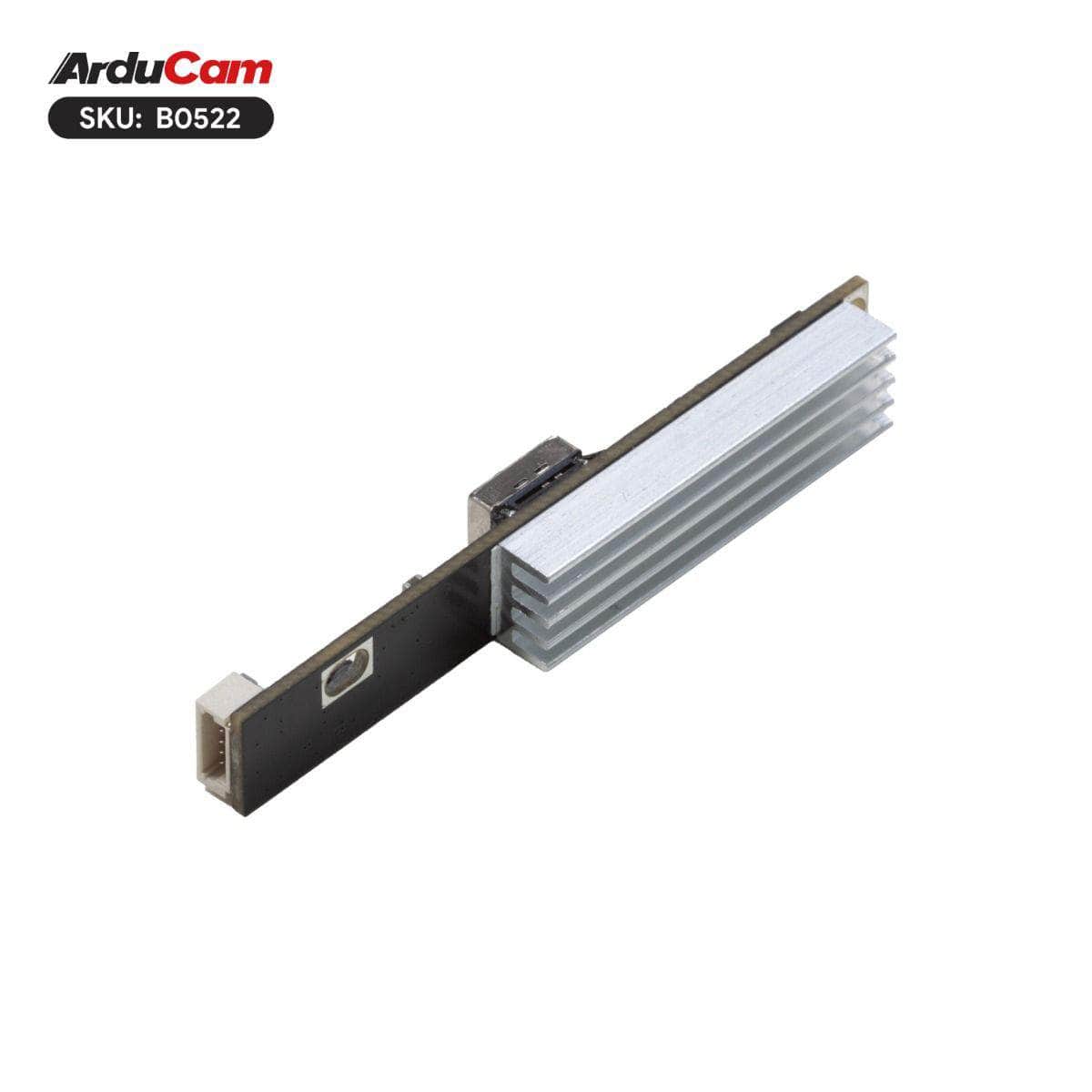

The compact, single-board design makes it perfect for integration into tablets, telepresence systems, document scanners, skin scanners, and access control systems. With plug-and-play functionality, it supports Hi-Speed USB 2.0 and works seamlessly with Windows and Linux without extra driver. To address potential overheating issues, we've included an aluminum heat sink for your convenience.
Applications
- Machine Vision
- Video Surveillance
- 3D Scanning and Metrology
- Live Streaming
- Video Conferencing
Features
- 16MP High-Quality Imaging: Featuring a 1/2.8-inch IMX298 CMOS sensor, this USB camera delivers clear images and accurate color reproduction. Capture impressive static images at a resolution of up to 4656x3496, with support for AEB (Auto Exposure Bracketing) and AEC (Auto Exposure Control).
- Ultra HD Video: This 16MP USB camera with a built-in digital microphone supports smooth 1080P30 video streaming, making it ideal for high-quality video and audio recording.

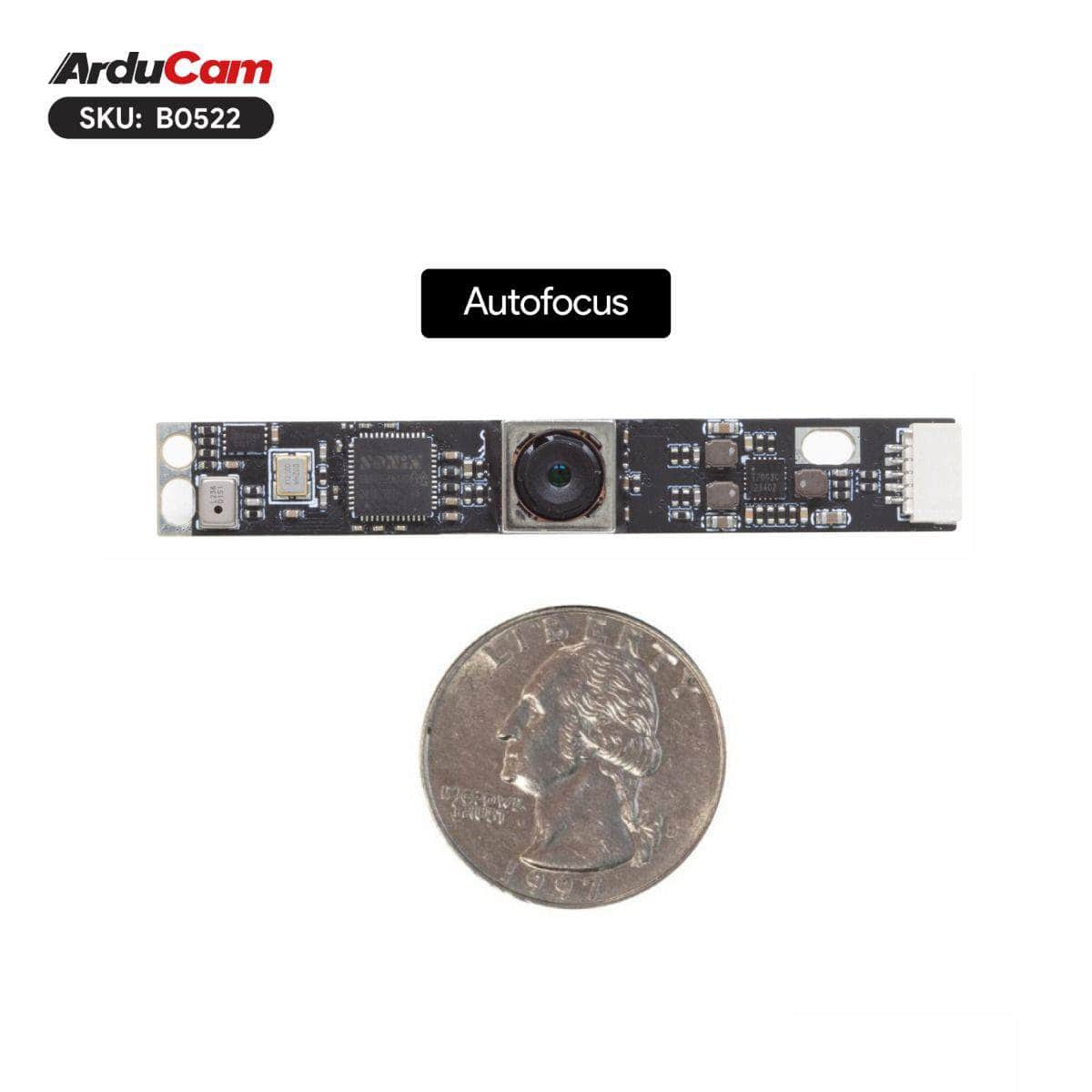

- Advanced Autofocus Lens: Equipped with a high-speed autofocus motor lens, it supports both automatic and manual focus adjustments. With an 85° FOV (Field of View), distortion＜0.1%, and a Minimum Object Distance (MOD) of 10cm, it's perfect for applications like 3D printing and laser engraving that require fast capture of moving objects.
- Versatile Integration: The compact single-board design makes this camera ideal for integration into various projects such as tablets, telepresence systems, document scanners/OCR readers, skin scanners, and access control systems. It offers high resolution, autofocus, and smooth video streaming to meet diverse project requirements.

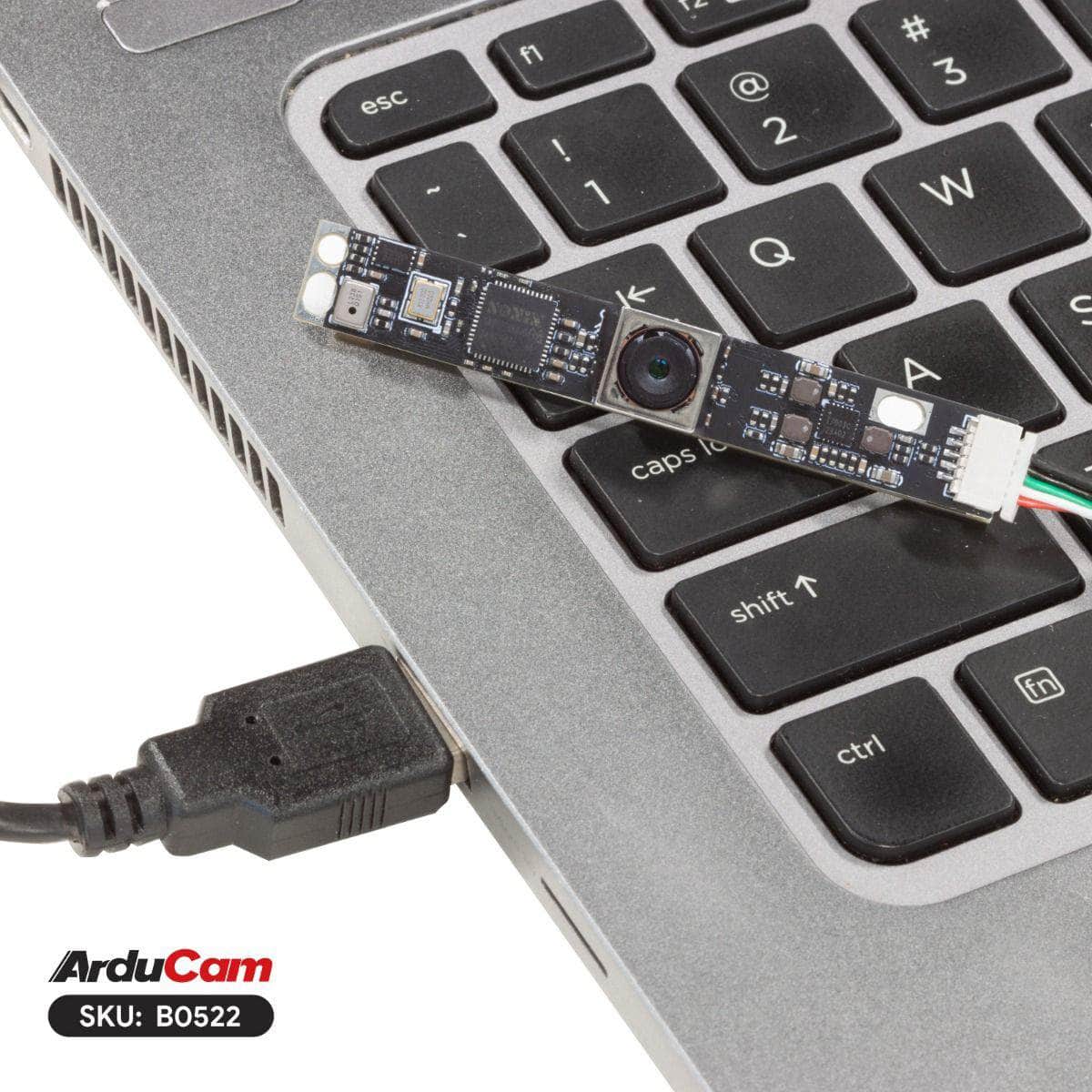

- Plug-and-Play: The 16MP camera is UVC-compliant and high-speed USB 2.0 compatible, seamlessly integrating with Windows and Linux operating systems using standard drivers, with no additional driver installation required.
Specifications
| Image Sensor | |
| Sensor | IMX298 |
| Still Resolution | 16 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/2.8" |
| Output Format | MJPG/YUY2 |
| Pixel Size | 1.12μm x 1.12μm |
| Sensor Active Area | 4656(H) x 3496(V) |
| Frame Rate (USB 2.0) | MJPG: 10fps@4656x3496/3264x2448/2592x1944, 30fps@2048x1536/1920x1080/1600x1200/1280x960/1280x720/800x600/640x480; YUY2: 1fps@4656x3496/3264x2448/2592x1944, 5fps@1920x1080/1600x1200/1280x960; 10fps@1280x720; 20fps@800x600; 30fps@640x480; |
| Lens | |
| Focus Type | Auto Focus |
| FOV | 85°(D)×72°(H)×57°(V) |
| Lens Mount | Stock Lens |
| F.NO | F2.0±5% |
| E.F.L | 3.43mm |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Default Focus Range | 10cm-∞ |
| USB Interface | |
| Interface | USB 2.0 Device |

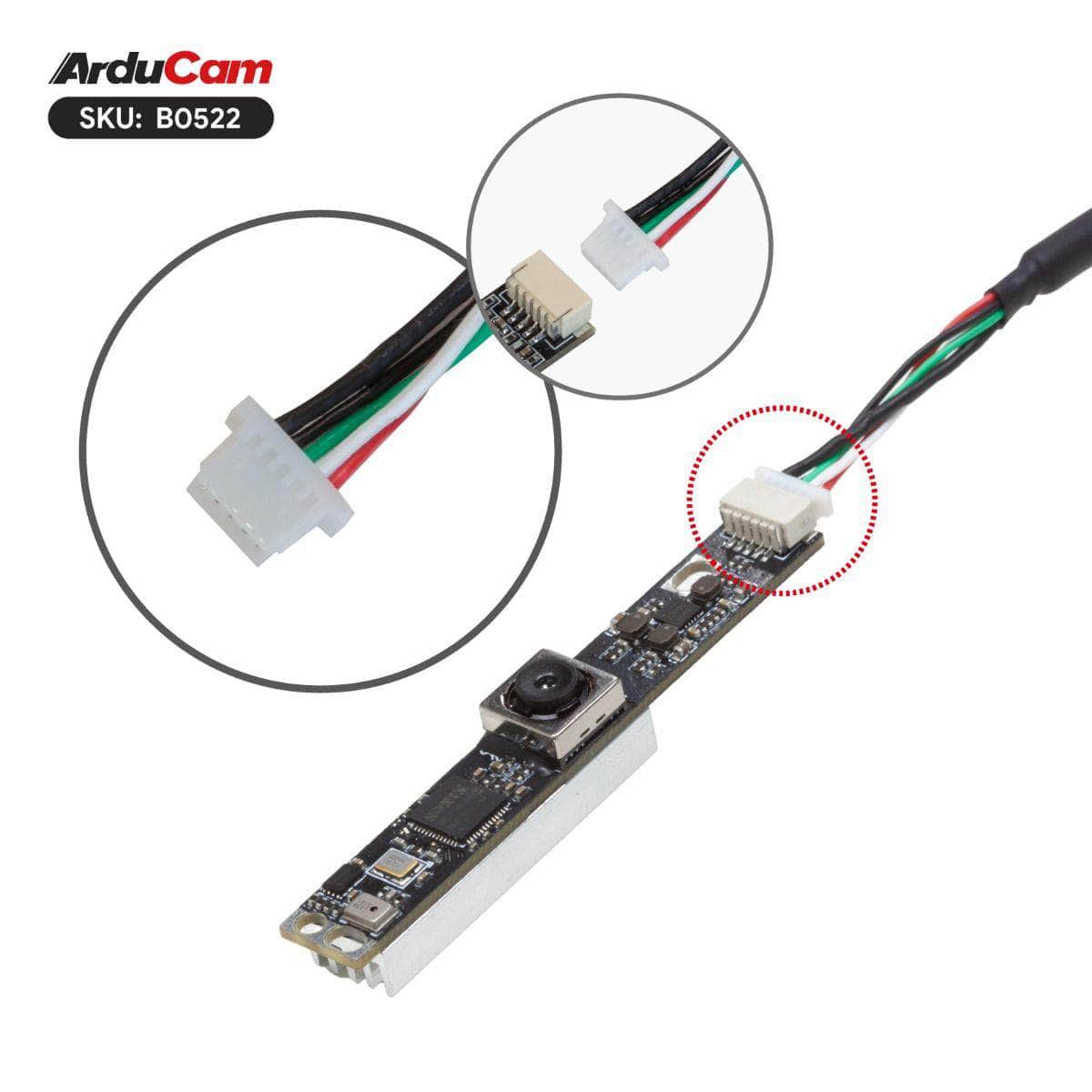

| Connector | B4B-ZR |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 1.2W |

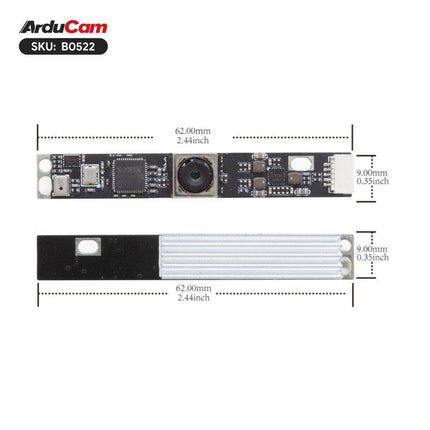

| Camera Board Size | 62x9x6.5mm |
| Functionality and Compatibility | |
| Audio | Single Microphone |
| Supported OS | Windows, Linux, Android and MAC OS |
| Recommend Sample Application | Amcap for Windows |
| UVC Controls | Brightness, Hue, Contrast, Saturation, Sharpness, Gamma, White Balance (Manual/Auto), Gain, Backlight Comp, Exposure (Manual/Auto), Focus(Manual/Auto) |

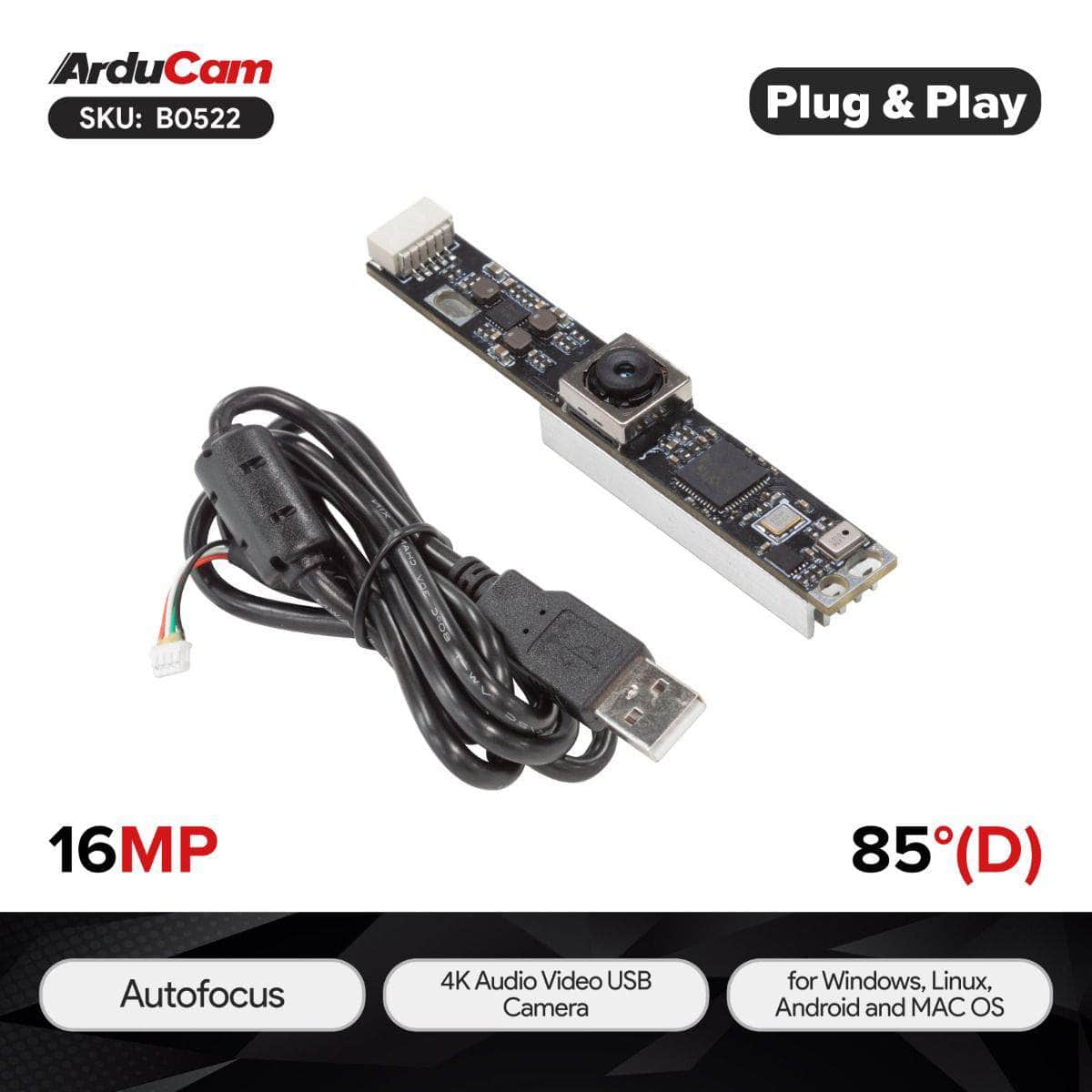

Package Including
- 1 x Arducam 16MP Camera Module
- 1 x USB Cable (1m)
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description
