Arducam NOIR 8MP Sony IMX219 Camera CS Lens 2718 for Raspberry Pi (B0153)

  • $129.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

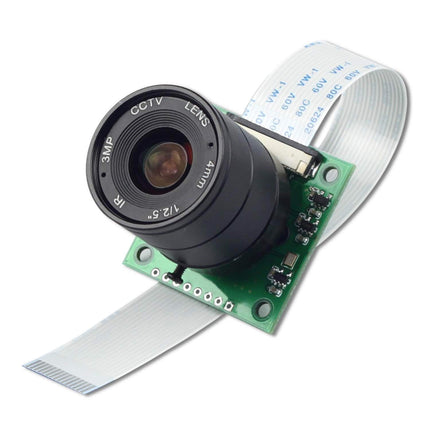

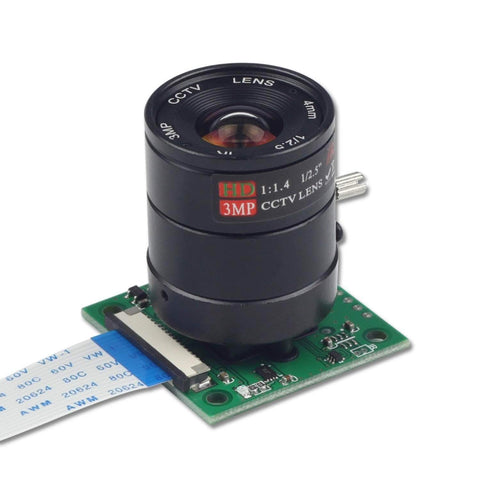

  • Arducam NOIR 8MP Sony IMX219 Camera CS Lens 2718 for Raspberry Pi (B0153)

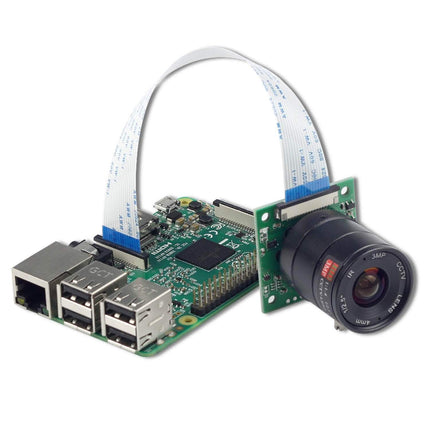

    ArduCAM team has released an 8MP Raspberry Pi compatible camera based on the same Sony IMX219 image sensor. It’s capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p90 video. It attaches to Pi by the dedicated standard CSi interface.

    It is supplementary for Raspberry Pi official camera in order to fulfill the demands for different lens mount, the field of view (FOV) and depth of the field (DOF), as well as the motorized IR, cut filter for both daylight and night vision.

    There is a wide range of lens options which can choose from Arducam.

    Features

    • Sensor type: Sony IMX219 Color CMOS 8-megapixel
    • Sensor size: 3.674 x 2.760 mm (1/4″ format)
    • Pixel Count: 3280 x 2464 (active pixels) 3296 x 2512 (total pixels)
    • Pixel Size: 1.12 x 1.12 um
    • Lens: CS mount customizable
    • Angle of View: Horizontal FOV 58 degree
    • Video: 1280×720 binned and cropped up to 60fps
    • 1080P cropped up to 30fps
    • 1640×1232 full FOV binned mode, up to 30fps
    • 3280×2464 full FOV, 0.1fps to 15fps

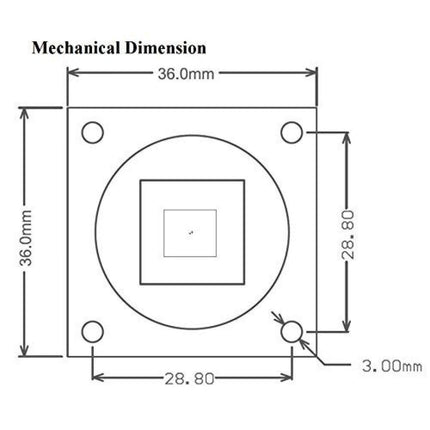

    • Board size: 36 x 36 mm
    • IR Sensitive: Sensitive to IR light

      More details

      Arducam Raspberry Pi Cameras

      Lens Options

      Lens Specs:
