Arducam OV7251 MIPI 0.31MP Monochrome Global Shutter Camera for Raspberry Pi (B0161)

Description



Arducam OV7251 MIPI 0.31MP Monochrome Global Shutter Camera for Raspberry Pi (B0161)

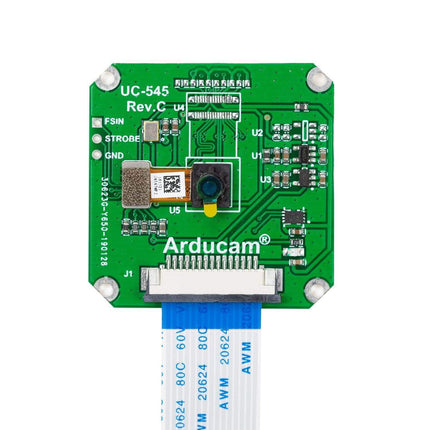

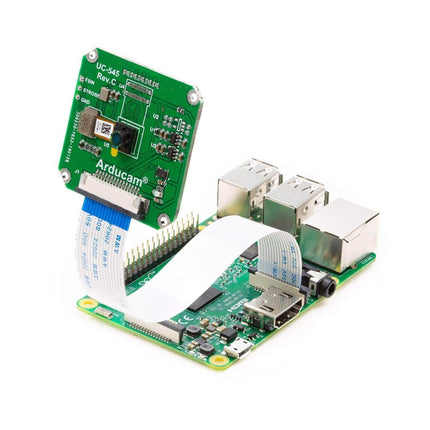

The Arducam monochrome (B&W) global shutter VGA resolution OV7251 MIPI camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware. This camera is based on a 1/7.5-inch Omnivision OV7251 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 100fps in VGA resolution with complete user control over image quality.
The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head and eye tracking, and depth and motion detection.

Note:

This camera and RPI driver doesn’t support ISP functions like AEC/AGC etc. and does not support hardware JPEG/H.264 encoding.

Key Specifications

  • Sensor: Monochrome global shutter OV7251
  • Pixel Size: 3 μm x 3 μm
  • Active array size: 640*480
  • Optical Size: 1/7.5 inch
  • EFL: 1.3
  • F.NO: 2.2
  • Built-in IR cut filter: 650nm
  • FOV: D86.5 Deg./H72.9 Deg./V57.7 Deg.
  • Focusing Range: 65mm ~ infinite
  • Output interface: 1-lane MIPI serial output
  • Output formats: 8/10-bit BW RAW
  • Maximum image transfer rate: 640 x 480: 100 fps
  • Board Size: 40mm x 40mm

Application

  • Cellular phones
  • Toys
  • Tablets
  • Machine vision
  • ARM/FPGA/DSP based platforms

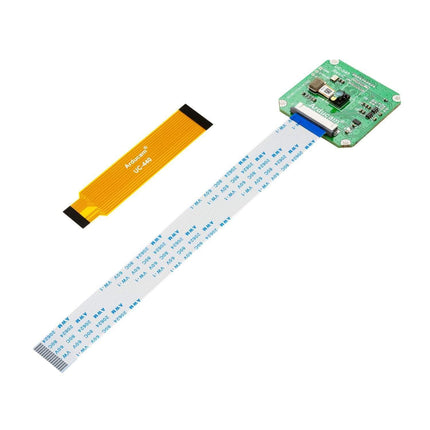

Package Including

  • 1 pcs Arducam OV7251 MIPI 0.31MP Monochrome Global Shutter Camera Module
  • 1 pcs 150mm 15pin 1.0mm FPC cable
  • 1 pcs 73mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable

Download



Arducam OV7251 MIPI 0.31MP Monochrome Global Shutter Camera for Raspberry Pi (B0161)

Product form
Free pickup in our shop(s)

SKU: B0161

$59.00 $39.00 Excl. GST

$39.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description



    Arducam OV7251 MIPI 0.31MP Monochrome Global Shutter Camera for Raspberry Pi (B0161)

    The Arducam monochrome (B&W) global shutter VGA resolution OV7251 MIPI camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware. This camera is based on a 1/7.5-inch Omnivision OV7251 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 100fps in VGA resolution with complete user control over image quality.
    The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head and eye tracking, and depth and motion detection.

    Note:

    This camera and RPI driver doesn’t support ISP functions like AEC/AGC etc. and does not support hardware JPEG/H.264 encoding.

    Key Specifications

    • Sensor: Monochrome global shutter OV7251
    • Pixel Size: 3 μm x 3 μm
    • Active array size: 640*480
    • Optical Size: 1/7.5 inch
    • EFL: 1.3
    • F.NO: 2.2
    • Built-in IR cut filter: 650nm
    • FOV: D86.5 Deg./H72.9 Deg./V57.7 Deg.
    • Focusing Range: 65mm ~ infinite
    • Output interface: 1-lane MIPI serial output
    • Output formats: 8/10-bit BW RAW
    • Maximum image transfer rate: 640 x 480: 100 fps
    • Board Size: 40mm x 40mm

    Application

    • Cellular phones
    • Toys
    • Tablets
    • Machine vision
    • ARM/FPGA/DSP based platforms

    Package Including

    • 1 pcs Arducam OV7251 MIPI 0.31MP Monochrome Global Shutter Camera Module
    • 1 pcs 150mm 15pin 1.0mm FPC cable
    • 1 pcs 73mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable

    Download
