B0200 Arducam 1080P IMX291 Low Light Wide Angle USB Camera Module with Microphone
B0200 Arducam 1080P IMX291 Low Light Wide Angle USB Camera Module with Microphone

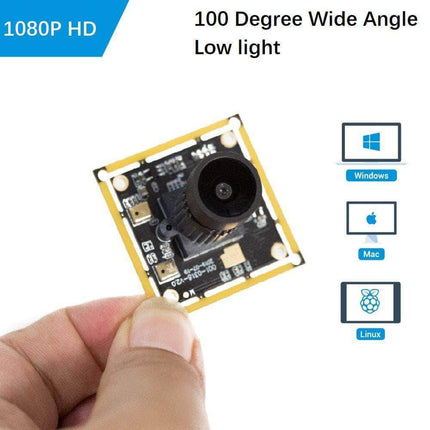

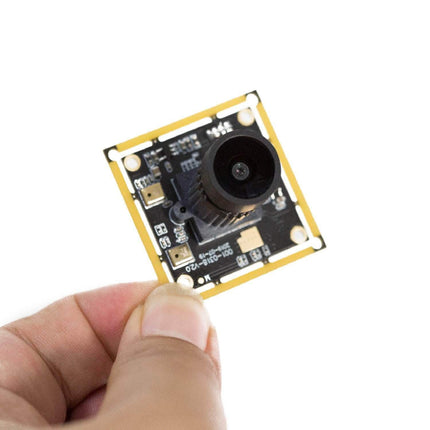

Arducam B0200 is a new member of the Arducam’s USB camera family. It’s a 2MP, based on the 1/2.8” Sony IMX291 image sensor, UVC compliant USB 2.0 camera.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

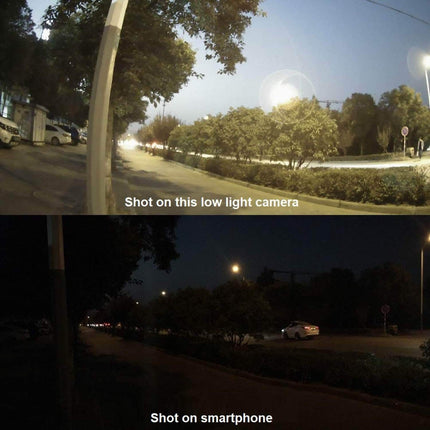

This SONY 2MP IMX291 colour COMS sensor produces the camera with an 80DB wide dynamic range, can capture the minimum illumination 0.001Lux, which gives you a wider angle of view and clearer visual joy for day and night.
- HD Resolution and Low Light: This camera adopts the SONY 2MP IMX291 Color COMS sensor with an 80DB wide dynamic range, can capture the minimum illumination 0.001Lux.
- Wide Angle: High quality 100-degree wide view angle (diagonal) M12 lens with IR filter.
- Capture Video with Audio: High frame rates, H.264 30fps@1920×1080; MJPG 30fps@1920×1080; YUY2 30fps@640x 480; Audio, dual stereo microphones.

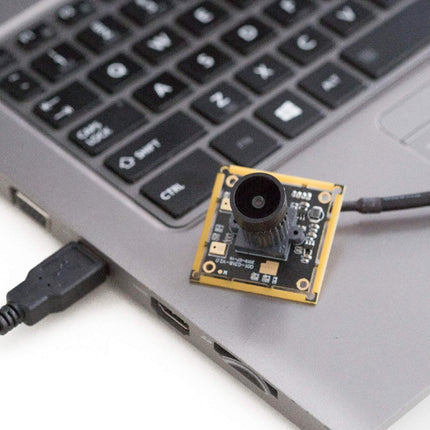

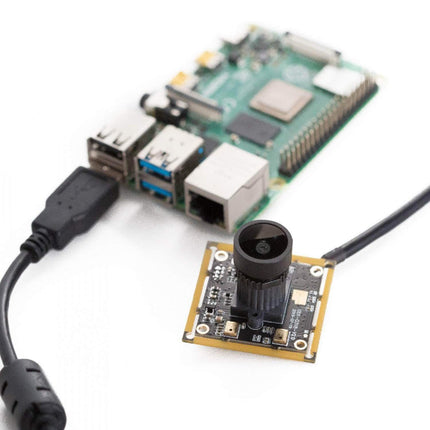

- Plug&Play: UVC-compliant, support Windows XP/7/8/10, Linux, and Mac OS, just connect the camera to PC, laptop or Raspberry Pi with the USB cable without extra drivers to be installed.
- Applications: this tiny camera board can be installed in the most hidden and narrow position for a home video surveillance system, day&night low light vision security camera system, dashcam or other machine vision application.
Applications:
- Video conference
- Home video surveillance system
- Day&night low light vision security camera system
- Dash cam
- Monitoring 3D printer
- Baby Camera
- Robot and machine vision
- ……
Features & Specs
Camera
- Sensor: 1/2.8” IMX291
- Resolution: 2MP 1945H x 1109V
- Data Format: MJPG/YUY2/H.264
- Frame Rate: H.264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360.
- Dynamic Range: 80DB
- Minimum Illumination: 0.001Lux
Lens
- Field of View (FOV):D= 100°
- Lens Mount: M12
- Focusing Range: 3.3ft (1M) to infinity
- IR Sensitivity: Integral IR filter, visible light only
Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: Dual microphones
- System Compatibility: Windows, Linux, and Mac with UVC (Android compatibility: contact us for support.)
Power
- Power Supply: USB powered 5V
- Working Current: MAX 300mA
Physical
- Operating Temp.: -4°F~167°F (-20°C~+75°C).

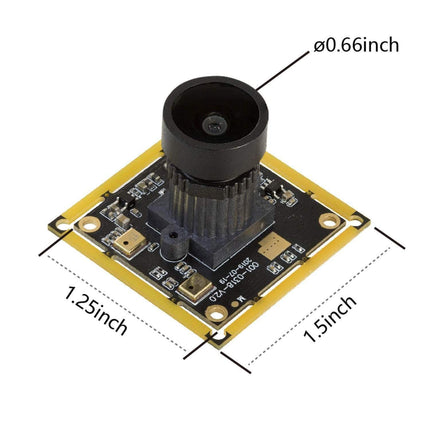

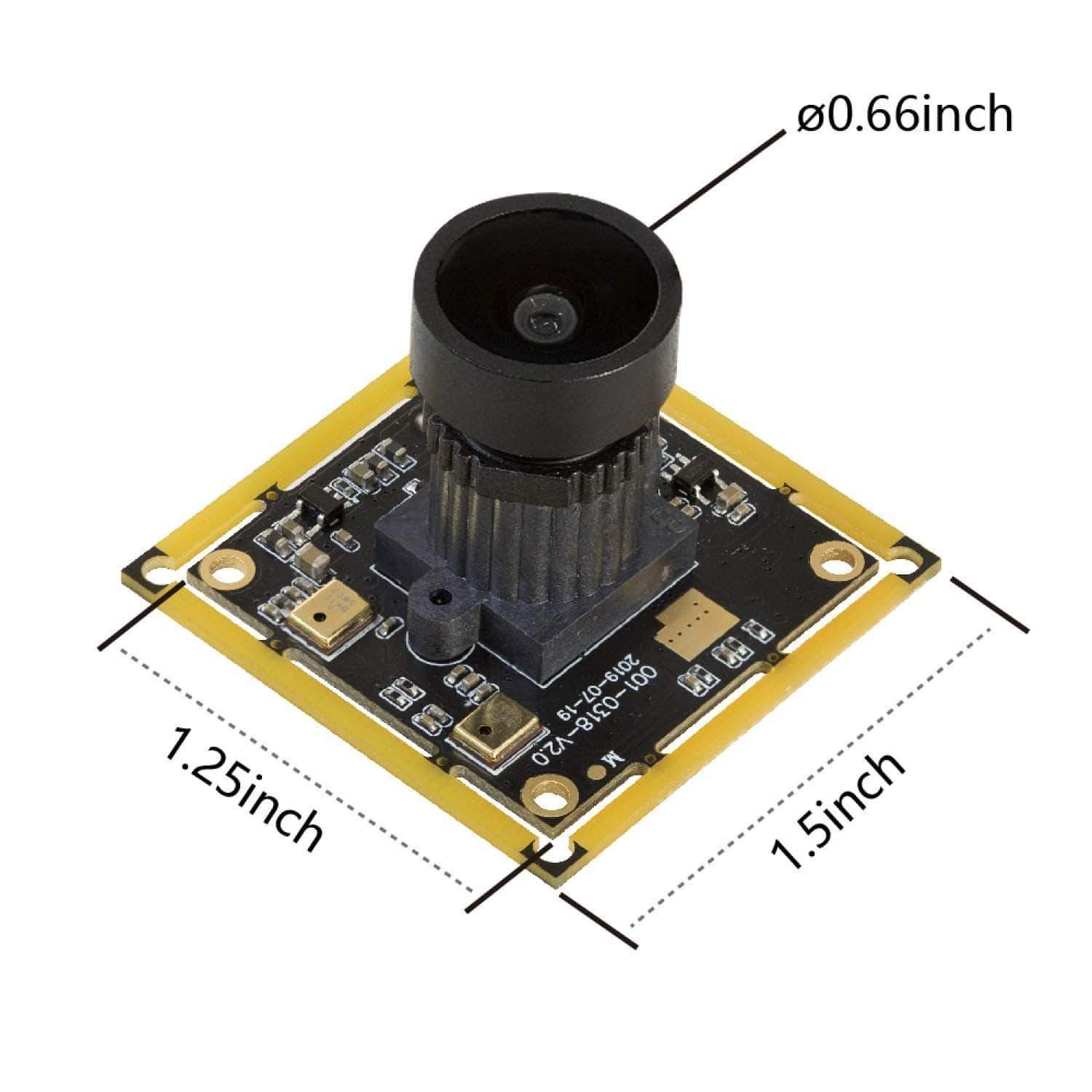

- Dimension: 36mmx36mm (Mount compatible with 28x28mm)
- Cable Length: 3.3ft (1M)
Package Contents

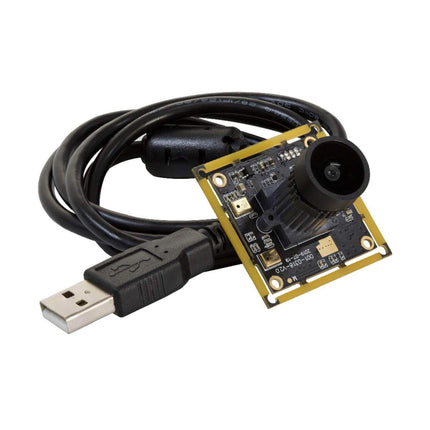

- 1 × 2MP IMX291 USB 2.0 camera board
- 1 × 3.3ft (1M) USB 2.0 cable
