B0201 Arducam 2MP 1080P Low Light Wide Angle USB Camera IMX291 with Microphone
B0201 Arducam 2MP 1080P Low Light Wide Angle USB Camera IMX291 with Microphone
The B0201 is a new member of the Arducam’s USB camera family. It’s a 2MP, UVC compliant, wide angle, low light, based on the 1/2.8” Sony IMX291 image sensor USB 2.0 camera.
Specifications
- Sensor: 1/2.8” IMX291
- Resolution: 2MP 1945H x 1109V
- Data Format: MJPG/YUY2/H.264
- Frame Rate: H.264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360.
- Dynamic Range: 80DB

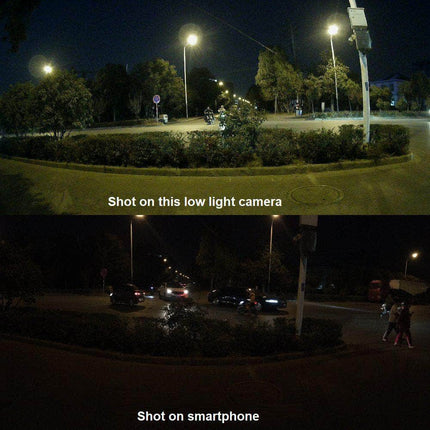

- Minimum Illumination: 0.001Lux
Lens
- Field of View (FOV)：D= 120°
- Lens Mount: M12
- Focusing Range: 3.3ft (1M) to infinity
- IR Sensitivity: Integral IR filter, visible light only
Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: Dual microphones

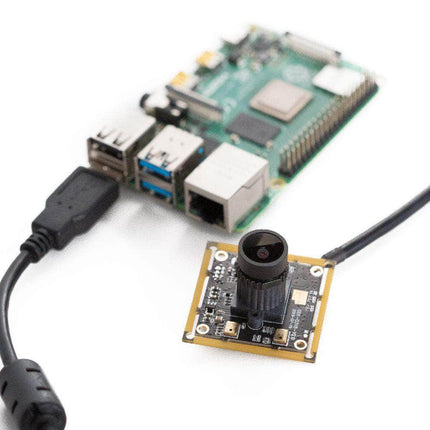

- System Compatibility: Windows, Linux, and Mac with UVC (Android compatibility: contact us for support.)
Power
- Power Supply: USB powered 5V
- Working Current: MAX 300mA
Physical
- Operating Temp.: -4°F~167°F (-20°C~+75°C).

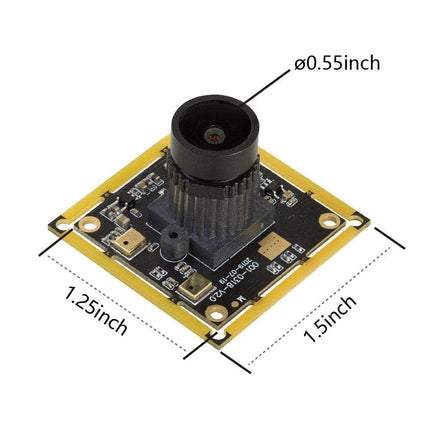

- Dimension: 36mmx36mm (Mount compatible with 28x28mm)

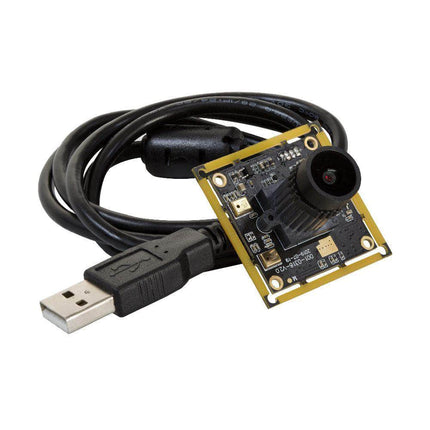

- Cable Length: 3.3ft (1M)
