Bluetooth BLE 4.0 Motor Driver Board Based on Arduino UNO

  • $30.00
  • Save $40
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes

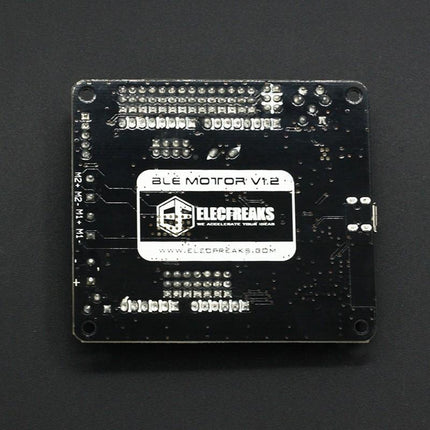

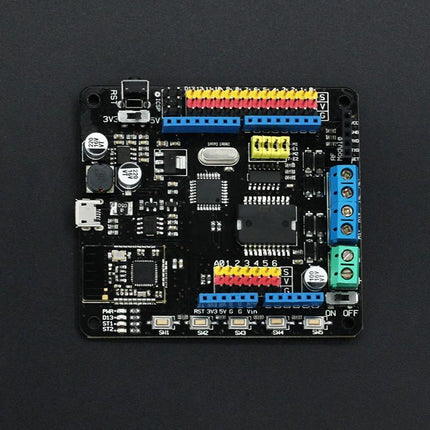

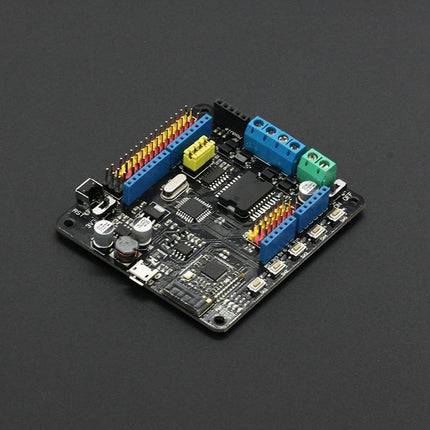

  • Bluetooth BLE 4.0 Motor Driver Board Based on Arduino UNO

    BLE Motor, abbreviated for BLE Bluetooth 4.0 Motor Driver Board Based on Arduino UNO, is a kind of motor driver board compatible with Arduino UNO. It has integrated BLE Bluetooth 4.0 module, MEGA328 Main Control and L298P motor driver chip. We can use it to drive a one-way stepping motor or two-way DC motor. BLE Motor has integrated a sensor port so that we can plug into all kinds of sensors. At the same time, it can support various Shield extensions because it has a port compatible with Arduino Shield. BLE Motor supports outer power supply device. It can realize 3.3V and 5V voltage switch(sensor voltage change with it too). It has a reserved RF connector (CC1101 UART module), which can support wireless control with further distance. Besides, it has 5 prepared undefined keys with functions all defined by users. A BLE Motor equals to an integration of “Arduino Uno+BLE module+Sensor Shield+L298P Motor Shield”. We integrate all these components with aims to avoid too many messy cables and instability it caused while the whole size is well controlled. The integrated BLE 4.0 makes us easier to connect it to mobile. It is a convenient development board for robots or intelligent cars.

    Component List:

    1 x USB Cable

    1 x BLE Bluetooth 4.0 Motor Driver Board Based on Arduino UNO



    Documents:

    ELECFREAKS BLE Motor User Guide

    BLE_Motor_V1.2_SCH.pdf

    74HC00_Datasheet.pdf

    L298P_Datasheet.pdf

    ATMEGA328_Datasheet.pdf

    MP2307_Datasheet.pdf

    Sketch_For_BLE_MOTOR

    Installation Information:

    usbser.sys

    serenum.sys

    mdmcpq.inf
