Contact us for high-quantity quotes.
Designed for mass production, the OEM-EC Circuit lets engineers add laboratory-grade conductivity measurements to any product. Because it can work with any off the shelf conductivity probe, you have the freedom to design a system that meets the needs of your customers without having to use expensive probes or connectors.

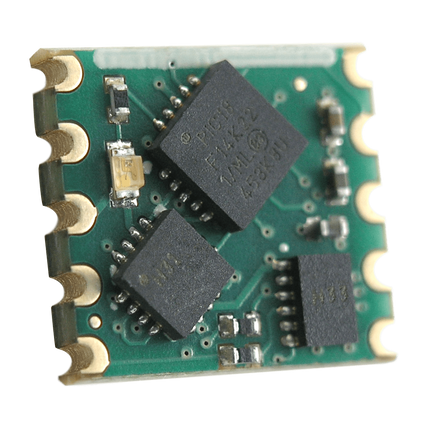

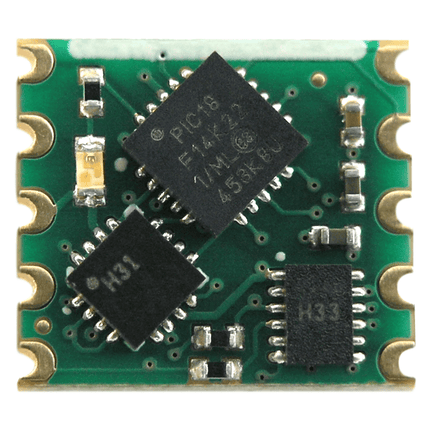

The Atlas Scientific EC OEM™ Class Embedded Conductivity Circuit is the core electronics needed to read the electrical conductivity of water from a wide range of conductivity probe types (K 0.01 to K 25). The EC OEM™ Embedded Conductivity Circuit will meet, or exceed the capabilities and accuracy found in all models of benchtop laboratory grade conductivity meters.
The EC OEM™ is an SMBus / I2 C slave device that communicates to a master device at a speed of 10 – 100 kHz. Read and write operations are done by accessing 36 different 8-bit registers. A user controllable LED and output pin can be used for debugging and interrupt signals.
• Conductivity
• Total dissolved solids
• Practical salinity units
• Full range from 0.07µS/cm to >500,000 µS/cm
• I2C / SMBus protocol
• Pick and placeable component
• Debugging or user controlled LED
• Output pin for user-controlled interrupt signalling
OEM Circuit Specs

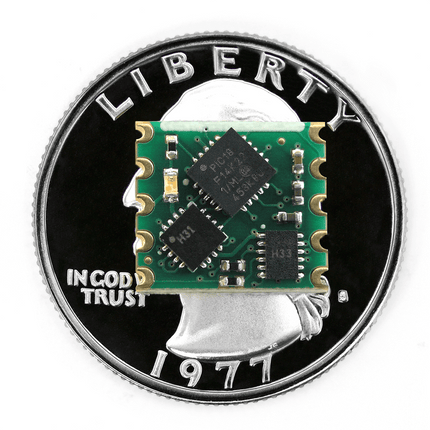

• Dimensions: 12mm x 11mm (0.47" x 0.43")
• Weight: 0.53 grams
