DC MOTOR 4 Click - MikroElektronika MAX14870 Motor Driver

  • $20.00
  • Save $10
  • (Exc. GST)

  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • DC MOTOR 4 Click - MikroElektronika MAX14870 Motor Driver

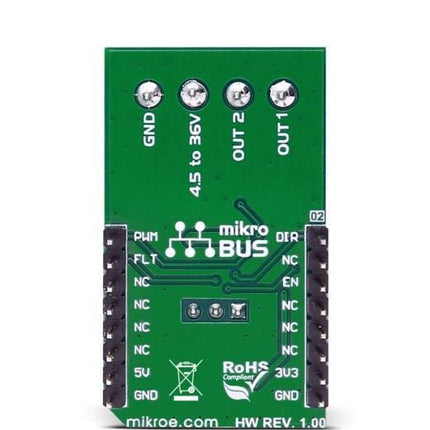

    DC MOTOR 4 click is capable of driving motors with a supply voltage from 4.5V to 36V. It carries the MAX14870 motor driver from Maxim Integrated. The click is designed to run on either 3.3V or 5V power supply. DC MOTOR 4 click communicates with the target MCU over the following pins on the mikroBUS™ line: PWM, AN, CS, and INT.

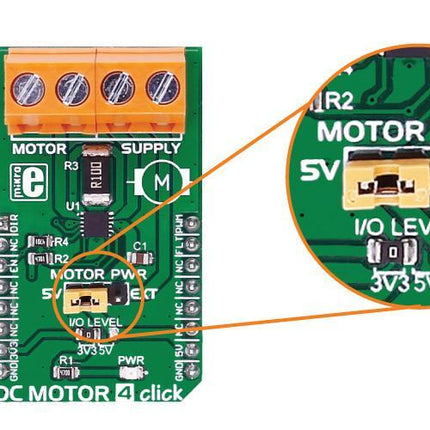

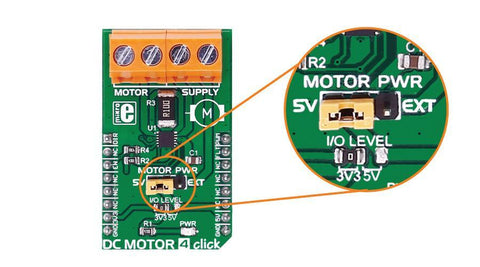

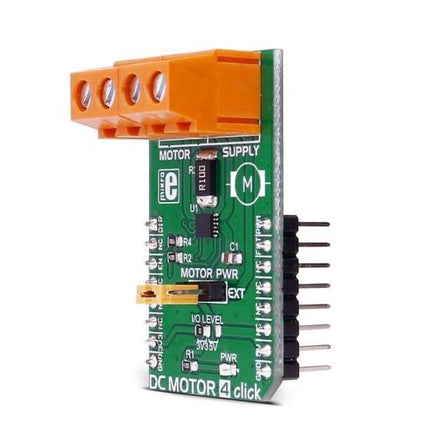

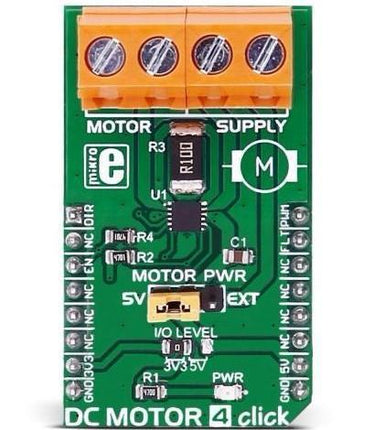

    The J2 jumper onboard the click is used for selecting a power supply - either the onboard 5V or the external DC motor power supply input.

    DC MOTOR 4 click can be used to driving DC motors, controlling the motor's speed, the direction of the rotation, as well to brake and regulate the current.

    MAX14870 driver features

    The MAX14870 motor driver offers a small, low power solution for driving and controlling brushed DC motors and relays with voltages between 4.5V and 36V.

    Very low driver on-resistance reduces power dissipation. It features a charge-pump-less design for reduced external components and low supply current.

    How the click works

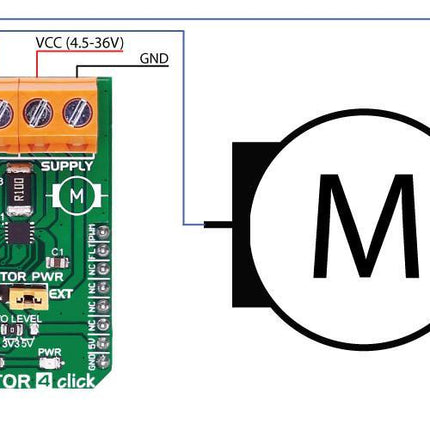

    There are two onboard screw terminals - one is for connecting the DC motor, and the other one is for connecting an external source if necessary. The DC motor is controlled through PWM, CS and AN pin of the click board.


    Type DC
    On-board modules MAX14870 motor driver
    Key Features The click is capable of driving motors between 4.5V and 36V
    Interface GPIO,PWM
    Power Supply 3.3V,5V
    Click board size M (42.9 x 25.4 mm)
