DC MOTOR click - MikroElektronika H-Bridge Motor Driver

  • $20.00
  • Save $20
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • DC MOTOR click - MikroElektronika H-Bridge Motor Driver

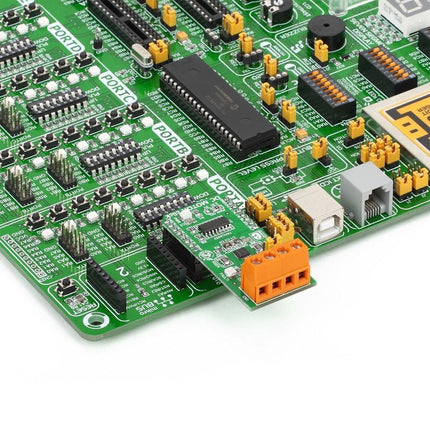

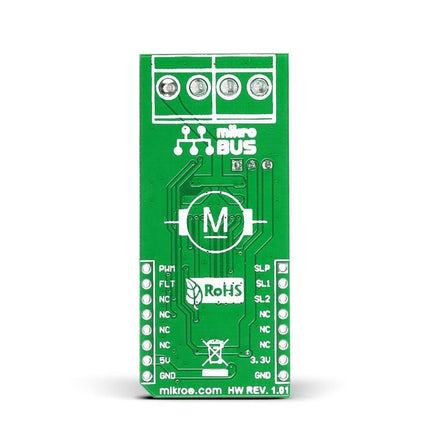

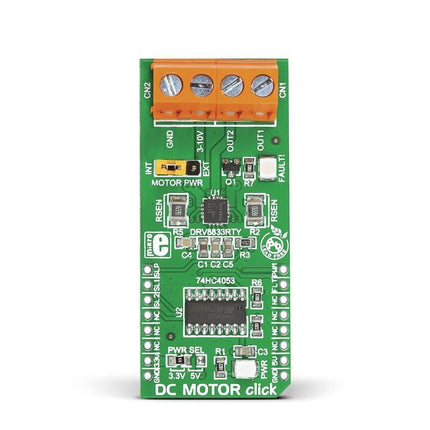

    DC MOTOR click is a DC motor driver board in mikroBUS form factor. It features the DRV8833RTYH-Bridge motor driver, 74HC4053 multiplexer and two screw terminals. The 74HC4053 IC is incorporated into the design in order to run the motor with only one PWM line available on the mikroBUS™ socket. DC MOTOR click communicates with the target board via SELECT1, SELECT2 and nSLEEP control lines, PWM input line and nFAULT feedback line. The board is designed to use 3.3V or 5V power supplies. It can be powered either from the mikroBUS socket or externally through CN2 terminals. It is limited to a 0.9A driving current with 0.22O current sense resistor. The motor is connected to CN1 screw terminal.




    Type DC
    Applications Board is designed as a full H-bridge driver for the DC motor
    On-board modules DRV8833RTY H-Bridge motor driver, 74HC4053 multiplexer and two screw terminals
    Key Features RED LED indicates active nFAULT line (in case of short-circuit). Full H-bridge driven by a single PWM signal
    Key Benefits Can be powered externally through CN2 terminals
    Interface GPIO,PWM
    Input Voltage 3.3V or 5V
    Compatibility mikroBUS

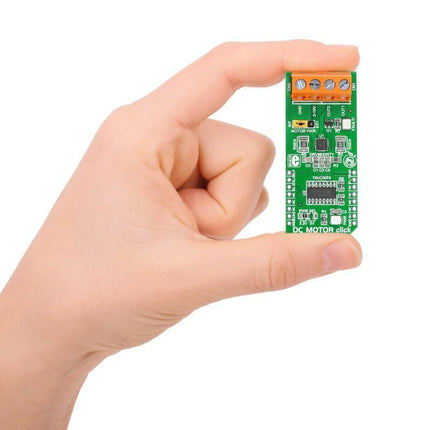

    Click board size L (57.15 x 25.4 mm)
