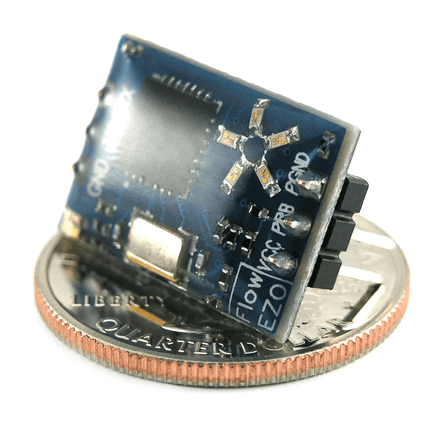

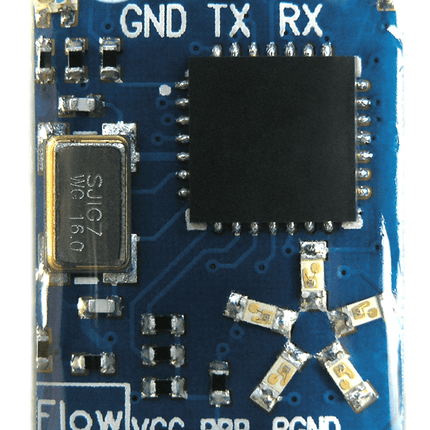

EZO™ Universal Flow Meter Totalizer - Atlas Scientific

  • $80.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • EZO™ Universal Flow Meter Totalizer - Atlas Scientific

    • Reads flow rate per second, minute, hour and total flow.
    • Works with any off the shelf pulsed DC flow meter regardless
       of manufacture
    • Works with any DC pulse per volume flow meter
    • Works with any DC pulse frequency to volume flow meter
    • Programmable with up to 16 integer or floating point K factors
    • On the fly linear interpretation between K factors
      for maximum accuracy
    • Visual display indicating real-time turbine rotation
    • 1K, 10k or 100k on-board pull-up or pull-down resistors
      (for flow meters that require external pull-up or pull-down)
    • Comes pre-programmed with 4 different Atlas Scientific
       flow meters
    • Data format is ASCII

    Data protocol
    • UART asynchronous serial connectivity
    • (RX/TX voltage swing 0-VCC)
    • Operating voltage: 3.3V to 5

    Sleep mode power consumption
    • 2.1mA at 3.3V

    Circuit Specs
    • Dimensions: 14.02mm x 20.33mm (0.55" x 0.80")
    • Weight: 1.76 grams
