Gigabit PoE Splitter - Micro USB Power Supply & Gigabit Ethernet

  • $45.00
  • Save $10
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

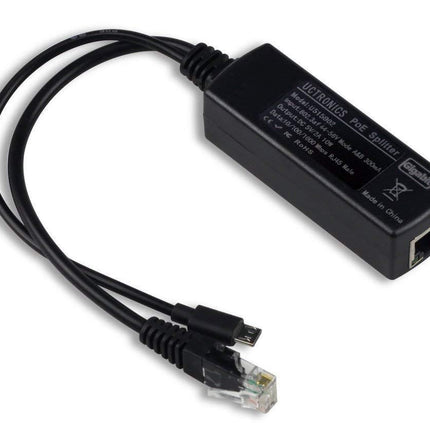

  • Gigabit PoE Splitter - Micro USB Power Supply & Gigabit Ethernet

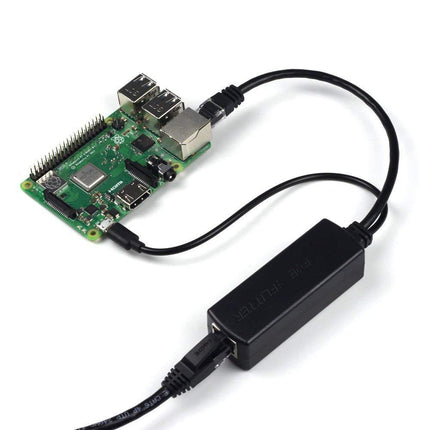

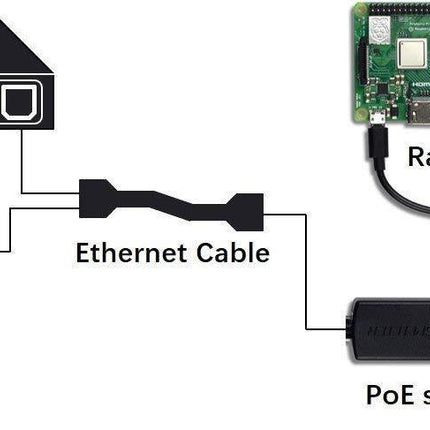

    This gigabit PoE splitter is used to supply power and transfer data to micro USB devices like RPi 3 B+ via a single Ethernet cable with the help of an IEEE 802.3af compliant switch or injector. You don't need a separate power supply anymore. It uses no GPIO pins and is thus compatible with any RPi 3 B+ case with a fan or add-on RPi 3 B+ screen. It has plug-and-play compatibility with RPi 3 B+ and makes it easier for deployment, operation and maintenance in embedded and IoT projects.

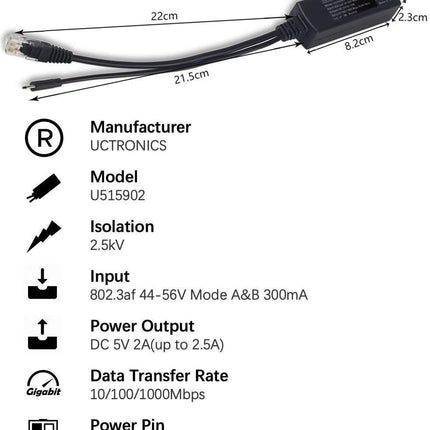

    Specifications

    Compliant with IEEE 802.3af
    Isolation: 2.5kV
    Input: 802.3af 44-56V Mode A&B 300mA
    Power Output: DC 5V/2A(up to 2.5A) 10W
    Data Transfer rate: 10/100/1000 Mbps
    Devices will be detected before PoE input
    Power Pin: support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)

    • 5V/2.4A & 1000Mbps - Power micro-USB devices via an Ethernet cable, along with gigabit data transfer (which you can put aside if you only need power)

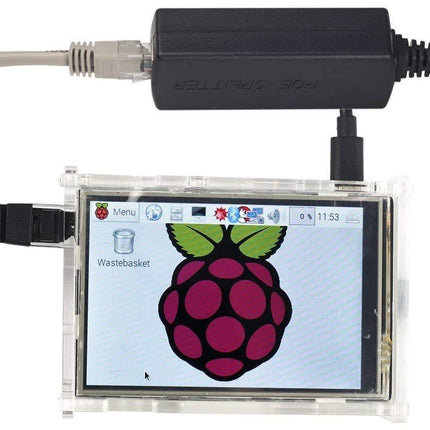

    • PoE HAT Alternative - Use no GPIO pins. Compatible with Raspberry Pi case with fan or add-on screen. Support Raspberry Pi 3b+ and previous models

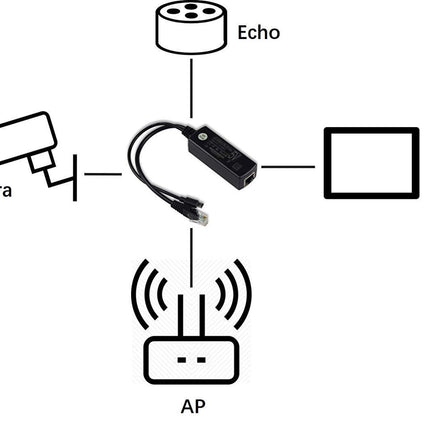

    • Extend Powerline - Deliver power to micro USB devices without nearby AC outlets and upgrade them to PoE (Power over Ethernet) from up to 400 feet
    • Replace Power Supply - Remove the need for a separate power supply if the Ethernet cable is a must-have for your micro USB devices
    • Save Your Time - Plug and play compatibility and quick seller response. NOTE: an 802.3af compliant PoE injector/switch is required to use this device (not included)
