Cytron IO Boards IFC - Analog Input Card - IFC-AI08

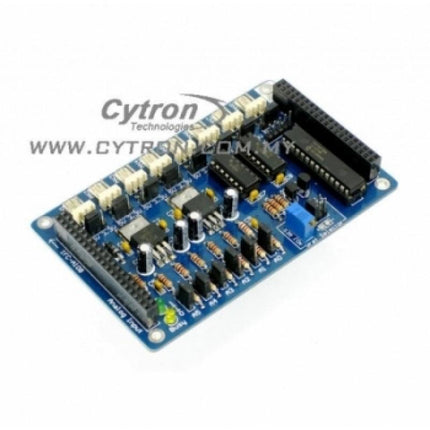

IFC - Analog Input Card - IFC-AI08

  • $35.00
  • Save $35
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • IFC - Analog Input Card - IFC-AI08

    Reading Sharp IR Distance Sensor, MaxBotix Ultrasonic, Accelerometer, Gyro or any analog output device will be easy, fast and fun. Let's try it today.

    IFC-AI08 is an easy to use analog input card. It can be stacked on IFC system as one of the input card. Reading analog voltage will be as easy as 1, 2, 3. It provides 8 channels of analog input. It offers simple and fast using of analog input since it can be stacked to get more analog input port. Library function offer waving of analog port configuration and complex step in reading analog voltage.

    Features:
    • Circuit power and busy indicator LED
    • 6 set of 1 x 3 header for communication address
    • 8 analog input ports
    • 5V or 3.3V selectable power voltage for various type of sensor
    • Selectable sampling rate and average rate for every analog channel independently
    • Software configurable 10bit or 8bit analog resolution
    • Maximum of 64 analog cards can be stacked
    • Selectable Vref (3.3V, 5V or adjustable Vref)
    • Come with sample code and template to start.
    IFC-AI08 come with:
    • 1 x Industrial grade PCB with all components soldered properly
    • 15 x Mini Jumper
    • 8 x female connector (2510-03) for analog port
    • 24 x Iron pin (2511)

    Dimension:11.1cm x 6.9cm

    Description Date Added Size Action
    User's Manual 22/08/2017 N/A Download
    AI08 Schematic 22/08/2017 N/A Download
    Sample Source Code 22/08/2017 N/A Download
    Library Functions 22/08/2017 N/A Download
