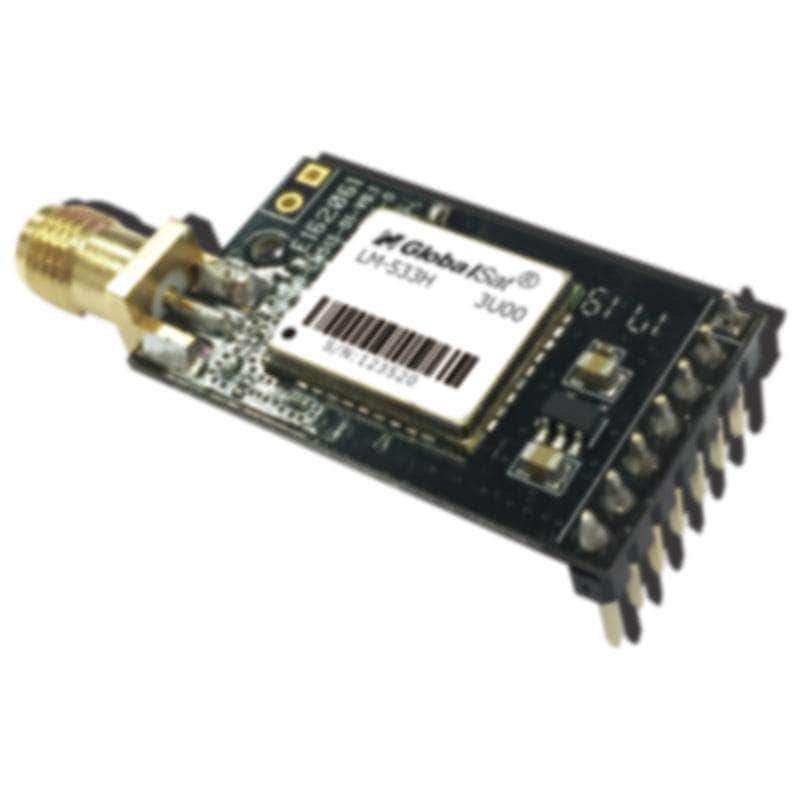

LM-513H Globalsat LoRaWAN Module Dual-mode RF Pin Header

  • $29.00
  • Save $30
  • (Exc. GST)


  • Out of Stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • LM-513H Globalsat LoRaWAN Module Dual-mode RF Pin Header

    The GlobalSat LM-513H is a pin header type RF module that based on LoRa® technology which provides long-range, low data rate IoT connectivity to sensors, electronic meter reading, geolocation devices, industrial monitoring and control, home and building automation, long-range irrigation systems, and all kinds of IoT/ M2M equipment. It can work as the end-node devices in the LoRaWANTM infrastructure or in GlobalSat proprietary ecosystem (MOST-Link).

    Features

    • Built-in standard LoRaWAN™ FW and proprietary MOST-Link FW in the same module
    • Share same PCB/ device design for both LoRaWAN™ and private RF data communication
    • Ultra-high sensitive receiving ability by LoRa® spread spectrum modulation technology
    • Long-distance transmission (1KM to 10KM)
    • Instant wake up over the air
    • LoRa®/ FSK/ GFSK/ OOK modulation, 2-way half-duplex communication, strong anti-interfere
    • Maximal output power 100 mW (20 dBm), output power adjustable between 5-20 dBm
    • Easily use, auto exchange on communication & transceiver
    • Tuning free
    • Accord FCC, ETSI, TELEC standard

    Specifications

    LoRa® Module GlobalSat Dual-mode LoRa® Module LM-513H
    Frequency 863-870MHz (EU)
    902-928MHz (US)
    920-928MHz (ROA)
    Transmission Power 862-870MHz (EU) @ 14 dBm
    902-928MHz (US) @ 20 dBm
    920-928MHz (ROA) @ 20 dBm
    Transmission Media UART
    UART Baud Rate: 57600 bps
    Parity: 8N1
    Operation Voltage 3 ~ 6 V
    Current Consumption Receiving: 18.2 mA (typical)
    Transmitting: 125 mA (typical)
    Sleeping: 2 uA (typical)
    Transmission Distance LoRaWAN™: 1KM~10KM @ 980 bps
    MOST-Link: 1KM~10KM @ 0.81 Kbps
    Receiving Sensitivity LoRaWAN™: -132 dBm @ 980 bps
    MOST-Link: -132 dBm @ 0.81 Kbps
    Operation Temperature -40°~ 85°C
    Humidity 5~95% (Non-condensing)
    Dimension 30 x 18 ± 0.2 mm (PCBA)
    Connector PIN type, pitch 2.54 ± 0.1 mm



    LM-513H Product Specifications



    Uses the Globalsat LM-533H LoRaWAN modules, Please check this LINK for further information.
