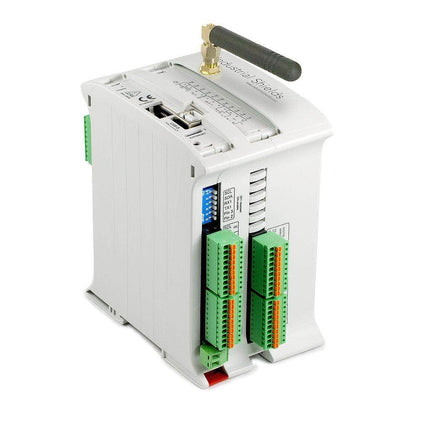

M-DUINO PLC ARDUINO ETHERNET & LoRa 915MHz 21+ I/Os ANALOG/DIGITAL PLUS - Open Industrial PLC
M-DUINO PLC ARDUINO ETHERNET & LoRa 915MHz 21+ I/Os ANALOG/DIGITAL PLUS - Open Industrial PLC
Get into Industrial Internet of Things with Industrial Shields PLC's, All Equipped with Original Arduino Boards and LoRa communication
RTC, µSD, Ethernet, LoRa, USB-B, Full/Half Duplex RS485, RS232, I2C, Modbus
-
12 Inputs (7 to 24Vdc):
(6x) Analog (0-10Vdc) / Digital (7-24Vdc) configurable by software.
(6x) Digital Isolated (7-24Vdc). -
8 Outputs (5 to 24Vdc):
(8x) Digital Isolated (5-24Vdc) / (3 of which) PWM Isolated
(3 of which) Analog (0-10Vdc) configurable by the switch. - Arduino Mega microcontroller included
- Offers immense safety through Industrial Communication mechanism
- Compact design with DIN rail mounting
This is the first equipment based on the Arduino technology designed for professional use. This PLC has 21I/Os. It also contains several communication ports which provide more flexibility and control. The M-DUINO family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…
Programming Software
This PLC can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.
Instantaneous connection and coding
The PLC M-DUINO is programmed through the USB ports. This PLC can also be programmed through Ethernet port remotely. This offers immediate access to the program, maintain and control. Also, you can continuously monitor the status of all the variables, inputs, outputs, etc. It is compatible with the Arbosx and the Touchberry Pi with the instantaneous connection.
Communications
– (1x) Ethernet port.
- (1x) LoRa 915Mhz
– (1x) USB port (type B).
– (1x) I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)
– (3x) TTL ports.
– (1x) RS-232 port.
– (1x) HALF/FULL Duplex RS-485 port.
– (1x) SPI external port (Using MOSI, MISO, SS pins of Arduino)
– TCP IP / Modbus TCP. / Modbus RTU
– WebServer capacity
– Industrial Protocols
Other technical specifications
- RTC (Real Time Clock. NOTE: I2C port used. See pinout modification)
- µSD Socket (using SPI port, chip select D53 pin).
- 100x75x115mm
- DIN-Rail mounting.
- Max consumption: 1.2A
- Flash Memory: 256kB (8kB for bootloader)
- SRAM: 8kB
- EEPROM: 4kB
- Clock Speed: 16MHz
Documentations
⬇️ M-Duino 21+LoRa_User_Guide.pdf
⬇️ 202107_DataSheet_M-Duino_21_+LoRa.pdf
⬇️ CE - LoRa PLC Family.pdf
