Milesight IOT (Ursalink) LoRaWAN Milesight EM300-MCS LoRaWAN Magnetic Contact Switch

Milesight EM300-MCS LoRaWAN Magnetic Contact Switch

  • $129.00
  • Save $30
  • (Exc. GST)


  • In stock with a short lead time. Ship in 2-4 weeks.

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Resellers & Large Orders
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

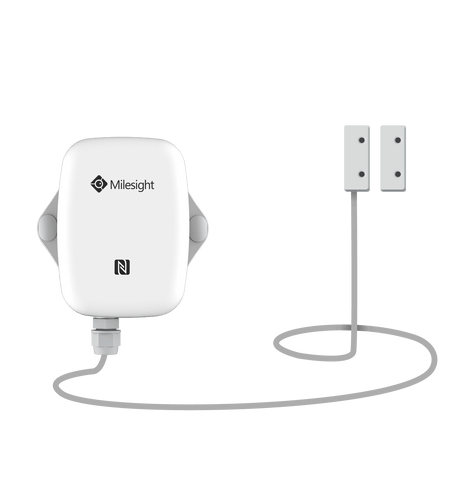

    Milesight EM300-MCS LoRaWAN Magnetic Contact Switch

    The EM300-MCS can be mounted to any door or window to detect an opening or closing event. It adds physical security monitoring to your location by alarming for intrusion or unauthorized entry to your monitored conditions.

    Combining with LoRaWAN® gateway and IoT Cloud solution, users can manage all sensor data remotely and visually.

    EM300-MCS is widely used for both indoor and outdoor applications such as offices, hospitals, factories, greenhouses, etc.

    • Security Alarm for Door Opening
    • Temperature Range -30°C to + 70°C
    • Humidity Range 0% ~ 100% RH
    • Shock-resistant and Vibration-resistant
    • IP67, Weather and Waterproof
    • LoRaWAN Wireless Transmission with ultra-low power consumption and easy deployment
    • Built-in 4000 mAh high-capacity battery can be used for 5-10 years.
    • NFC enabled
    • Easy Installation

    Specifications

    LoRaWAN® Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
    Tx Power 17dBm (470) / 16dBm (868) / 20dBm (915)
    Sensitivity -147dBm @300bps
    Mode OTAA/ABP Class A
    Sensing Lead Cable 1007UL #22AWG 260mm
    Type Normally closed
    Distance of magnets 20-30mm
    Distance of holes 22mm
    Temperature Measuring Range -30°C to+70°C
    Accuracy 0~70°C: ±0.3°C
    -30~O°C: ±0.6°C
    Resolution 0.1°C
    Humidity Measuring Range 0%~100% RH
    Accuracy ±3%(10~90%RH)
    ±5%(Other ranges)
    Resolution 0.10%
    Physical Characteristics Power Supply 18505 Li-SOCL12 4000mA ( 8000mA optional)
    Battery Life ≧ 5 years ( for 1 battery)
    Operating Temperature -40°C to 70°C
    Ingress Protection IP67
    Dimension 88 × 87 × 27 mm
    Mounting Wall (screws or 3M adhesives)

    Documentations:

    EM300 Series LoRaWAN Sensors

    EM300-MCS Datasheet
