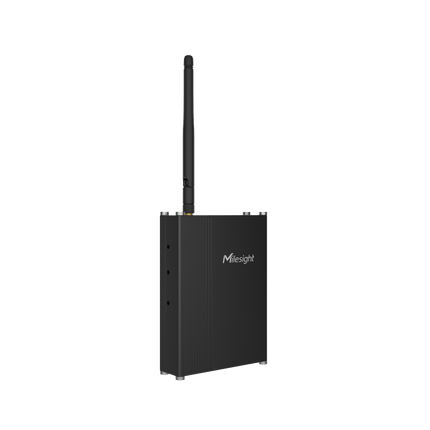

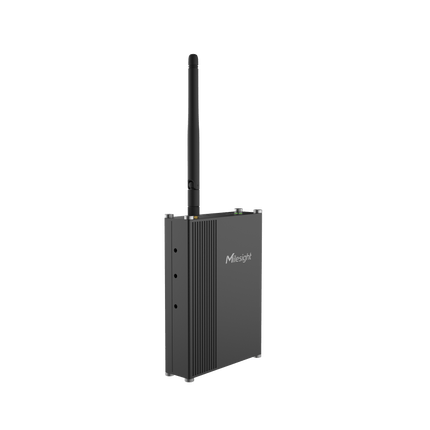

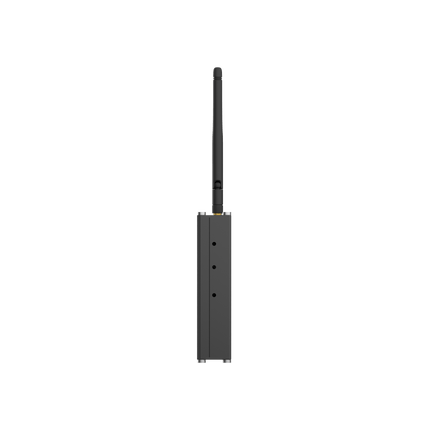

Milesight UC300 Industrial IoT Controller LoRaWAN/Cellular

  • $199.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

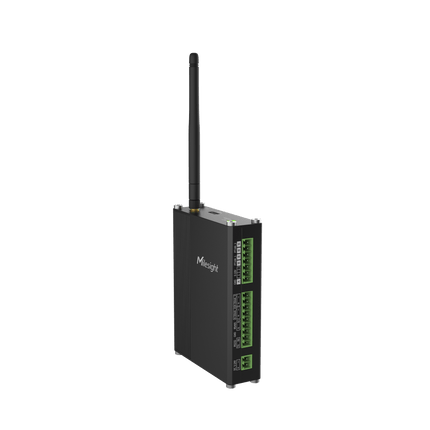

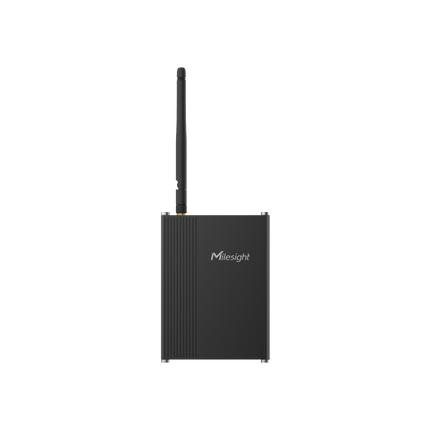

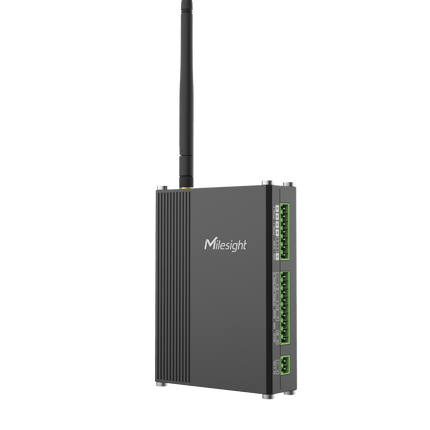

    Milesight UC300 Industrial IoT Controller LoRaWAN/Cellular

    UC300 is an IoT controller used for remote control and data acquisition from multiple s sensors. It contains different I/O interfaces such as analog inputs, digital inputs, relay outputs, serial ports, and more, which support remote device data transmission and control via LoRaWAN®, 3G/4G networks or SMS. Besides, UC300 supports multiple trigger conditions and actions which work autonomously even when the network drops.

    Temperature Transmitter

    Besides the 4~20 mA & 0~10 V type analog interfaces, the UC300 firstly adopts 2 RTD inputs for accepting and converting 2/3 wires PT100 sensors‘ resistance signal into 4-20 mA current signal with a range from -200°C to 800°C.

    Intelligent Trigger System

    Users are able to set up 16 commands based on custom trigger conditions & actions to realize intelligent tasks like timing data collection.

    Autonomous Operation

    Milesight UC300 IoT controller can execute the commands autonomously even when the network is unavailable.

    Flexible Cloud Integration

    Support TCP/UDP/MQTT protocol, UC300 IoT controller is compatible with multiple cloud platforms such as AWS (for cellular version only) and Milesight IoT Cloud.

    LoRaWAN® & 4G LTE

    The UC300 IoT Controller supports global LoRaWAN® frequency plans or 4G LTE as backhaul connectivity to meet different projects.

    Specifications:

    Wireless Transmission
    Technology LoRaWAN®or 3G/4G (Hardware Optional)
    LoRaWAN® US915/AU915/KR920/AS923
    OTAA/ABP Class C
    Cellular 1 (Micro SIM-3FF)
    TCP/UDP/MQTT/AWS/ONENet/Milesight IoT Cloud/SMS Application Mode
    Data Interfaces
    Interface Type 3.5 mm Terminal Block

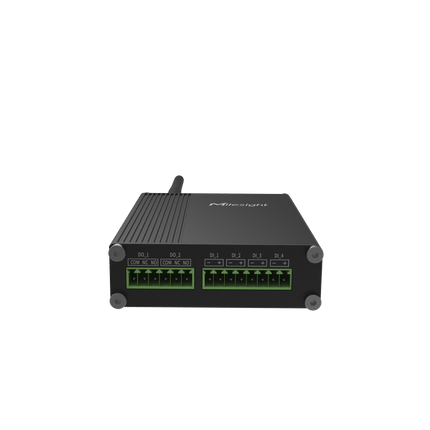

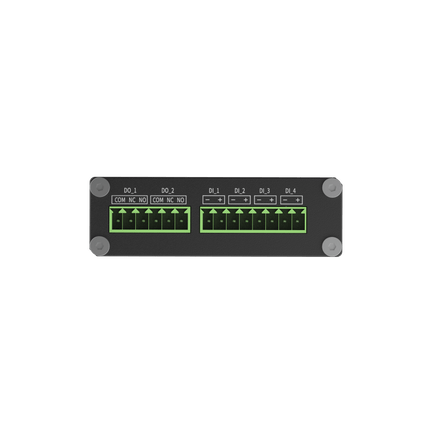

    GPIO 4 × DI + 2 × DO
    Serial Port 1 × RS232 + 1 × RS485
    Analog Input 2 × 4~20 mA, 2 × 0~10 V, 2 × PT100 RTD Input
    Others

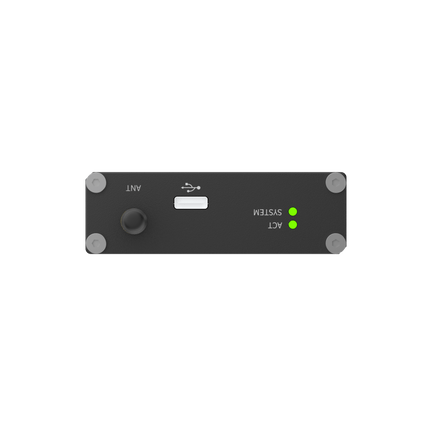

    Configuration Port 1 × Type-C

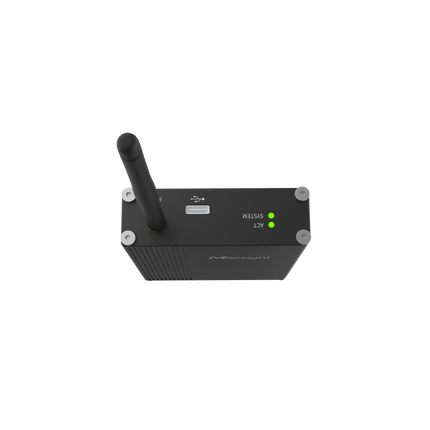

    LED Indicators 1 × System, 1 × ACT
    Built-in Watchdog, Timer
    Physical Characteristics
    Operating Temperature -20°C ~ 60°C (-4℉ to +140℉)
    Dimensions 93 × 70 × 22 mm (3.66 × 2.76 × 0.87 in)

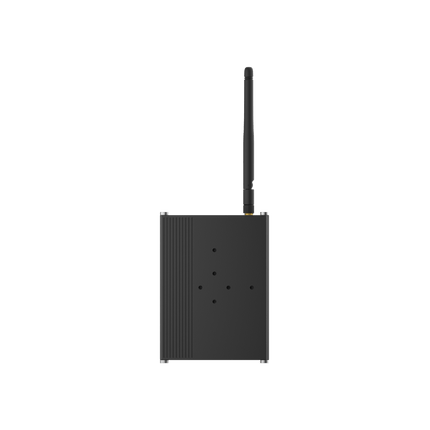

    Installation Desktop, Wall Mounting, DIN Rail Mounting



    Documentations:

    UC300 User Guide

    UC300 Cellular Commuincation Protocol

    UC300 LoRaWAN Commuincation Protocol
