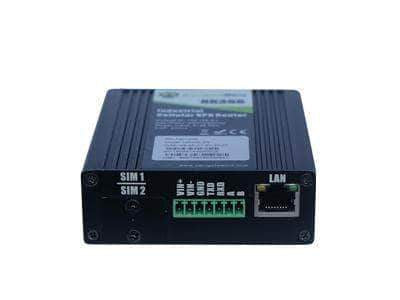

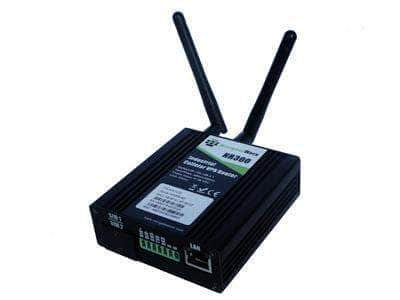

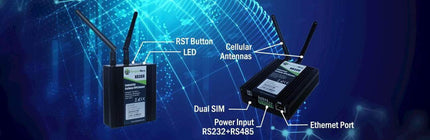

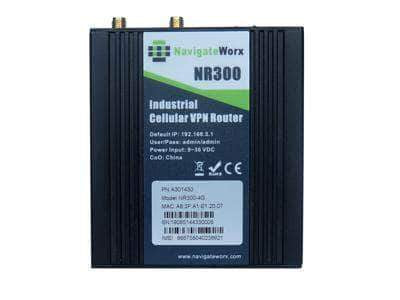

Industrial Premium 4G LTE Cellular NR300 Compact Router Dual SIMs (AU Freq.)

  • $249.00
  • Save $50
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • Industrial Premium 4G LTE Cellular NR300 Router Dual SIMs (AU Freq.) - 4G LTE/3G, Dual SIMs, 1 x Eth, 1 x RS232 (3 PIN), 1 x RS485, 9 - 36VD

    Frequency Bands: B1-B2-B3-B5-B7-B8-B20-B28 (Suit AU Freq. Bands inc. Telstra)

    Navigateworx NR300 series industrial cellular 4G/3G VPN router offers a single, flexible platform to address a variety of wireless communications needs with over-the-air configuration and system monitoring for optimal connectivity. This router enables wireless data connectivity over public and private LTE cellular networks at 4G speeds.

    NR300 series router supports 9 to 36 VDC wide range power inputs, designed with reverse-voltage protection mechanism for greater reliability. It is an advanced choice for universal wireless M2M applications with reliable features for data transmission.

    Specifications

    • Dual SIMs Card, Failover
    • 1 Ethernet Port, 100 Mbps, RJ45 connector
    • 1 RS232 (3 PIN) & 1 RS485
    • SMS configuration System
    • Number of Antennas: 2 (MAIN + AUX)
    • Wide Operating Temperature: -40 to 75
    • Wide Range Power Input: 9 to 48V
    • Hardware RTC & Watchdog
    • Timer Reboot / SMS Reboot
    • LTE Connected on Demand
    • Multiple VPNs Supported
    • Local Web & SNMP & CLI Configuration
    • 3rd party Central Management Platform
    • VPNs: OpenVPN, GRE, IPSec, L2TP, PPTP, DMVPN
    • Config: Local Web & SNMP & CLI Configuration
    • High EMC Level
    • DIN-rail mounting

    Applications

    1. Video Surveillance
    2. Retail Markets, including Vending Machines, Kiosk etc
    3. Remote Monitoring - SCADA
    4. Intelligent Transportation System
    5. Industrial Automation
    6. Automatic Metering Reading

    Cellular Interface

    • Standards: FDD-LTE/TDD-LTE, WCDMA/UMTS/HSPA/HSPA+/EDGE/GPRS,
    • 2x SMA female antenna connector
    • 2 x SIM (3.0V & 1.8v)

      Serial Interface

      • 1 x RS232 (3 PIN): TX, RX, GND
      • 1 x RS485 (2 PIN): Data+ (A), Data-(B)
      • Baud rate: 300 bps to 115200 bps
      • Connector: terminal block
      • 15KV ESD protection

        Software

        • Network protocols: DHCP, ICMP, PPPoE, HTTP, HTTPS, DNS, VRRP, NTP.
        • VPN: IPSec, PPTP/L2TP client, GRE, OpenVPN, DMVPN
        • Policy: RIPv2/OSPF/BGP dynamic route (optional)
        • Firewall & Filter: Port forwarding, DMZ, anti-DoS, ACL
        • Serial port: TCP server and client, UDP
        • Management: Web, SNMP, 3rd party platform

        Power Supply and Consumption

        • Connector 3-pin 3.5 mm female socket with lock
        • Input voltage range:
        • Power consumption:
        • Idle: 100 mA@12V
        • Data link: 400 mA (peak) @12V
        • 9-48VDC

          Environmental

          • Operation temperature:-40 +75 C
          • Store temperature: -40-+85 C
          • Operation humidity: 5% to 95% non-condensing
          Optional Accessories
          Power Supply Power Supply Adapter, AU Plug, Input 100 to 240VAC, Output 12VDC 1.5A
          Cellular Antenna 4G / 3G / 2G Megnet Antenna, 3 Meters Long, 698-960 / 1710-2700 MHz, 3bi, Φ 29×112mm, AC
          Din Railway Kit Din Railway Kit, 35 mm, Alumunium with Black Spray Surface, 50 * 40 * 8.5 mm, 3 * M3.5 Screw Holes

          Documentations:

          NR300 Datasheet

          NR300 User Manual

          NR300 Introduction

          NR300 Quick User Guide

          NR300 Functions Deployments
