ElecFreaks Gas Sensor Octopus Smoke Sensor MQ-5 Brick

Smoke Sensor MQ-5 Brick

  • Save $3

  • (Exc. GST)

  • Available in stock
    • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes

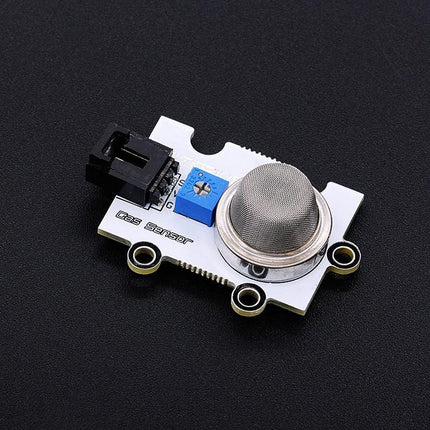

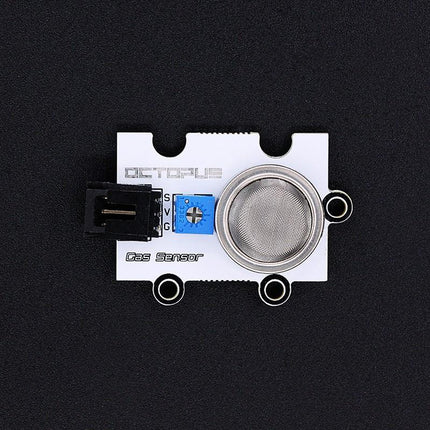

    • Smoke Sensor MQ-5 Brick


    The analogue gas sensor - MQ5 is used in gas leakage detecting equipment in consumer and industry markets, this sensor is suitable for detecting LPG, i-butane, propane, methane, alcohol, Hydrogen, smoke.It has a high sensitivity and fast response time.And the sensitivity can be adjusted by the potentiometer.

    xxx



    Specification

    • Power supply needs: 5V
    • Interface type: Analog
    • Pin Definition: S-Sigal V-VCC G-GND
    • Wide detecting scope
    • Fast response and High sensitivity
    • Simple drive circuit
    • Stable and long life
    • Size: 38x27mm
    xxx



    Shipping List

    • 1 x Smoke Sensor MQ-5 Brick
    • 1 x Analog Sensor Cable
