Phidget Stepper Motor Bipolar HC - 1067_0B

  • $109.00
  • Save $60
  • (Exc. GST)

  • Accepting orders for the 3rd batch delivery in December. Due to the high demand, we only ship to local Australia and New Zealand Addresses. Please email us ( your requested order quantity and delivery address, we will send you quotation and proforma invoice to complete your order payment.

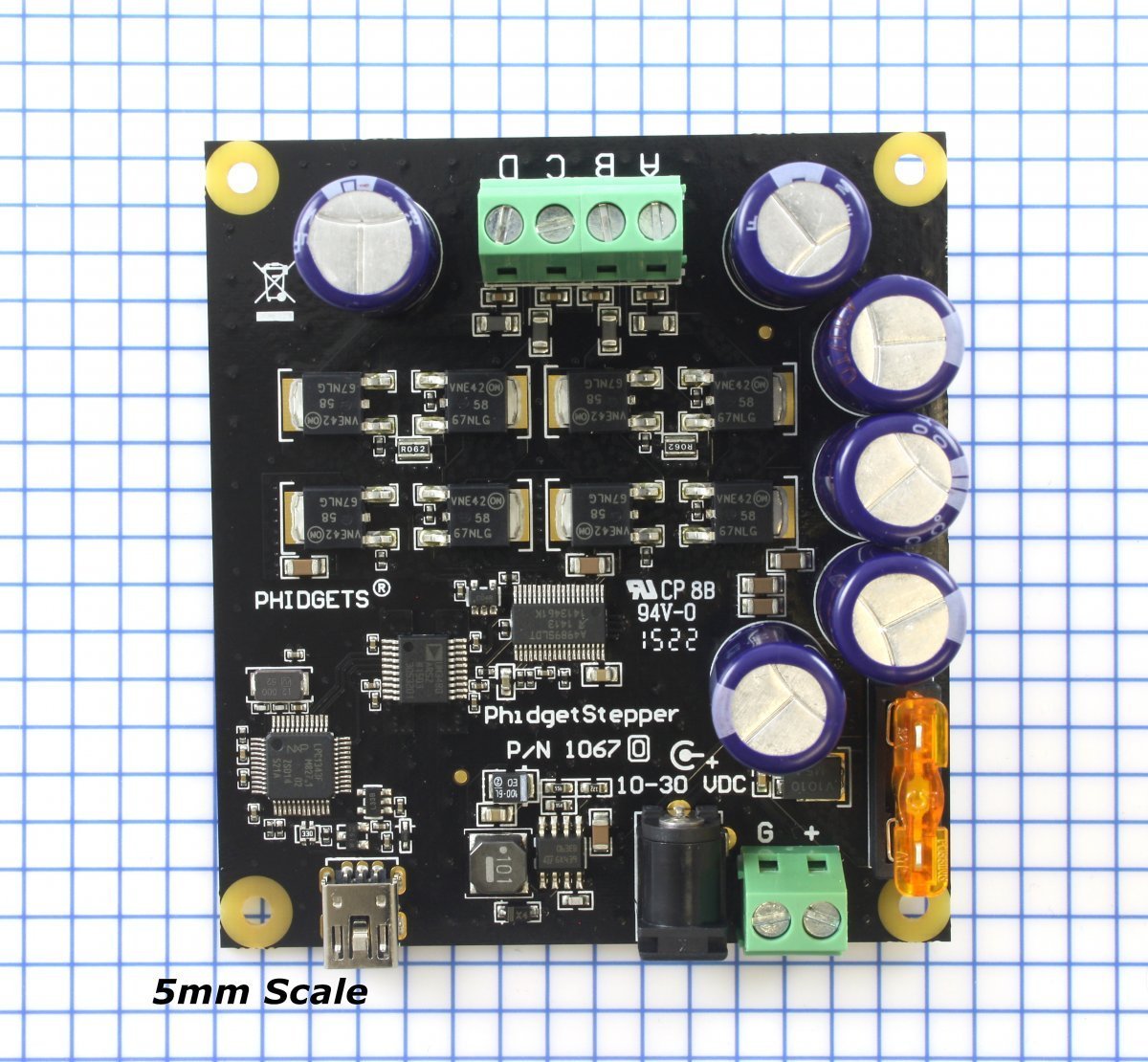

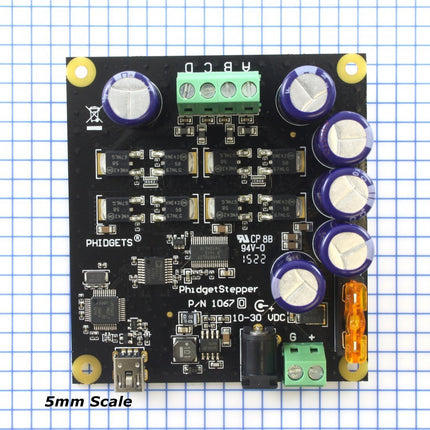

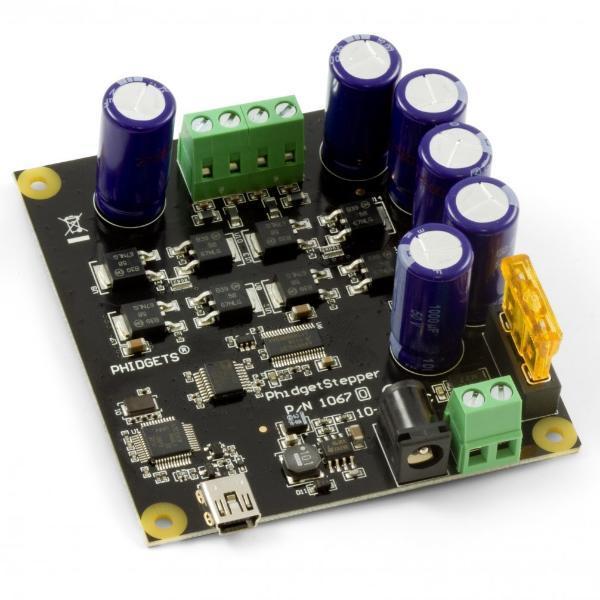

  • Phidget Stepper Motor Bipolar HC - 1067_0B

    Accurately control one bipolar stepper motor with this controller. This board comes with a number of safety features.

    The 1067 – PhidgetStepper Bipolar HC allows you to control the position, velocity, and acceleration of one bipolar stepper motor. This is the product you want to use to control larger industrial steppers or for applications that need a lot of torque.

    The 1067 can also be used in applications that require very precise positioning. It uses micro-stepping at all times to ensure smooth acceleration.

    This board is USB isolated, protecting your system from ground loops, and comes with a built-in replacable ATP Blade Terminal fuse to protect against an over-current scenario.

    Comes Packaged with

    • A Hardware mounting kit (4 nuts and bolts (M3), 4 plastic spacers)
    • A 5 Amp ATP Blade Terminal fuse



    Make sure the power supply is unplugged before attaching or removing wires from the terminal blocks. Failure to do so could cause permanent damage to the PhidgetStepper board.

    When using larger motors with heavy loads or high speeds, you should take caution because the back EMF generated when stalling or changing directions could damage the motor controller. As a rule of thumb, if the kinetic energy of your application exceeds 10 joules, you are at risk of damaging the controller. Feel free to contact us for advice for such applications.


    Product Specifications

    Controller Properties
    API Object Name Stepper
    Motor Type Bipolar Stepper
    Number of Motor Ports 1
    Motor Position Resolution 116 Step (40-Bit Signed)
    Position Max ± 1E+15 1/16 steps
    Stepper Velocity Resolution 1 1/16 steps/sec
    Stepper Velocity Max 250000 1/16 steps/sec
    Stepper Acceleration Resolution 1 1/16 steps/sec²
    Stepper Acceleration Min 2 1/16 steps/sec²
    Stepper Acceleration Max 1E+07 1/16 steps/sec²
    Board Properties
    Controlled By USB (Mini-USB)
    API Object Name Stepper
    Electrical Properties
    Available Current per Coil Max 4 A
    Supply Voltage Min 10 V DC
    Supply Voltage Max 30 V DC
    Current Consumption Min 25 mA
    USB Speed Full Speed
    Physical Properties
    Power Jack 5.5 x 2.1mm Center Positive
    Recommended Wire Size (Motor Terminal) 12 to 26 AWG
    Recommended Wire Size (Power Terminal) 12 to 26 AWG
    Operating Temperature Min -20 °C
    Operating Temperature Max 85 °C
