Phidgets Light Sensor 1000 lux - 1142_0
Phidgets Light Sensor 1000 lux - 1142_0

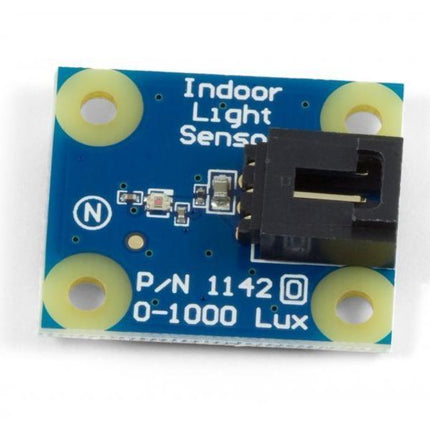

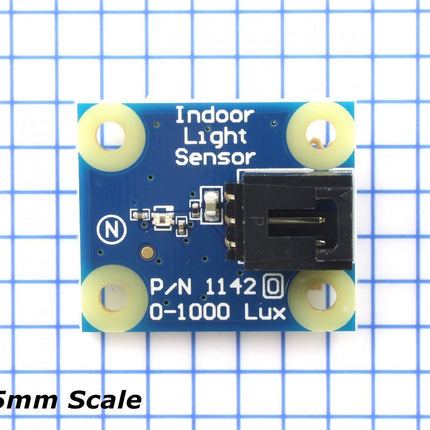

The 1142 Light sensor can measure ambient light up to 1000 lux (roughly equivalent to the typical lighting in a studio, or the sky on an overcast day). Each sensor has been individually calibrated, and a label has been applied to the back of the board with a calibration value which can be used in your calculations to increase measurement accuracy.
Some light sensors report drastically different values depending on the type of light being detected. The 1142 light sensor, however, only differs by a factor of 1.2 when measuring fluorescent light versus incandescent.
If you need a larger measurement range, take a look at the 1143 – Light Sensor 70,000 lux.
Comes Packaged with
Product Specifications
Sensor Properties | |
---|---|
Sensor Type | Light |
Controlled By | Voltage Input (0-5V) |
Sensor Output Type | Non-Ratiometric |
Light Sensor | |
Response Time Max | 2 ms |
Peak Sensitivity Wavelength | 625 nm |
Light Level Min | 1 lx |
Light Level Max (5V) | 1 klx |
Light Current Ratio | 1.2 |
Electrical Properties | |
Output Impedance | 1 kΩ |
Supply Voltage Min | 2.4 V DC |
Supply Voltage Max | 5.5 V DC |
Current Consumption Max | 5 mA |
Physical Properties | |
Operating Temperature Min | -40 °C |
Operating Temperature Max |
85 °C |
