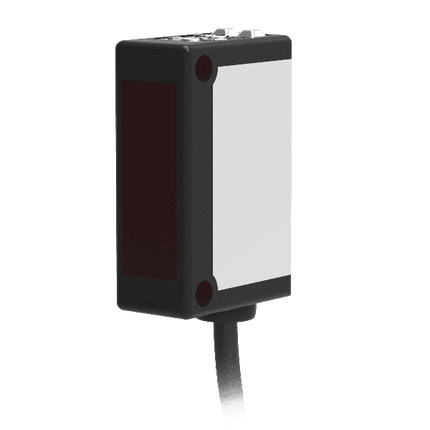

Lanbao Photoelectric Sensors Photoelectric Sensor 15m PSC-TM15TNB

Photoelectric Sensor 15m PSC-TM15TNB

  • $69.00
  • Save $30
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • Photoelectric Sensor 15m PSC-TM15TNB

    Datasheet Link


    type Through beam reflection
    Sensing distance 15m
    Standard target >Φ10mm opaque object
    Light source Infrared LED (850nm)
    Rectangular size 31*20*11mm
    Output ways NPN
    Output status NO/NC
    Residual voltage ≤2.5V(receiver)
    Supply Voltage 12…24 VDC
    Load current ≤100mA(receiver)
    Current consumption ≤15mA
    Response time <2ms
    Repeat accuracy ≤5%
    Ambient temperature -25℃…55℃
    Ambient humidity 35-95%RH(no condensation)
    Circuit protection Reverse polarity protection, output short circuit protection, overload protection
    Withstand voltage 1000V/AC 50/60Hz 60s
    Insulation resistance ≥50MΩ(500VDC)
    Vibration resistance Complex amplitude 0.5mm 10...50Hz (2 hours each in X, Y and Z directions)
    Protection degree IP67
    Output indicator Transmitter: Green LED Receiver: Yellow LED
    Housing material PC/ABS
    Certification CE
    Connection Cable
