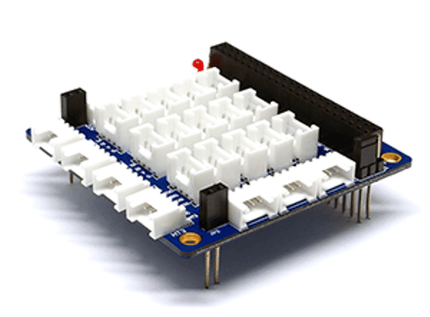

PHPoC Expansion Board - Grove Sensors Interface (PES-2005)
PHPoC Expansion Board - Grove Sensors Interface (PES-2005)
PHPoC IoT Boards are for industrial IoT solution. Sollae Systems offer two options: PHPoC Blue and PHPoC Black suitable to your network environment.
PHPoC expansion boards have developed and been developing to give more convenience.
Grove expansion board has up to 25 Grove interface units with option to switch
between 3.3V and 5V power supply, allowing easy connection of various sensors
and actuators to PHPoC IoT Board via UART, SPI, I2C, PWM, ADC or I/O ports.
Go to see Grove modules
Related Blogs
- PHPoC Blue, Thingspeak, Temperature and Humidity Sensor
- IR Repeater
- Internet infrared (IR) remote controller
- Capture and analyse infrared (IR) signal from remote control
- Infrared (IR) communication using PHPoC
- Amazon Echo – Read Temperature and Humidity from Sensor
Related Videos
Features
- 2 UART groves
- 1 SPI grove
- 1 I2C grove
- 6 ADC groves
- 4 PWM groves
- 11 I/O groves
- Power switch between 3.3V and 5V
