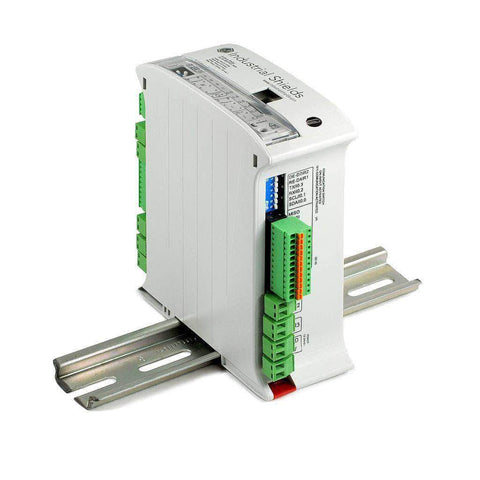

Industrial Shields Open PLC PLC Arduino ARDBOX 20 I/Os Relay HF Modbus & WiFi & Bluetooth LE

PLC Arduino ARDBOX 20 I/Os Relay HF Modbus & WiFi & Bluetooth LE

  • $389.00
  • Save $50
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

    PLC Arduino ARDBOX 20 I/Os Relay HF Modbus & WiFi & Bluetooth LE

    USB, Full/Half duplex, RS485, RS232, I2C, Modbus, Wi-Fi & Bluetooth LE (ESP32).

    Arduino Mega included:

    – 10 Inputs:

    (10x) Digital (7-24Vdc).

    (6x) of 10x, Analog (0-10Vdc) configurable by Software.

    – 10 Outputs:

    (8x) Relay outputs (220Vac – 5A)

    (2x) Analog Output (0-10Vdc)*

    Communications:

    - (1x) WiFi & Bluetooth LE (based on ESP32)

     – (1x) USB port (Micro USB-B).

    – (1x) I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)

    – (1x) RS-232 port.

    – (1x) HALF/FULL Duplex RS-485 port.

    – Modbus RTU

    – Industrial Protocols

    Other technical specifications:

    100x45x115mm

    DIN-Rail mounting.

    Max consum.: 1.2A

    Flash Memory: 32kB (4kB for bootloader)

    SRAM: 2.5kB

    EEPROM: 1kB

    Clock Speed: 16MHz

    Modular PLC
    This is the first equipment based on the Arduino technology designed for professional use. This PLC has 20I/Os. It also contains several communication ports which provide more flexibility and control. The GPRS Controllers family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…

    Programming Software
    This PLC can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.

    Instantaneous connection and coding
    This PLC can also be programmed through Ethernet port remotely. This offers an immediate access to program, maintain and control. Also, you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Ardbox , M-duino and the Touchberry Pi with an instantaneous connection.

    Downloads

    CE - Ardbox 20 I_Os Relay HF Modbus & WiFi & BLE.pdf
    Ardbox Relay HF WiFi & BLE-Arduino-PLC.pdf
    Ardbox Relay HF+ WiFi & BLE
