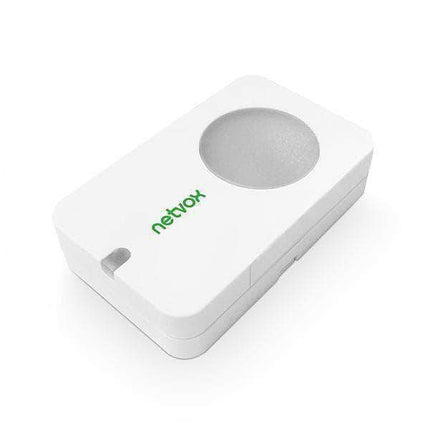

R311G Netvox LoRaWAN Wireless Light Sensor
R311G Netvox LoRaWAN Wireless Light Sensor
R311G has a built-in photosensitive sensor, and it is used for the detection of ambient light intensity. It can work with other devices to perform wireless dimming functions, and the wireless communication is based on LoRaWAN™ protocol (classA). R311G is an ambient light sensor which reports the light level periodically.
Frequency Range: AU915-928,AS923
Features:
-
Compatible With LoRaWAN™ Protocol
-
2 X CR2450 3V Button Batteries
-
Built-In Antenna
-
Simple Operation And Device Configuration
-
Reports Battery Voltage And Light Level
Battery: https://www.iot-store.com.au/products/lithium-button-cell-battery-cr2450-3v-600mah
Electric
Input Power |
2 X 3.0V CR2450 Button Batteries |
Operating Power |
DC 2.4V~3V |
Standby Current |
12uA/3.0V |
Transmitting Current (Max) |
120mA/3.0V |
Receiving Current (Max) |
11mA/3.0V |
Brightness Detecting Range |
1~3000LUX |
Low Voltage Threshold |
2.4V |
Voltage Measurement Accuracy |
±0.1V |
Physical
Main Body Dimension |
57mm X 35mm X 15mm |
Weight |
32.3g |
Operating Temperature |
-20℃ ~ 55℃ |
Environment Humidity Range |
<90% RH (No Condensation) |
Storage Temperature |
-40℃ ~ 85℃ |
Documentation:
Battery Calculator:
Netvox LoRa Command Resolver:
LoRa Command Resolver
Payload Format and Examples
Netvox LoRaWAN Application Command V1.9
Netvox LoRaWAN Application Devicetype V1.9
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
