R313W Netvox LoRaWAN Wireless Water Leak Sensor
R313W Netvox LoRaWAN Wireless Water Leak Sensor

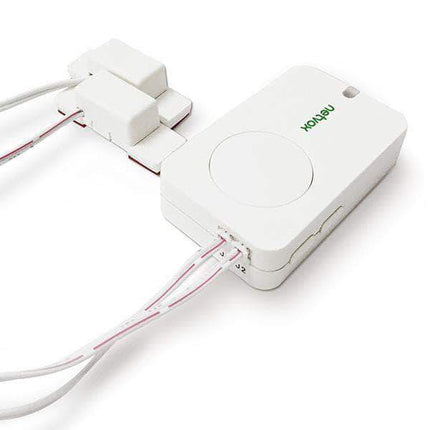

Netvox R313W is a water leak sensor based on LoRaWAN™ Protocol (ClassA) carrying leak detection and alarm function. When R313W detects a leak, it will send an alarm message to the gateway. When the sensor detects no leak, it will send a message that reports the status to the gateway. There are two water leak sensors which allow users to monitor two spots.
Frequency Range: AU915-928，AS923
Features:
- Compatible With LoRaWAN™ Protocol
- 2 X CR2450 3V Button Batteries
- Built-In Antenna
- Simple Operation And Device Configuration
- Reports Battery Voltage And Water Leaks
Battery: https://www.iot-store.com.au/products/lithium-button-cell-battery-cr2450-3v-600mah
Electric
|
Input Power |
2 X 3.0V CR2450 Button Batteries |
|
Operation Voltage |
DC +2.4V～3.0V |
|
Standby Current |
12uA/3.0V |
|
Transmitting Current (Max) |
120mA/3.0V |
|
Receiving Current (Max) |
11mA @3.0V |
|
Low Voltage Threshold |
2.4V |
|
Voltage Measurement |
±0.1V |
Physical
|
Water Leakage Material |
UL2468 28AWG |
|
Water Line Maximum Temperature |
80°C |
|
Water Line Weight |
5g |
|
Water Line Core Resistance |
1.3 Ohm / Meter |
|
Water Line Diameter |
1mm |
|
Water Line Length |
1000mm (±5mm) |
|
Water Line Flame Rating |
VW-1 |
Documentation:
Battery Calculator:
Netvox LoRa Command Resolver:
LoRa Command Resolver
Payload Format and Examples
Netvox LoRaWAN Application Command V1.9
Netvox LoRaWAN Application Devicetype V1.9
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
