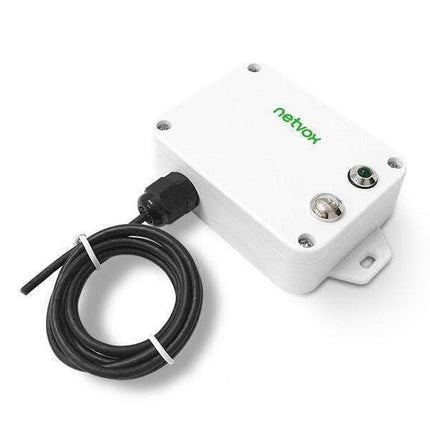

R718KA Netvox LoRaWAN Wireless mA Current Meter Interface 4~20mA
R718KA Netvox LoRaWAN Wireless mA Current Meter Interface 4~20mA
The Wireless 4-20 mA DC Current Meter is designed to offer a large selection of easy-to-use current 4-20 mA data loggers for load monitoring. The wireless communication is compatible with LoRaWAN™ Protocol (ClassA).
Features:
-
Wireless Range of 10km
- LoRaWAN Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management for Longer Battery Life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
- Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
- Over-The-Air Updates (Future)
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
- And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects
Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell
Electric
|
Input Power |
2 X 3.6V ER14505 AA Lithium Batteries |
|
Sleeping Mode |
21uA |
|
Wake Up Mode |
6.3mA@3.3V |
|
Receiving Current (Max) |
11mA @3.3V |
|
Transmitting Current (Max) |
120mA/3.3V |
|
Battery Voltage Measurement |
±0.1V |
|
Low Voltage Threshold |
3.2V |
Frequency
|
TX Power |
19dBm±1dBm |
|
Rx Sensitivity |
-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps ) |
|
Antenna Type |
Build-In Antenna |
|
Communication Range |
10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment) |
|
Data Transfer Rate |
0.3kbps～50kbps |
|
Spread Technique |
LoRa/FSK |
|
Available Frequency |
AU915, AS923 |
Physical
|
Dimension |
Main Part: L: 112mm*W: 65mm*H: 32mm |
|
Weight |
141g |
|
Environment Temperature Range |
-20℃ ～ 55℃ |
|
Environment Humidity Range |
<90% RH (No Condensation) |
|
Storage Temperature |
-40℃ ～ 85℃ |
|
IP Rating (Main Part) |
IP67 |
|
IP Rating (External Sensor) |
IP65 |
Documentation:
Payload Format and Examples
Netvox LoRaWAN Application Command V1.9
Netvox LoRaWAN Application Devicetype V1.9
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
