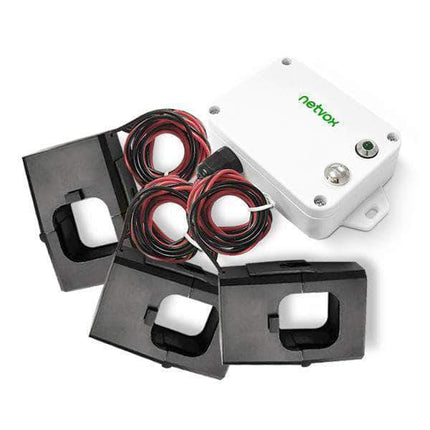

R718N363 Netvox LoRaWAN Wireless 3-Phase Current Meter with 3 X 630A Clamp-On CT
R718N363 Netvox LoRaWAN Wireless 3-Phase Current Meter with 3 X 630A Clamp-On CT
The R718N363 Netvox wireless three-phase current detector is used to detect three-phase electrical input current. The device is compatible with the LoRaWAN protocol, and integrates a chip module that conforms to the LoRaWAN wireless protocol, and joins the gateway to display the collected data in the gateway. The R718N363 is powered by a battery and receives AC current through a current transformer. The R718N363 adopts open-loop current transformer, which can be easily connected to the device to be tested. The A phase line, the B phase line and the C phase line of the three-phase electric power are respectively connected to the corresponding current transformers.
Features:
-
LoRaWAN™ Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life: Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
- Over-The-Air Updates
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects
Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell
Electric
Input Power |
2 X 3.6V ER14505 AA Lithium Batteries |
Sleeping Current |
25uA |
Wake Up Current |
7mA |
Receiving Current (Max) |
11mA @3.3V |
Transmitting Current (Max) |
127mA @3.3V |
Battery Voltage Measurement |
±0.1V |
Current Measurement Accuracy |
<+-1% |
Current Measurement Accuracy Range |
10A To 630A |
Frequency
TX Power |
19dBm±1dBm |
Rx Sensitivity |
-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps ) |
Antenna Type |
Build-In Antenna |
Communication Range |
Up To10 Km, The Actual Transmission Distance Depends On The Environment. |
Data Transfer Rate |
0.3kbps~50kbps |
Spread Technique |
LoRa/FSK |
Available Frequency |
AU915-928,AS923 |
Physical
Dimension |
Main Part: L: 112mm*W: 65mm*H: 32mm |
Weight |
141g |
Environment Temperature Range |
-20℃ ~ 55℃ |
Environment Humidity Range |
<90% RH (No Condensation) |
Storage Temperature |
-40°C~+85°C |
