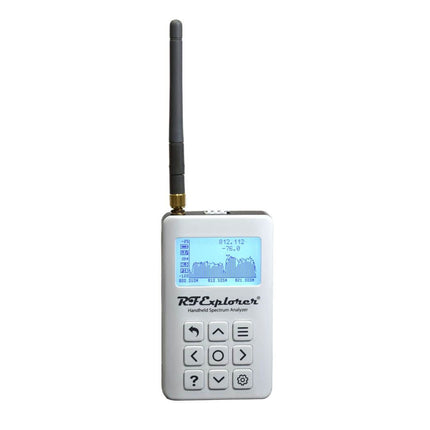

    RF Explorer WSUB1G PLUS - Slim

    RF Explorer WSUB1G+ is a powerful, high performance digital spectrum analyzer covering the 1GHz frequency range starting at 50KHz. The new SLIM model offers an outstanding robust design, a more convenient USB connector on the side and larger internal battery capacity.

    Features

    • Internal LNA amplifier and selectable attenuator
    • Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz
    • New HELP and SET buttons to improve user interface and configuration selection with 2-clicks
    • Wide band coverage to all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID, GSM, etc.
    • Ideal choice for HAM bands from 160meters to 33cm
    • Pocket size and light weight
    • Solid metal case
    • Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
    • High capacity internal Lithium battery for 20hs+ of continuous run, rechargeable by USB
    • Multi-platform Windows/Linux/MacOS Open Source software and API libraries
    • Can be extended with internal Expansion Modules for additional band and functionality

    Specification

    • Frequency band: 0.05 – 960MHz
    • Frequency span: 0.1 – 960MHz
    • Internal selectable LNA 25dB gain
    • Internal selectable Attenuator 30dB
    • Graphics LCD 128x64 pixels, great visibility outdoors
    • Support included for Windows, Linux and MacOS X
    • Backlight for great visibility indoor
    • Internal Lithium Ion 1800mA/h rechargeable battery
    • Standard SMA 50 ohms connector

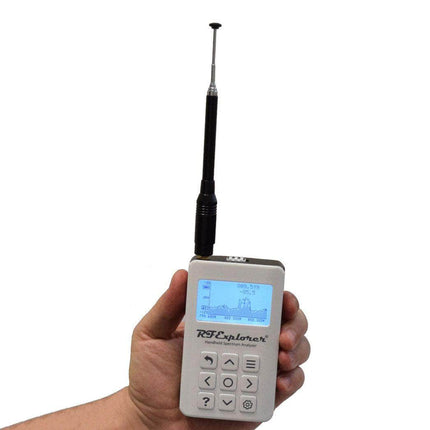

    • Wideband 144/433MHz dual band telescopic antenna included
    • UHF 400-900MHz rubber duck articulated antenna included
    • Amplitude resolution: 0.5dBm
    • Dynamic range: -125dBm to 10dBm
    • Absolute Max input power: +30dBm
    • Average noise level (typical LNA): -125dBm
    • Frequency stability and accuracy (typical): +-10ppm
    • Amplitude stability and accuracy (typical): +-2dBm
    • Frequency resolution: 1Khz
    • Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz

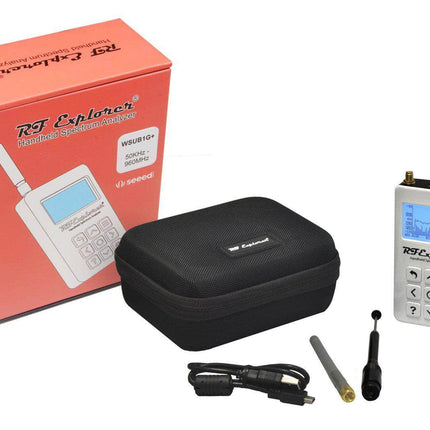

    Part List

    • 1 x Spectrum Analyzer
    • 1 x Mini USB cable
    • 1 x Dual band 144/430MHz Telescopic antenna
    • 1 x UHF 400-900Mhz antenna
    • 1 x EVA case
