RS232/RS485/RS422 Single Serial Ethernet Converter - USR-N510

  • $69.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes

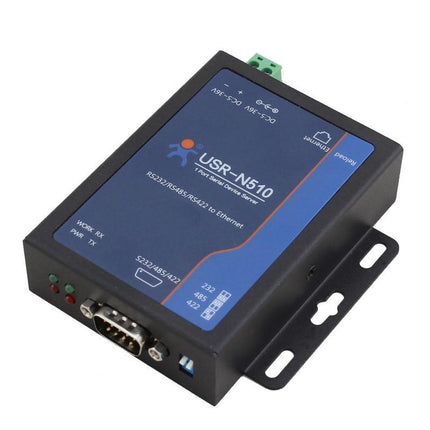

  • RS232/RS485/RS422 Single Serial Ethernet Converter - USR-N510

    USR-N510 is an industrial serial to ethernet converter to realise bi-directional transparent transmission between RS232/RS485/RS422 and network with Modbus function.

    Through simple settings via web page or setup software can assign working details, realise serial data and TCP/IP data package transparent transmission by serial ethernet converter.

    USR-N510 is based on ARM processor and it is internally integrated with TCP/IP protocol. User can easily realise embedded device networking.

    Application Field For [Serial Ethernet Converter]

    • Industrial data transmission, industrial automation
    • security and protection monitoring, public security
    • Smart home, power control, environmental monitoring, intelligent agriculture
    • Door check on work attendance system, POS system, rice selling system
    • Building automation system, power monitoring, self-service banking system, telecom machine room monitoring

    Character

    Industrial Solution TI Cortex M4 Solution, work temp at -40~85C
    Power Supply DC/Terminal type 5V~36V

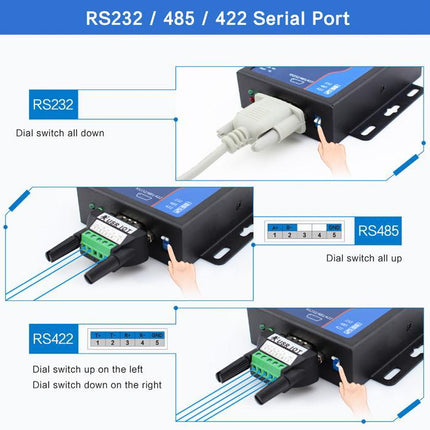

    Serial Port RS232/RS485/RS422, 3-in-1 serial port
    Serial Signal RS232: TX/RX, CTS/RTS



    RS485:A/B/G

    Flow Control Software: XON/XOFF
    Modbus Gateway Modbus TCP to Modbus RTU in bi-directional



    Modbus Polling

    Advanced Character -Network Printing



    -Web socket: Serial to Webpage

    -Modify MAC

    -Hardware watchdog

    -ARP of server domain name

    Certification CE/FCC/RoHs/WEEE
    Work Mode TCP Server/ TCP client/ UDP Server/UDP Client/ HTTP Client
    Built-in web page Customized web page is acceptable

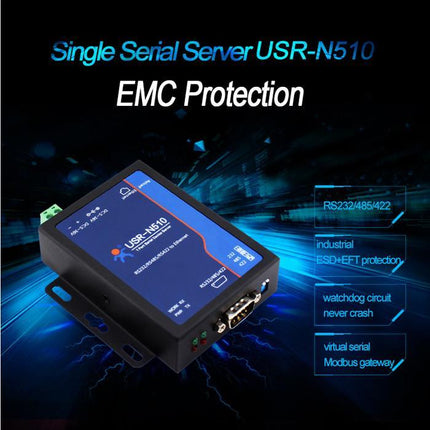

    Protect Surge Protection, ESD 2KV, for more harsh industrial environment
      Point 1
      • Ethernet 10/100Mbps, support Auto-MDI/MDIX
      • A port can correspond to 2 Sockets
      • Provide PC TCP/IP socket programming examples such as VB, Andriod, IOS etc.
      Point 2
      • Virtual serial port, provide corresponding software USR-VCOM
      • Baud rate: 600bpgs~230.4Kbps
      • Reload button to restore default settings
      • Support keep alive, rapidly detect dead links.

    Note: This kit includes the AU power adapter and DB9 cable and Connector.

    Specifications:

    System Information
    Processor Cortex-M4
    Basic Frequency 120MHz
    Flash 512K byte

    Ethernet
    Port Number 1
    Interface Standard 8 pin RJ45
    Rate 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
    Protection 2KV electromagnetism isolation, shell insulation blocking
    Network Protocol IP,TCP,UDP,DHCP,DNS,HTTP,ARP,ICMP,Web socket,Httpd client
    Receive Buffer Max 16k bytes buffer

    Serial
    Port Number 1
    Interface Standard RS-232: DB9 pin type, RS-485: 2 wire (A+,B-), RS-422 (A,B,Y,Z)
    Data Bits 5,6,7,8
    Stop Bit 1,2
    Check Bit None,Even,Odd,Space,Mark
    Baud Rate 600bps ~ 230.4Kbps
    Flow Control RTS/CTS
    Buffer Send and receive 2k bytes respectively
    Protection RS-485: anti-static 2KV,lightning protection
    RS-485 Pull-up and Pull-Down Resistor 2.2 KΩ

    Software
    Virtual Serial(USR-VCOM) Windows 2000 or higher(32 bit/64 bit)
    Configuration Built-in webpage, computer set-up software, serial command

    Basic Parameter
    Size 88 x 81 x 24 mm
    Operating Temp. -40 ~ 85°C (industry)
    Storage Temp. -40 ~ 85°C, 5 ~ 95% RH (no condensation)
    Input Voltage DC 5 ~ 36V
    Working Current 53mA @ 12V
    Power <1W

    User Manual

    [User Manual] USR-N510 Quick Start Guide | download
    [Datasheet] USR-N510 Datasheet | download
    [User Manual] USR-N510 User Manual | download
    [AT Command] USR-N510 AT Command Set | download

    Application Software

    [USR-VCOM] Virtual Serial Software V3.7.1.520 | download
    [USR-TCP-Test] Testing Software | download
    [USR-TCP-Test_android] Testing Software | download
    [USR-M4] USR-TCP232-M4K3 Setup Software V2.3.3.97 | download

    Product Certificates

    [Certificate] M4 Series CE FCC ROHS WEEE Certificate | download
