TG463 Industrial 5G/4G Gigabit IoT Router WiFi Edge Gateway DIN-Rail

  • $579.00
  • Save $100
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

    TG463 Industrial 5G/4G Gigabit IoT Router WiFi Edge Gateway DIN-Rail

    The TG463 series is a 5G NR (or 4G) IoT gateway designed for IoT, M2M, and eMBB applications requiring higher speed, lower latency data transmission, and capacity of edge computing. Its Linux OS-based openWrt platform allows developers and engineers to program and do secondary development on the hardware themselves. In addition, its rich I/O is ideal for connecting with diverse field equipment and sensors and transferring the data to the cloud server.

    The TG463 series IoT gateway can be used for a wide variety of applications, such as smart poles, smart cities, smart office, smart buildings, smart traffic light, digital signage advertising, vending machines, ATM, etc.

    Specifications

    System
      ● CPU:  32-bit, 880MHz, dual core
      ● Flash:  32MB (Extendable to 128MB, Option)
      ● RAM:  256MB DDR3

    Cellular Interface
      ● Antenna Connector:
         4 × 50 Ω SMA Female(5G Version TG463-NR)
         2 × 50 Ω SMA Female(4G Version TG463-LF)
      ● SIM Slot:  1 or 2(Option), Standard SIM, 2FF

    Ethernet Interfaces
      ● Ports:  5 x RJ45 (1-WAN, 4-LAN or 5-LAN, configurable via Web UI)
      ● Data Rate:  10/100/1000Mbps (Auto-Sensing), Auto MDI/MDIX
      ● PoE:  4 PoE PSE, 802.3af(Option)


    Serial Interface
      ● Connector:  Terminal block, 3.5 mm female socket with lock
      ● Ports:  1 x RS232, 1 x RS485, 15KV ESD protection
      ● Baud Rate:  100bps to 230400bps

    Wi-Fi
      ● Antenna Connector:  4 × 50 Ω SMA Male
      ● Standard 2.4G/5GHz
         IEEE 802.11b/g/n/ac, supporting AP and Client modes
      ● Transmission Rate:  IEEE802.11b/g: Up to 54Mbps
         IEEE802.11n: Up to 300Mbps
         IEEE802.11ac: Up to 1.7Gbps
      ● Security Open,WPA,WPA2,WPA/WPA2, Enterprise, Radius

    GNSS (Optional)
      ● Module: Built-in independent GPS module, or GNSS from cellular module

      ● Antenna Connector: 1 × 50 Ω SMA Female

    I/Os
      ● Connector:  Terminal block, 3.5 mm female socket with lock
      ● ADC:  3
        12-bit AD, supports 4-20mA current signal input, or 0-5V voltage signal input (Option)
      ● DI:  2
         Logic 0: Wet contact 0-3VDC, or dry contact close
         Logic 1: Wet contact DC 5-30V, or dry contact open
      ● DO(Relay): 3
         Maximum switch voltage 30VDC/250VAC
         Maximum switch current: 5A
      ● Power Output:  2-channel 12V, current 1A
         Built-in overcurrent protection, for external devices DC power input

    External Storage
      ● Micro SD 1 x TF card, Up to 32GB
      ● Usage: User Program, Data Storage and Firmware Upgrade

    Power Supply and Consumption
      ● Connector:  2-pin with 3.5 mm terminal block
      ● Standard:  DC 12V/1.5A
      ● Power Input:  5-35 VDC
      ● Idle Mode:  253〜360mA@12VDC
      ● Working Mode:  318〜425mA@12VDC

    Software
      ● Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH, etc.
      ● Serial Port: MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP)
      ● VPN Tunnel: IPsec/PPTP/L2TP/GRE/OpenVPN
      ● Firewall:  ACL/DMZ/Port Mapping/MAC Binding
      ● Management:  Web, CLI, SMS, Cloud DMP (Device Management Platform)
      ● Reliability:  WAN Failover, Hardware & Software watchdog
      ● Secondary Development:  OpenWrt based, support Python, LUA and SDK

    Physical
      ● IP Rating:  IP30
      ● Housing:  Metal
      ● Weight:  1,000g(2.2lbs) without accessories

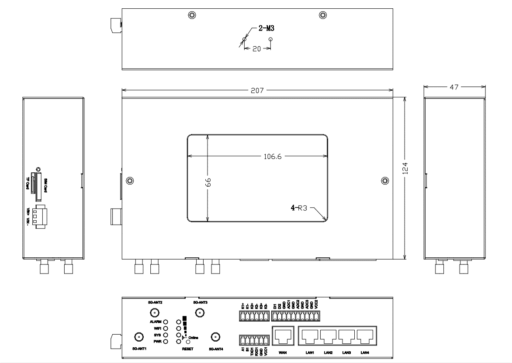

      ● Dimensions:  207*124*47mm(8.15*4.88*1.85in)
      ● Mounting: Din-rail, Wall mount, Desktop

    Environmental
      ● Operating Temperature:  -35°C to +75°C (-31℉ to +167℉)
      ● Storage Temperature:  -40°C to +80°C (-40℉ to +176℉)
      ● Relative Humidity: 93% ± 3% (non-condensing) at 25°C/77℉

    Others
      ● LED Indicators:  Signal strength, WIFI, System(SYS), Online, Power (PWR), Alarm
      ● Built-in:  Watchdog, RTC, Timer
      ● Certifications:  CE*, RCM*, FCC*
      ● Warranty Standard:  12 Months Period Extended: 2-5 Years

    Smart Pole Diagram



    Documents

    TG463 Datasheet

    TG463 User Guide
