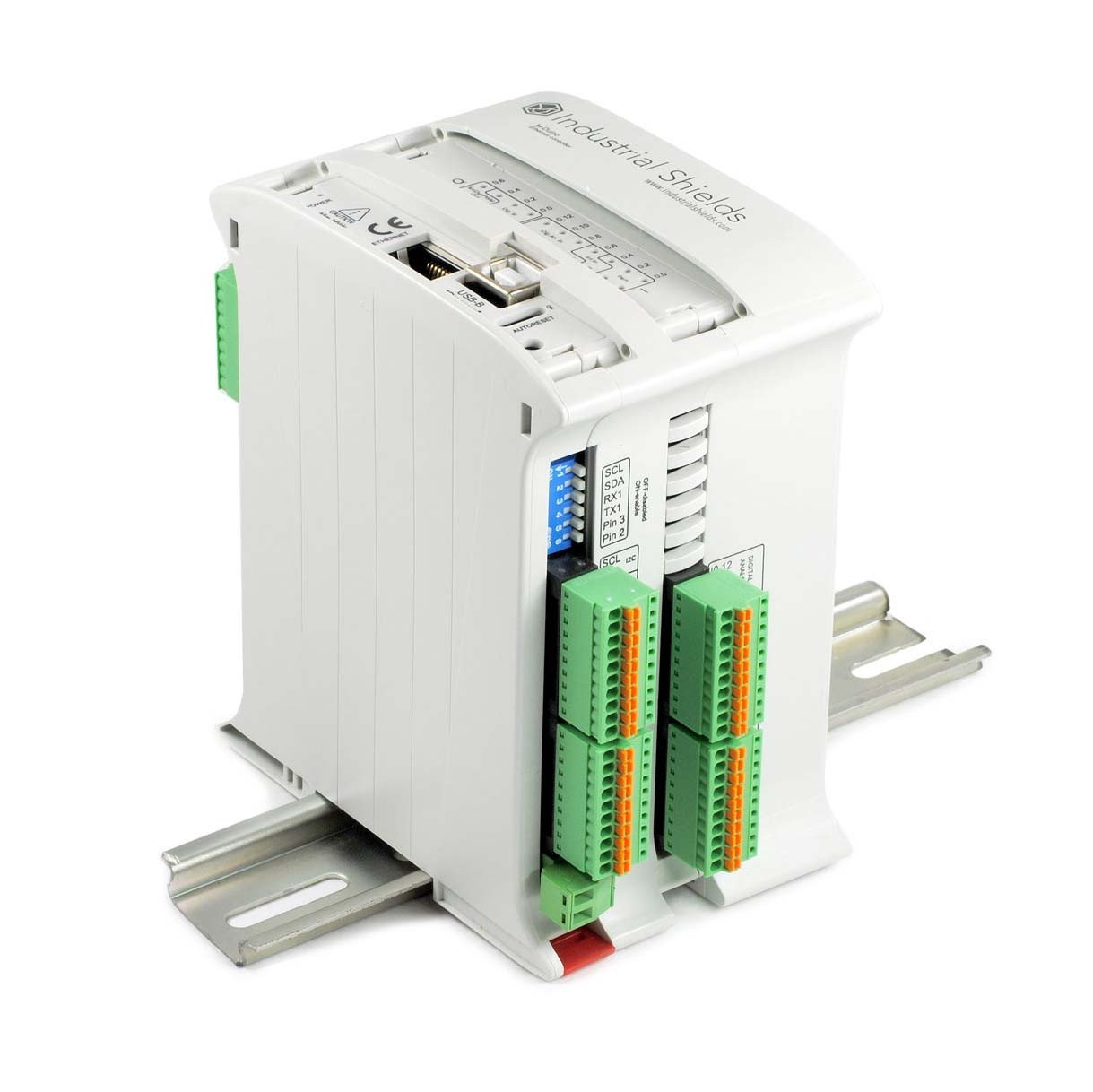

M-DUINO PLC Arduino 21+ I/Os Analog/Digital PLUS - Open Industrial PLC

  • $359.00
  • Save $40
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • M-DUINO PLC Arduino 21+ I/Os Analog/Digital PLUS - Open Industrial PLC (IS.MDuino.21+)

    Modular PLC
    This is the first equipment based on the Arduino technology designed for an industrial and professional use. This PLC has 21 I/Os. It also contains several communication systems which provide more flexibility and control. The PLC M-DUINO family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…

    Programming Software
    This PLC can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.

    Instantaneous connection and coding.
    The PLC M-DUINO is programmed through the USB ports. This offers and immediate access to the program, maintain and control. Also you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Arbosx and the Touchberry Pi with the instantaneous connection.

    (Original Arduino Mega included)

    13 Inputs:

    • (6x) Analog (0-10Vdc) / Digital (5-24Vdc) configurable by software.
    • (7x) Digital Isolated (5-24Vdc).

    8 Output:

    • (8x) Digital Isolated (5-24Vdc) / (3 of which) PWM Isolated
    • (3 of which) Analog (0-10Vdc) configurable by the switch.

    Communications

    • (1x) Ethernet port.
    • (1x) USB port (type B).
    • (1x) I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)
    • (3x) TTL ports.
    • (1x) RS-232 port.
    • (1x) RS-485 port.
    • TCP/IP / Modbus TCP.
    • WebServer capacity
    • Industrial Protocols

    Other Technical specs:

    • RTC (Real Time Clock. NOTE: I2C port used. See pinout modification)

    • µSD Socket (using SPI port, chip select D53 pin).

    • 100x75x115mm

    • DIN-Rail mounting.

    • Max consum.: 1.2A

    • Flash Memory: 256kB (8kB for bootloader)

    • SRAM: 8kB

    • EEPROM: 4kB

    • Clock Speed: 16MHz

    Documents:


    Case Studies:

      HVAC

      WEATHER STATION
