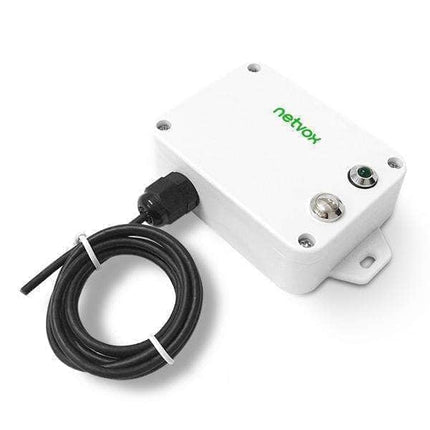

Netvox LoRaWAN R718H LoRaWAN Wireless Pulse Counter Interface

R718H LoRaWAN Wireless Pulse Counter Interface

  • $129.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • R718H LoRaWAN Wireless Pulse Counter Interface

    The device is connected with a pulse detection interface, which can calculate the number of pulses and send the detected number of pulses to the gateway display. It uses the SX1276 LoRaWAN wireless communication module.

    Features:

    • Wireless Range of 10km
    • LoRaWAN Class A compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved Interference Immunity
    • Improved Power Management for Longer Battery Life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
    • Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
    • Over-The-Air Updates (Future)
    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
    • And Set Alerts Via SMS Text And Email (Optional)
    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

    Electric

    Input Power

    2 X 3.6V ER14505 AA Lithium Batteries
    (3.6V2400mah/Section)

    Sleeping Mode

    23 UA

    Wake Up Mode

    6.3mA@3.3V

    Receiving Current (Max)

    11mA @3.3V

    Transmitting Current (Max)

    120mA/3.3V

    Battery Voltage Measurement
    Accuracy

    ±0.1V


    Frequency

    TX Power

    19dBm±1dBm

    Rx Sensitivity

    -136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
    -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)

    Antenna Type

    Build-In Antenna

    Communication Range

    10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)

    Data Transfer Rate

    0.3kbps~50kbps

    Spread Technique

    LoRa/FSK

    Available Frequency

     AU915-928, AS923


    Physical

    Dimension

    Main Part: L: 112mm*W: 65mm*H: 32mm

    Weight

    150g

    Environment Temperature Range

    -20℃ ~ 55℃

    Environment Humidity Range

    <90% RH  (No Condensation)

    Storage Temperature

    -40℃ ~ 85℃



    Documentation:

    Datasheet

    User manual

    Netvox LoRaWAN Catalog

    Battery Calculator:

    Netvox Battery Calculator

    Netvox LoRa Command Resolver:

    LoRa Command Resolver

    Payload Format and Examples

    Netvox LoRaWAN Application Command V1.9

    Netvox LoRaWAN Application Devicetype V1.9

    Example of payload (ConfigureCmd)_R718CK2

    example of payload (ReportDataCmd)

    Frequency Conversion (Sub frequencies of AU915)

    Lora Calibrate Tool User Manual

    Programming Instruction STlink
