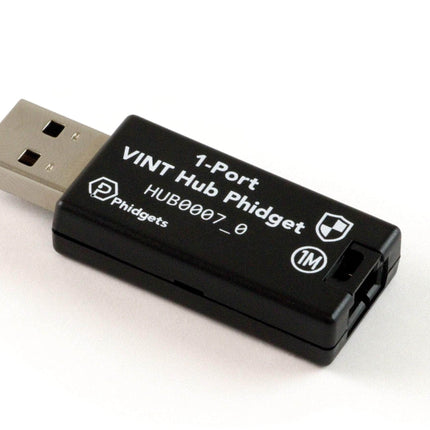

    1-Port VINT Hub Phidget HUB0007

    The 1-Port VINT Hub is the simplest way to Connect a VINT device to your computer through a USB port.

    The VINT port can perform one of four roles:

    • Communicate with an intelligent VINT Device
    • Read a 0-5V Voltage or ratiometric sensor
    • Act as a digital output
    • Read switches as a digital input

    The port mode is set in your program, allowing for flexible use in projects.

    Technical details:

    • Plug and Program - Device is automatically discovered by the Phidget API when attached
    • Pulse Width Modulation Enabled - In DigitalOutput mode, use PWM for dimming LEDs and other simple components
    • Analog Sensor compatible - backward compatibility with both ratiometric and non-ratiometric Phidget analog sensors
    • Improved Performance on newer VINT devices:
      ShieldBetter immunity on compatible VINT devices, resulting in longer maximum cable length
      SpeedHigher speeds on compatible VINT devices
      For more information about these features, see the technical section of the User Guide.

    Phidget Cables

    Use a Phidget cable to connect sensors and VINT devices to this hub. You can solder multiple cables together in order to make even longer Phidget cables, but you should be aware of the effects of having long wires in your system.

    Product Specifications

    Board
    Controlled By USB (USB-A)
    Number of VINT Ports 1
    VINT Communication Speed Max 1 Mbit/s
    Electrical Properties
    USB Voltage Min 4.5 V DC
    USB Voltage Max 5.3 V DC
    USB Speed Full Speed
    Current Consumption Min 18 mA
    Available External Current 1.1 A
    VINT Port Voltage * 5 V DC
    Voltage Inputs
    Number of Voltage Inputs 1 (Shared)
    Sensor Input Impedance 324 kΩ
    Input Voltage Min (DC) 0 V DC
    Input Voltage Max (DC) 5.3 V DC
    Voltage Input Noise (@ 1ms Interval) 1.8 mV DC
    Voltage Input Noise (@ 100ms Interval) 300 μV DC
    Sampling Interval Max 60 s/sample
    Sampling Interval Min 1 ms/sample
    Digital Inputs
    Number of Digital Inputs 1 (Shared)
    Pull-up Resistance 40 kΩ
    Low Voltage Max (True) 1.3 V DC
    High Voltage Min (False) 1.7 V DC
    Low Voltage Trigger Length Min 2.8 ms
    High Voltage Trigger Length Min 2.8 ms
    Digital Input Voltage Max 5.5 V DC
    Digital Input Type Switch (Active Low)
    Digital Outputs
    Number of Digital Outputs 1 (Shared)
    Series Resistance 498 Ω
    Digital Output Available Current 2.6 mA
    Digital Output Voltage Min 0 V DC
    Digital Output Voltage Max 3.3 V DC
    PWM Frequency varies, max 25 kHz
    Duty Cycle Resolution 0.8 %
    Physical Properties
    Operating Temperature Min -40 °C
    Operating Temperature Max 85 °C
    Customs Information
    Canadian HS Export Code 8471.80.00
    American HTS Import Code 8471.80.40.00
    Country of Origin CN (China)

    * VINT Port voltage is taken directly from USB voltage, so it may not be exactly 5V depending on what kind of USB port the HUB0007 is plugged into.
