2MP IMX291 Low Light 120° Wide USB Camera Waterproof Case B0448
This camera is based on 2MP IMX291 USB Camera Module. The max resolution&frame rate is 30fps@1945H x 1109V. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 120°(D) Fixed focus M12 lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android, and Mac OS and No additional drivers are required.
Applications
- 3D Scanner
- VR Camera
- Lightburn Laser Engraver Machine
- Surveillance
- Video System
Features
- HD Resolution and Low Light: This camera adopts the 2MP IMX291 Color CMOS sensor with an 80DB wide dynamic range, which can capture the minimum illumination at 0.001Lux.
- Wide Angle: High quality 120-degree wide view angle (diagonal) M12 lens integrated with IR-cut filter.
- Capture Video with Audio: High frame rates: H.264 30fps@1920x1080; MJPG 30fps@1920x1080; YUY2 30fps@640x 480; Audio, single microphone (optional dual channel).

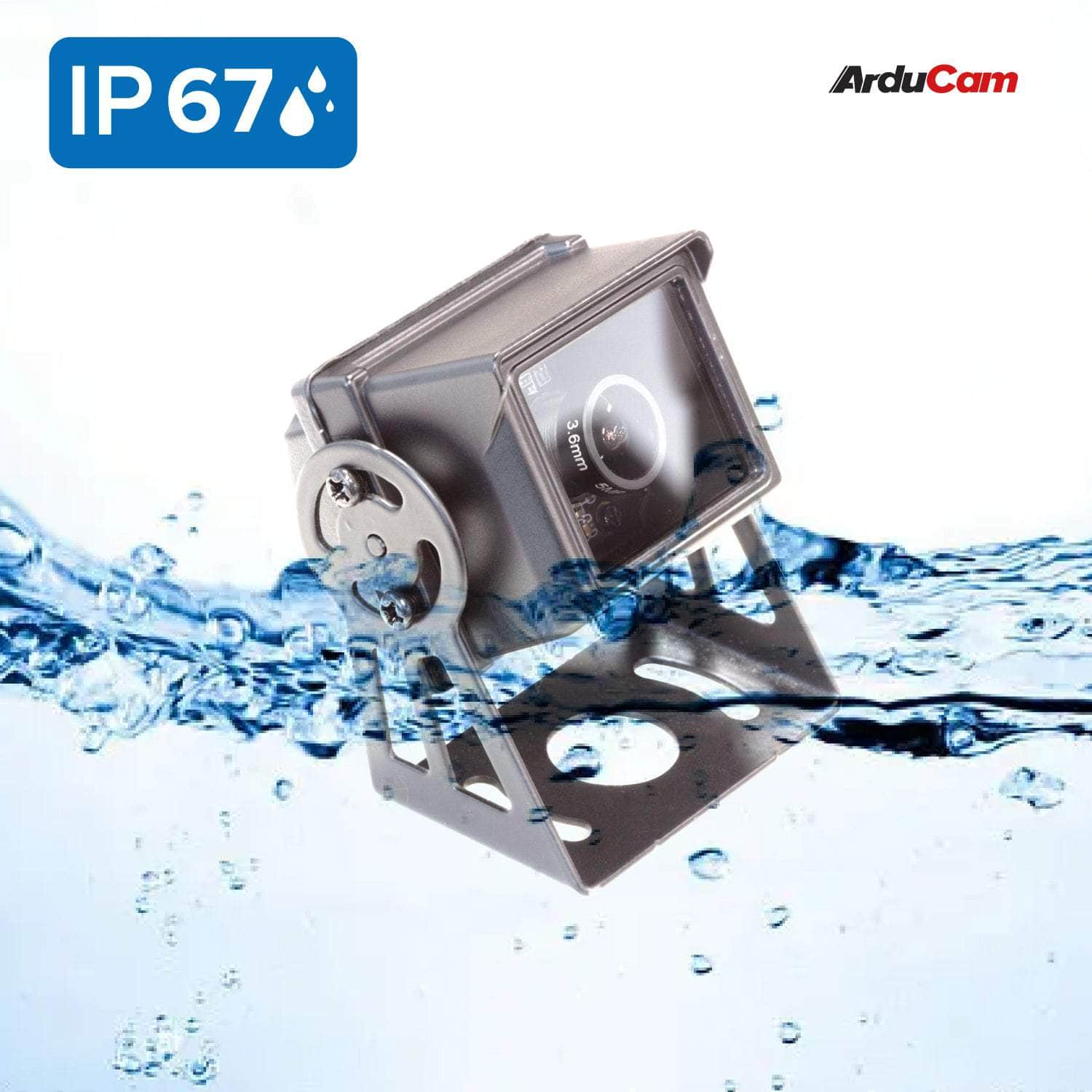

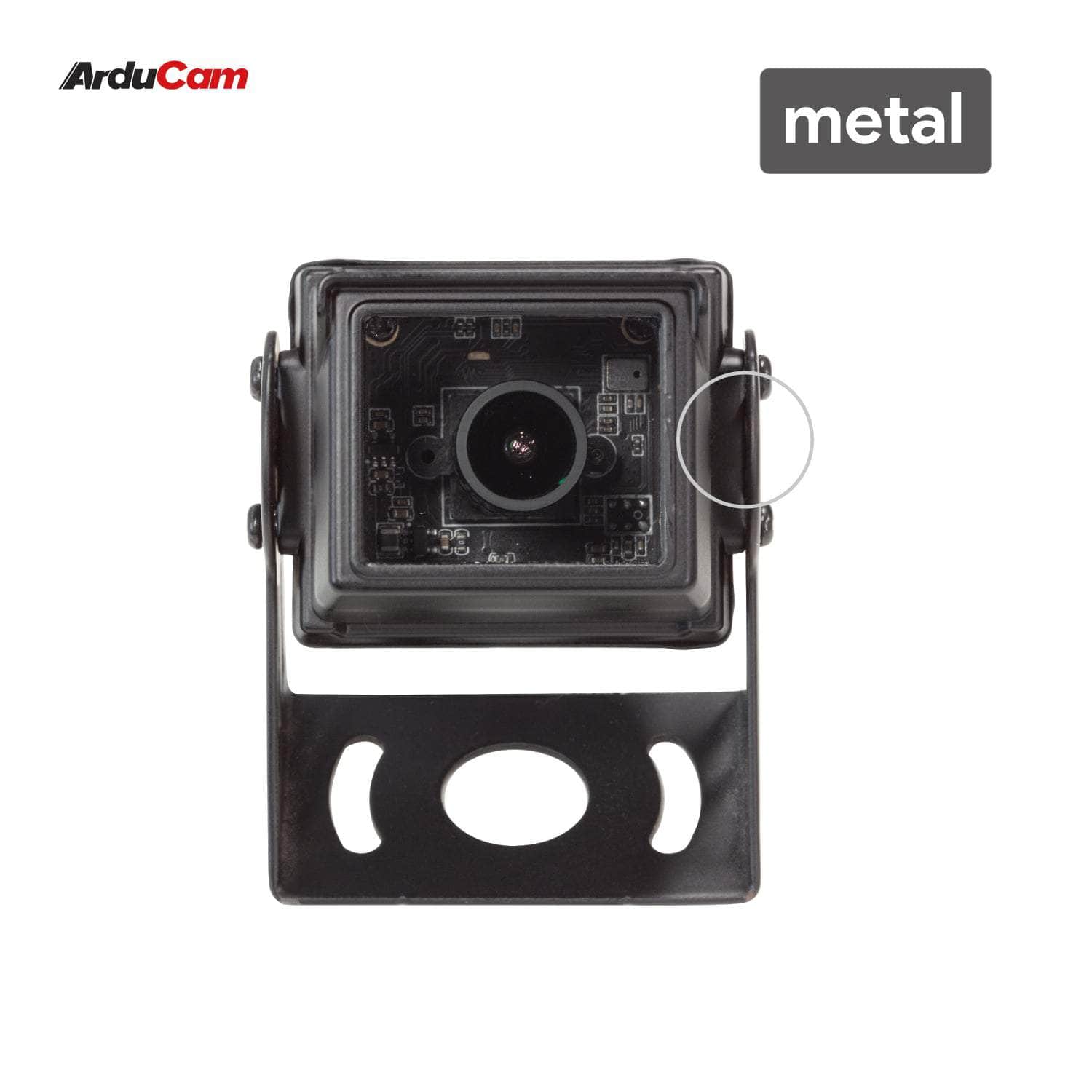

- Waterproof Metal Case: This UVC camera comes with a waterproof metal case, which makes it looks more textured and safe. The case keeps it away from wetness and dust, making use more reassuring.
- More Applications: This tiny camera board can be installed in the most hidden and narrow position for a home video surveillance system, day&night low light vision security camera system, dashcam or other machine vision application.
Specifications
| Sensor |
IMX291 |
| Resolution |
2MP |
| Color Filter Type |
Color |
| Shutter Type |
Rolling shutter |
| Optical Size |
1/2.8" |
| Output Format |
MJPG/YUY2/H.264 |
| Pixel Size |
2.9 µm x 2.9 µm |
| Sensor Active Area |
1947(H)x1109(V) |
| Frame Rate |
H.264 30fps@1920x1080; MJPG 30fps@1920x1080; YUY2 30fps@640x480 |
| Focus Type |
Fixed focus |
| FOV |
120°(D) |
| Lens Mount |
M12 |
| F.NO |
2 |
| E.F.L |
3.6mm |
| Interface |
USB 2.0 device |
| Connector |
B4B-ZR |
| UVC Compliant |
No additional drivers required |
| Operating Voltage |
DC 5V +/- 5% |
| Working Current |
Max 300mA |
| Operating Temp. |
-4°F-158°F(-20°C to 70°C) |
| Camera Board Size |
38mm x 38mm |
| Audio |
Single Microphone |
| Supported OS |
Windows, Linux, Android, and Mac OS |
| Sample Application |
AMCap-Windows Camera application for Video and Still Capture |
| UVC Controls |
Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Backlight Comp, Gain |
Package Including
- 1 x Arducam 2MP USB Camera Module with Waterproof Mental Case

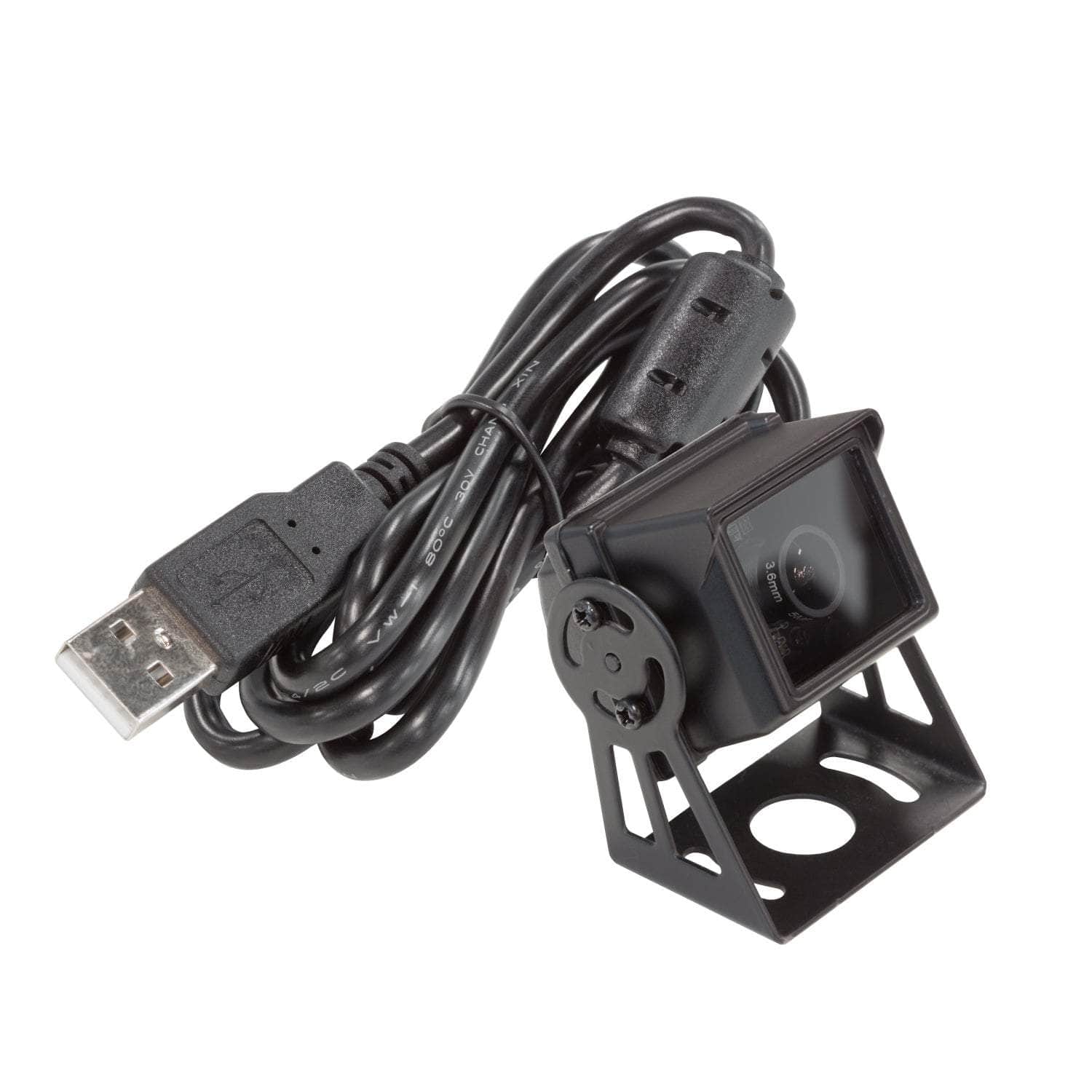

- 1 x USB Cable (1m)
- 1 x Quick start guide
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
- The strong seal of the waterproof case may prevent the microphone from working.
