4G-3G GPS GNSS Module for Jetson Nano LTE CAT4 Global Version (SIM7600G-H)

  • $119.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

    4G-3G GPS GNSS Module for Jetson Nano LTE CAT4 Global Version (SIM7600G-H)

     This is a 4G/3G communication and GNSS positioning module designed for Jetson Nano, it supports global LTE CAT4 up to 150Mbps for downlink data transfer, with pretty low power consumption.

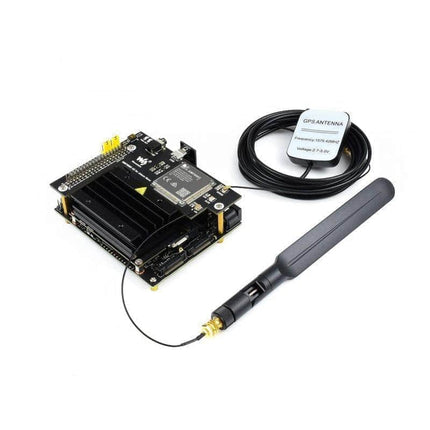

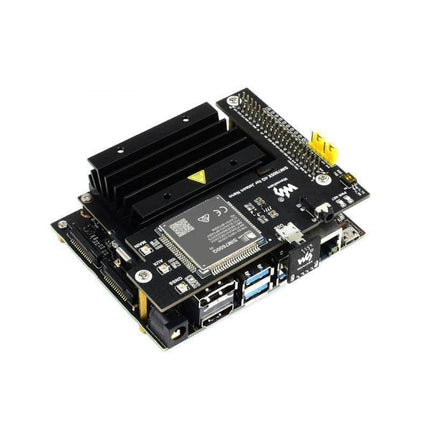

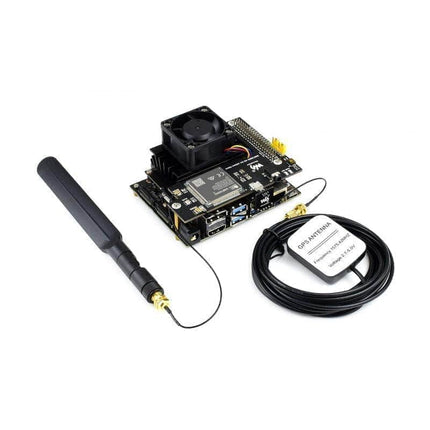

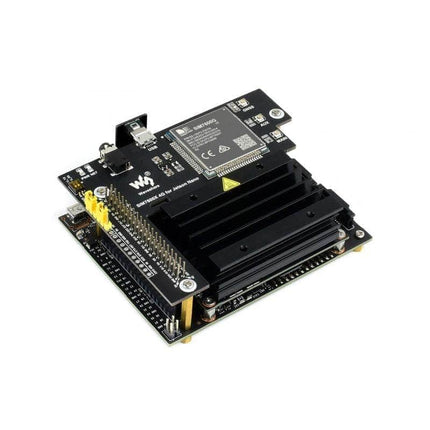

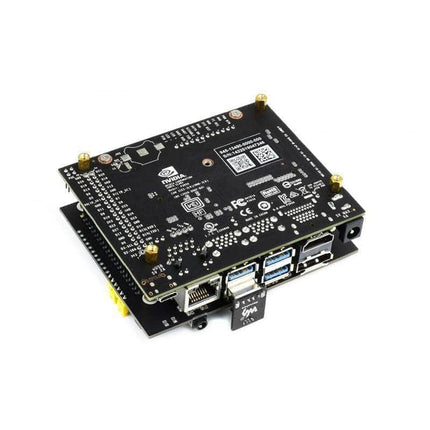

    Just attach it onto the Jetson Nano Developer Kit, easily enable functions like 4G high-speed connection, wireless communication, remote video monitoring, making a telephone call, sending SMS, global positioning, and so on.

    Features

    • 40PIN GPIO extension header for connecting Jetson Nano
    • Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
    • Supports GPS, BeiDou, Glonass, LBS base station positioning
    • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
    • Breakout UART control pins, to connect with host boards like Arduino/STM32
    • SIM card slot, supports 1.8V/3V SIM card
    • Onboard 3.5mm audio jack with earphone and mic support, for making telephone call
    • 2x LED indicators, easy to monitor the working status
    • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
    • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
    • Autobauding baudrate: 9600bps ~ 115200bps
    • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
    • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
    • Comes with development resources and manual (examples for Jetson Nano/Raspberry Pi/Arduino/STM32)

    Communications Specifications

      LTE WCDMA / TD-SCDMA / CDMA 2000     EDGE GSM/GPRS
    Band LTE-TDD B34/B38/B39/B40/B41
    LTE-FDD B1/B2/B3/B4/B5/B7/B8
    /B12/B13/B18/B19/B20/B25/B26/B28/B66
    UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19 GSM/GPRS/EDGE 850/900/1800/1900MH
    Emitting power 0.25W 0.5W@EGSM900
    0.4W@DCS1800
    2W@GSM900
    1W@DCS1800
    Data Speed LTE CAT 4
    Uplink≤50 Mbps
    Downlink≤150 Mbps
    UMTS
    Uplink≤384Kbps
    Downlink≤384Kbps

    HSPA+
    Uplink≤5.76Mbps
    Downlink≤42Mbps
    TD-SCDMA
    Uplink≤128Kbps
    Downlink≤384Kbps

    TD-HSDPA/HSUPA
    Uplink≤2.2Mbps
    Downlink≤2.8Mbps
    CDMA2000/EVDO
    Uplink≤1.8Mbps
    Downlink≤3.1Mbps
    EDGE
    Uplink≤236.8kbps
    Downlink≤236.8kbps
    GPRS
    Uplink≤85.6kbps
    Downlink≤85.6kbps
    SIM Card Normal SIM (Not Included)
    Applicable Region Global 4G/3G

    GNSS Specifications

    • Receiver type
      • 16-channel
      • C/A code
    • Sensitivity
      • Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)
      • Cold starts: -148 dBm
    • Time-To-First-Fix (open air)
      • Cold starts: <35s
      • Hot starts: <1s
    • Accuracy
      • Position: <2.5m CEP

    SMS and Audio Specifications

    • SMS
      • Supported types: MT, MO, CB, Text, PDU
      • Storage: USIM card and ME (default)
    • Audio feature
      • Supports echo cancellation
      • Supports noise reduction

    Other Specifications

    • Power supply: 5V
    • Operating voltage: 5V/3.3V (configured via jumper)
    • Operating temperature: -30°C ~ 80°C
    • Storage temperature: -45°C ~ 90°C

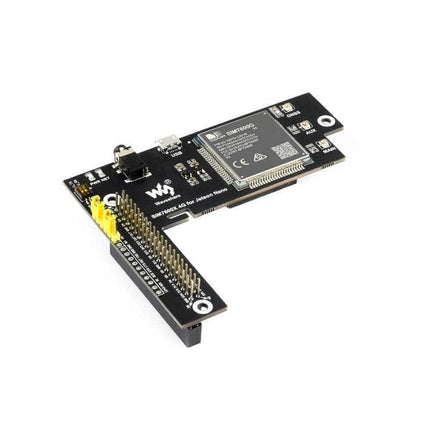

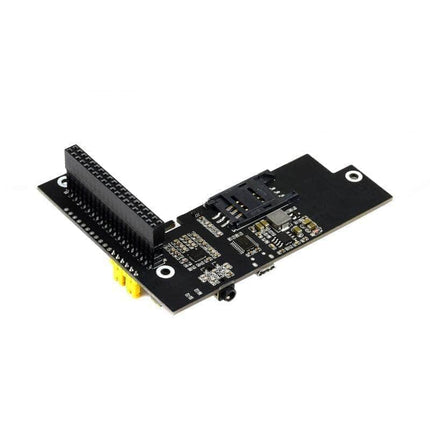

    What's on Board

    1. SIM7600G-H
    2. NAU8810 audio decoder
    3. TXS0108EPWR voltage translator: translates 3.3V/5V into 1.8V
    4. MP1482 power chip
    5. RT9193-33 voltage translator: translates 5V into 3.3V
    6. 40PIN GPIO header: for connecting with Jetson Nano Developer Kit
    7. SIM card slot: supports 1.8V/3V SIM card
    8. USB interface: for testing AT Commands, getting GPS positioning data, etc.
    9. 3.5mm earphone/mic jack
    10. MAIN antenna connector
    11. AUX antenna connector
    12. GNSS antenna connector
    13. Network status indicator
    14. Power indicator
    15. UART enable switch:
      ON: connect UART ports of SIM7600 and Jetson Nano
      OFF: disconnect UART ports of SIM7600 and Jetson Nano
    16. Operating voltage selection jumper:
      VCC - 3.3V: set operating voltage as 3.3V
      VCC - 5V: set operating voltage as 5V
    17. PWR control config:
      PWR - 5V: SIM7600 auto startup on power up
      PWR - D6: SIM7600 will be turned on/off by D6 pin of Jetson Nano

    Dimension

    Development Resources

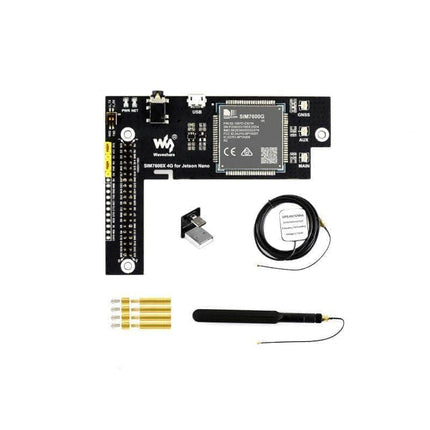

    Package Content

    1. SIM7600G-H 4G for Jetson Nano x1
    2. LTE Antenna x1
    3. GPS External Antenna (B) x1
    4. Jetson Nano USB Adapter x1
    5. Screws pack (2pcs) x1
