5MP Autofocus USB Camera with Microphone B0441

Description

5MP Autofocus USB Camera with Microphone B0441

Overview
  • Compatible with All Platforms: Compatible with Windows, Linux, Mac, Android, and so on.
  • Plug and Play: Integrated All pre-training examples. No additional driver is needed.
  • Resolution&Frame Rate: 5MP(2592*1944)@30fps, full HD USB camera; Capture most exciting details at every 30/15fps
  • Autofocus: Armed with a 69°(HFOV) Autofocus Lens, which allows focusing at a wide range of distances.
  • Mini Sized: Designed for your embedded applications and depth sensing projects with Lightweight and compact size.

This camera is Arducam NEW Autofocus UVC camera. The max resolution&frame rate is 2592(H)×1944(V)@30fps. Besides, we have equipped the camera with Auto Focus Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 69°(H) autofocus lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android, and MAC. There are no additional drivers required. If you have any other requirements, please communicate with our sales team, we look forward to further cooperation with you.

Applications
  • 3D Scanner
  • VR Camera
  • Lightburn Laser Engraver Machine
  • Surveillance
  • Video System
Features
  • Autofocus: 5MP(2592*1944)@30fps, full HD USB camera with Autofocus Lens; Capture most exciting details at every 30/15fps, FoV: 69°(H)
  • MJPEG/YUYV: Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system and applications for industrial.

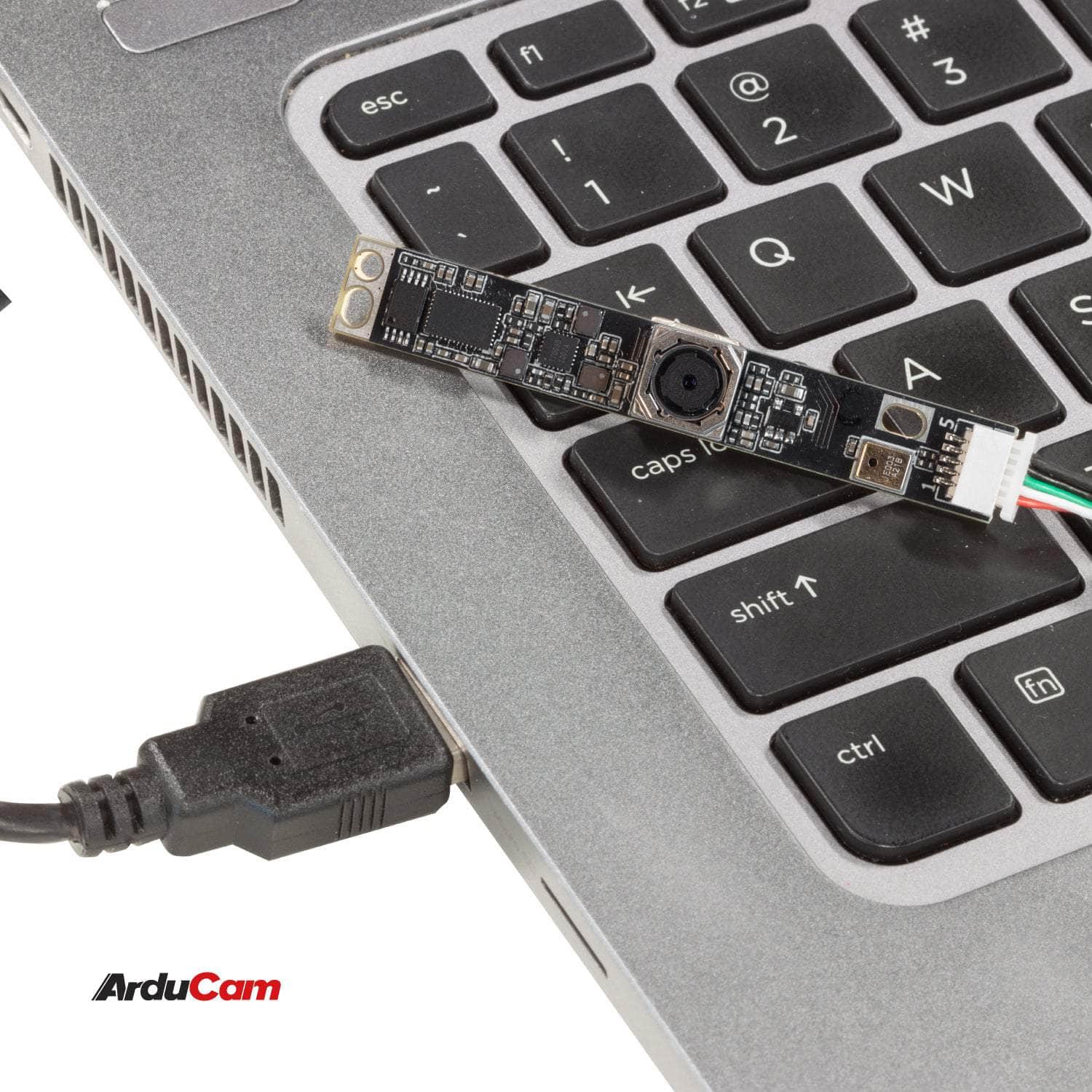

  • Plug and Play: OTG supported plug the USB cable into your PC’s USB port, and running the software can capture high-level video and continuous recording, no driver is needed.
  • Compatible with All Platforms: Adopting UVC protocol, compatible with various platforms and operating systems, such as Windows, Linux, Mac, Android, etc.
  • Mini Sized: Lightweight and compact size is perfect for embedded applications and ideal for Video systems, 3D scanners, VR cameras, electronic microscopes, and medical machines.
Specifications
Resolution 5MP
Color Filter Type Color
Shutter Type Rolling shutter
Optical Size 1/4"
Output Format YUYV/MJPG
Pixel Size 1.4μm*1.4μm
Sensor Active Area 2592(H)×1944(V)
Frame Rate MJPG: 30fps@2592*1944/2560*1440/2048*1536/
1920*1080/1280*720/1600*1200/1280* 960/
800*600/640*480/352*288/176*144
YUY2: 176*144/352*288/640*480@30fps;
800*600/1280*720/1280*960/1600*1200/
1920*1080@5fps; 2048*1536/2560*1440/2592*1944@2fps
Focus Type Auto Focus
FOV 69°(H)
Lens Mount M6.5*P0.25mm
F.NO 2.0±5%
E.F.L 2.46mm
Focal Length /
TV Distortion ＜1%
Interface USB 2.0 device

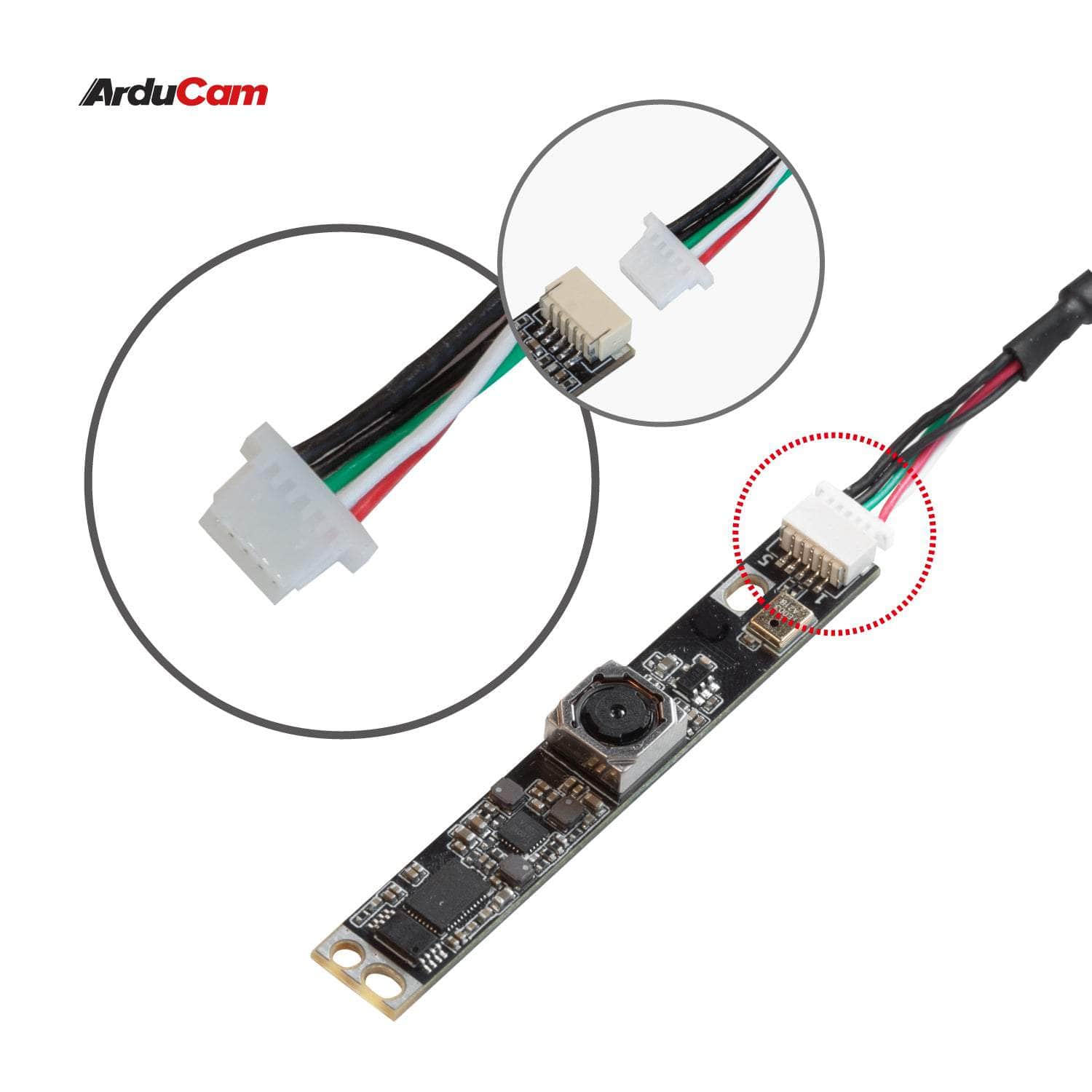

Connector SM05B-SRSS-TB
UVC Compliant no additional drivers required
Operating Voltage DC 5V +/- 5%
Working Current Max 300mA
Operating Temp. -4℉-158℉(-20°C to 70°C)

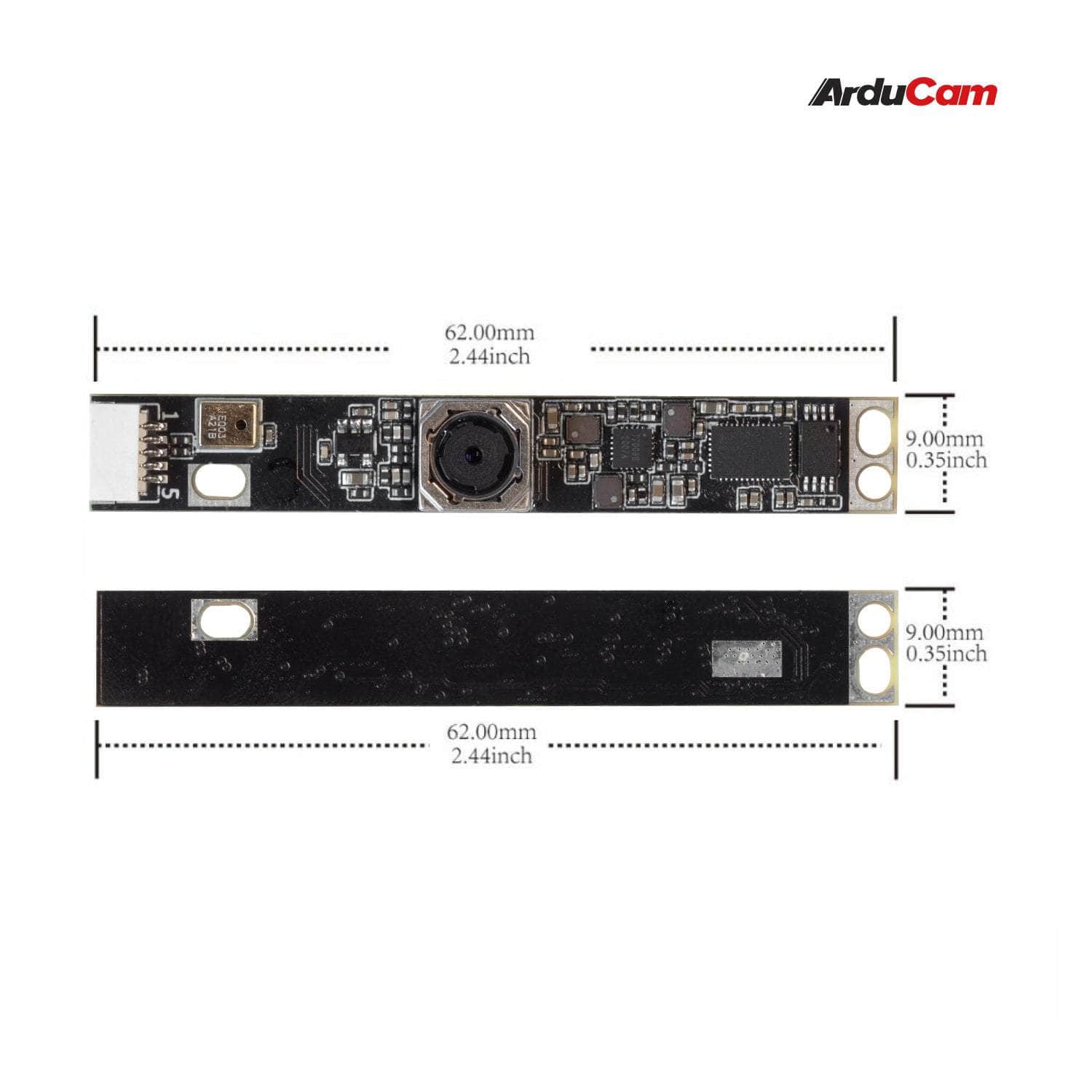

Camera Board Size 62mm x 9mm x 6mm
Audio Single Microphone
Supported OS Windows, Linux, Android and MAC
Sample Application Amcap-Windows Camera application for Video and Still Capture
UVC Controls Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure, Focus

Package Including

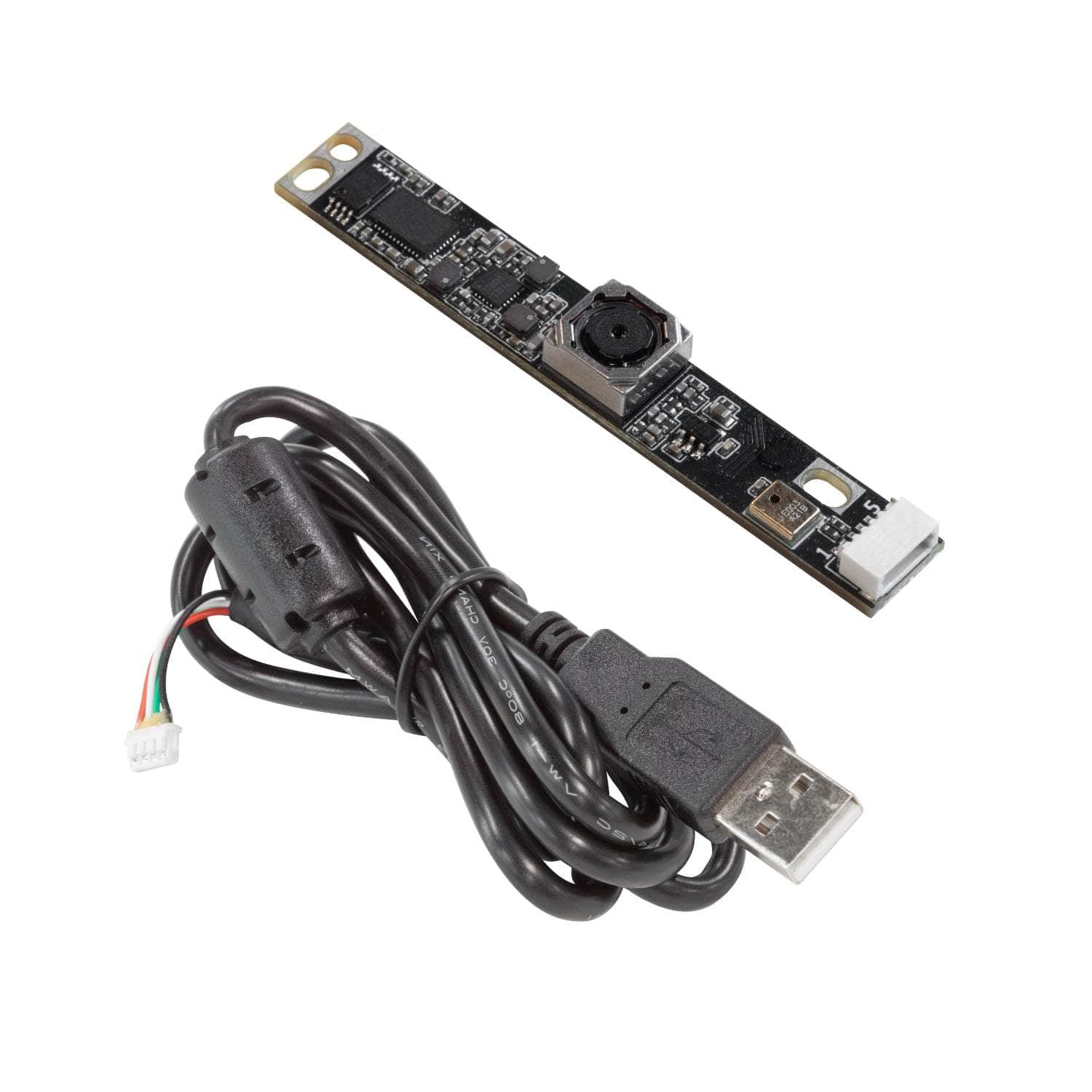

  • 1 x Arducam 5MP AF Camera Module
  • 1 x USB Cable (1m)
  • 1 x Paper Quick start guide
Notes
  • The package contains small contents, please keep it away from children to avoid accidental ingestion
  • After receiving the package, please confirm whether the contents of the package are consistent with the description.
Documentation



Read more

5MP Autofocus USB Camera with Microphone B0441

Product form
Free pickup in our shop(s)

SKU: B0441

$99.00 $89.00 Excl. GST

$89.00
New stock coming, dispatch in 8-10 days.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    5MP Autofocus USB Camera with Microphone B0441

    Overview
    • Compatible with All Platforms: Compatible with Windows, Linux, Mac, Android, and so on.
    • Plug and Play: Integrated All pre-training examples. No additional driver is needed.
    • Resolution&Frame Rate: 5MP(2592*1944)@30fps, full HD USB camera; Capture most exciting details at every 30/15fps
    • Autofocus: Armed with a 69°(HFOV) Autofocus Lens, which allows focusing at a wide range of distances.
    • Mini Sized: Designed for your embedded applications and depth sensing projects with Lightweight and compact size.

    This camera is Arducam NEW Autofocus UVC camera. The max resolution&frame rate is 2592(H)×1944(V)@30fps. Besides, we have equipped the camera with Auto Focus Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 69°(H) autofocus lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android, and MAC. There are no additional drivers required. If you have any other requirements, please communicate with our sales team, we look forward to further cooperation with you.

    Applications
    • 3D Scanner
    • VR Camera
    • Lightburn Laser Engraver Machine
    • Surveillance
    • Video System
    Features
    • Autofocus: 5MP(2592*1944)@30fps, full HD USB camera with Autofocus Lens; Capture most exciting details at every 30/15fps, FoV: 69°(H)
    • MJPEG/YUYV: Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system and applications for industrial.
    • Plug and Play: OTG supported plug the USB cable into your PC’s USB port, and running the software can capture high-level video and continuous recording, no driver is needed.
    • Compatible with All Platforms: Adopting UVC protocol, compatible with various platforms and operating systems, such as Windows, Linux, Mac, Android, etc.
    • Mini Sized: Lightweight and compact size is perfect for embedded applications and ideal for Video systems, 3D scanners, VR cameras, electronic microscopes, and medical machines.
    Specifications
    Resolution 5MP
    Color Filter Type Color
    Shutter Type Rolling shutter
    Optical Size 1/4"
    Output Format YUYV/MJPG
    Pixel Size 1.4μm*1.4μm
    Sensor Active Area 2592(H)×1944(V)
    Frame Rate MJPG: 30fps@2592*1944/2560*1440/2048*1536/
    1920*1080/1280*720/1600*1200/1280* 960/
    800*600/640*480/352*288/176*144
    YUY2: 176*144/352*288/640*480@30fps;
    800*600/1280*720/1280*960/1600*1200/
    1920*1080@5fps; 2048*1536/2560*1440/2592*1944@2fps
    Focus Type Auto Focus
    FOV 69°(H)
    Lens Mount M6.5*P0.25mm
    F.NO 2.0±5%
    E.F.L 2.46mm
    Focal Length /
    TV Distortion ＜1%
    Interface USB 2.0 device
    Connector SM05B-SRSS-TB
    UVC Compliant no additional drivers required
    Operating Voltage DC 5V +/- 5%
    Working Current Max 300mA
    Operating Temp. -4℉-158℉(-20°C to 70°C)
    Camera Board Size 62mm x 9mm x 6mm
    Audio Single Microphone
    Supported OS Windows, Linux, Android and MAC
    Sample Application Amcap-Windows Camera application for Video and Still Capture
    UVC Controls Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure, Focus

    Package Including

    • 1 x Arducam 5MP AF Camera Module
    • 1 x USB Cable (1m)
    • 1 x Paper Quick start guide
    Notes
    • The package contains small contents, please keep it away from children to avoid accidental ingestion
    • After receiving the package, please confirm whether the contents of the package are consistent with the description.
