7 Inch HDMI LCD 1024x600 (C) Capacitive Touch Screen

  • $75.00AUD
  • Save $20
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Resellers & Large Orders
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • 7 Inch HDMI LCD 1024x600 (C) Capacitive Touch Screen

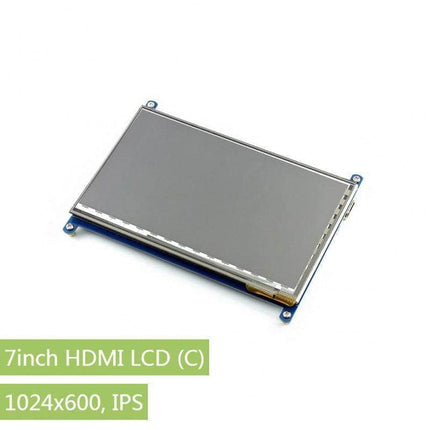

    1024×600, 7-inch Capacitive Touch Screen LCD, HDMI interface, supports various systems

    Features

    • 1024×600 high resolution
    • Capacitive touch control

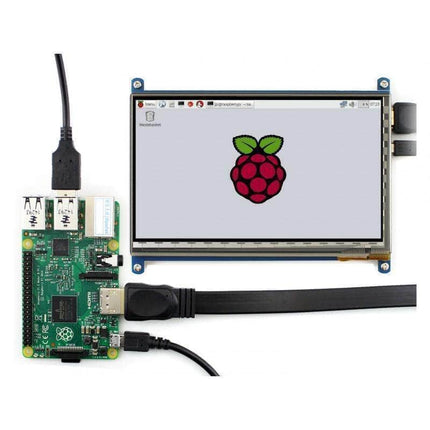

    • Supports Raspberry Pi
    • Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
    • Supports BB Black, comes with Angstrom image
    • For other mini-PCs, driver is required and should be developed by users

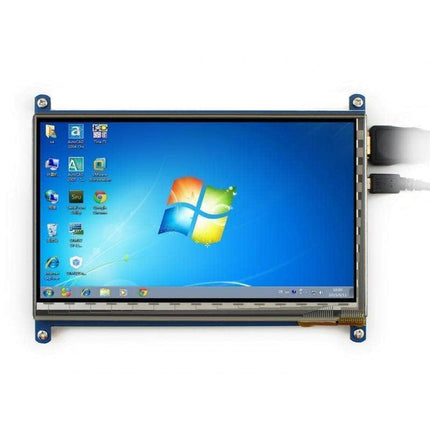

    • Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen
    • HDMI interface for displaying, USB interface for touch control
    • Backlight can be turned off to lower power consumption

    External Dimension

    7inch-HDMI-LCD-C-dimension

      FAQ

      Why doesn't the LCD work with my Raspbian?
      To use the LCD with the Raspberry Pi official image, the driver should be installed first. Please refer to the user manual.
      However, for the first testing, you may want to use the provided image directly.
      Why the LCD still doesn't work with the provided image
      Make sure the hardware connection is correct and connects fine.
      Make sure the image in TF card is burnt correctly.
      The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
      Which power supply should I use?
      It is recommended to use a 5V/2A power adapter for the Raspberry Pi other than USB connection, otherwise, the Pi may fail to start up because the PC's USB port might have not enough power.
      For large size LCDs, say, 10 inches diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

      Package Includes:

      1. 7inch HDMI LCD (C) x 1
      2. HDMI cable x 1
      3. USB type A plug to micro B plug cable x 1
      4. RPi screws pack (4pcs) x 1

      Link to Wiki
