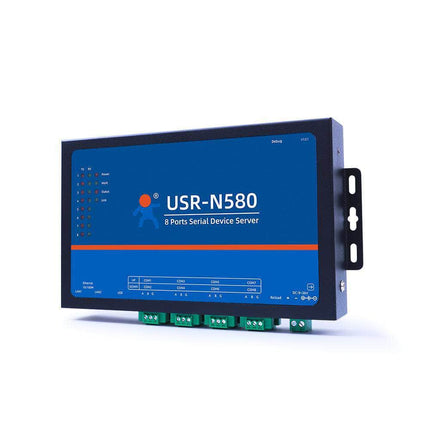

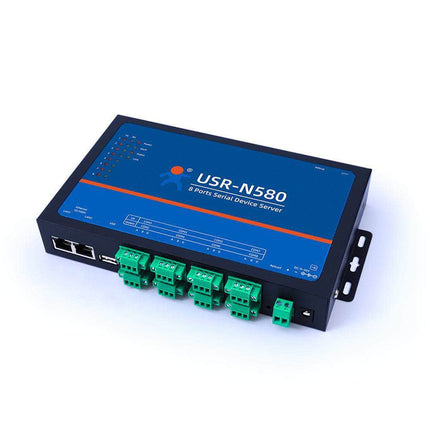

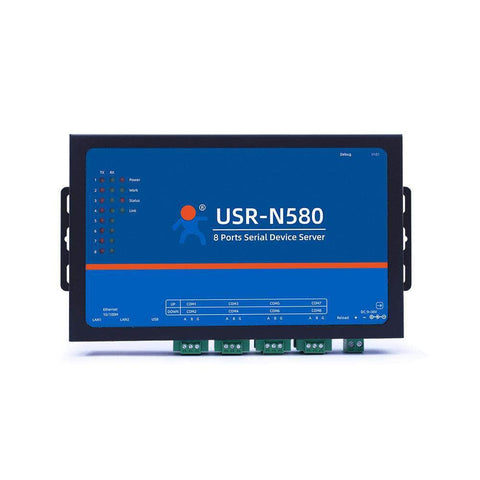

8 Ports Serial Modbus RS485 to Ethernet Converter USR-N580

  • $279.00
  • Save $40
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • 8 Ports Serial Modbus RS485 to Ethernet Converter USR-N580

    Note: This kit includes the AU power adapter, DB9 cable, and connectors.

    USR-N580 is an 8 Ports RS485 Serial Ethernet Converter and designed to realize bidirectional data transparent transmission between the serial port and the Ethernet port. The 8 RS485 ports can work independently and do not affect each other. Each port can be configured for different baud rates. It supports 600bps~921600bps wide baudrate.

    • 8 serial ports support RS485 communication, indicator lights (TX/RX)
    • Functions of Modbus gateway, Modbus RTU to Modbus TCP, Modbus polling
    • Support TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client working modes
    • Support virtual serial port and provide corresponding software USR-VCOM
    • Serial baud rate from 600bps to 921.6Kbps; Parity of None, Odd, Even
    • Functions of Modbus gateway, Modbus RTU to Modbus TCP, Modbus polling

    Specifications

    Classify

    Parameter

    Value

    Hardware Parameters

    Operating Voltage

    DC 9.0~36.0V

    Operating Current

    120mA@12V

    Net interface format

    RJ45,10/100Mbps

    Serial baud rate

    600~921.6K(bps)

    No. of serial ports

    RS485*8

    Software parameters

    Net protocol

    IPV4, TCP/UDP, HTTP

    IP mode

    Static IP, DHCP

    DDNS

    supports

    User Configuring

    Software/webpage configuring, serial/network AT commands

    Operation mode

    TCP server, TCP client, UDP server, UDP client  Support two-way socket

    Similar RFC2217

    support

    HTTPD client

    support

    TCP server

    Support up to 8 TCP Clients (user-defined)

    Net buffer

    48Kbyte

    Serial buffer

    Dynamic packet buffer

    E.g: When the packet length is 10Byte, can buffer200 packets (2KB).

    When the packet length is 1460Byte, can buffer 5 packets (7.3KB).

    Average delay

    <10ms

    Related software

    USR-VCOM, set-up software

    485_EN switching speed

    <100us

    Flow control

    XON/XOFF

    Registration packet

    User-defined, MAC, USR Cloud

    Web to serial

    Websocket function

    Heartbeat packet

    UART, NET

    Others

    Hardware protection

    Electrostatic protection ESD: level 3

    Anti-surge: level 3

    Pulse group: level 3

    Dimension

    222*122*35mm(L*W*H With the terminal, ears)

    Operating temperature

    -40~+85°C

    Storage temperature

    -40~105°C

    Operating humidity

    -40~+85°C (Industrial)

    Storage humidity

    -45~105°C, 5~95%RH (non-condensing)

    Accessories

    Power adaptor, Ethernet cable

    Packaging

    Electrostatic bubble



    Basic Function

    Bi-directional data transmission between RS485 port and Ethernet

    Wide Baudrate

    The 8 RS485 ports can work independently and do not affect each other. Each port can be configured for different baud rates. It supports 600bps~921600bps wide baudrate.

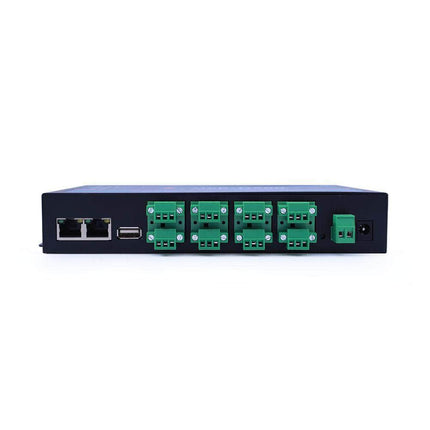

    Cascade Connection Function

    Dual Ethernet port 10/100mbps It supports switch function. Other devices can be cascaded through USR-N580

    Arm scheme (Cortex-M7 core)to provide a better experience

    Arm Cortex-M7 Scheme,480Mhz CPU, 1M RAM +4M Flash The scheme features short transmission delay, fast data transmission speed, flexible expansion, and stable.
    (MQTT/SSL/IPV6 and other major protocols will come soon,please enquire directly for more information ).

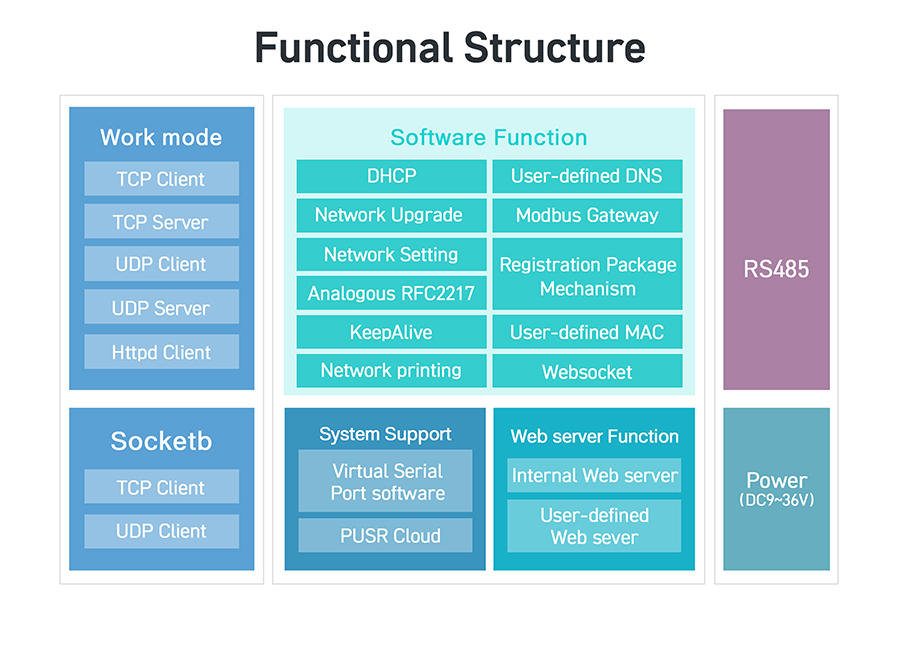

    Free Choice of Multiple Working Modes

    N580 supports TCP Client、TCP Server、UDP Client、UDP Server、Httpd Client (later support MQTT Client) and other modes; only a simple configuration, you can achieve data pass-through function.

    Advanced Hardware Protection

    N580 supports Level 4 ESD (Static), level 3 Surge (Surge), level 3 EFT (Electrical Fast Transients), internal process watchdog, and external hardware watchdog, to ensure normal operation of the equipment and immunity from the outside environment interference.

    ESD Protection

    Prevent electrostatic damage to equipment, such as human electrostatic, dust electrostatic, electric power application of environmental arc, etc.

    Contact Level 4 (±8KV)
    Air Level 4 (±15KV)
    No Restarting

    EFT Protection

    Avoid instantaneous big electric current because of the circuit such as lightning
    stroke, power switch, etc.) when causing damage to equipment hardware.

    Pulse Group: Level 3 (2KV) No Restarting
    Surge Protection
    Anti Surge: Level 3 (2KV) No Restarting

    Watchdog

    internal process watchdog and external hardware watchdog work 24 hours without stopping steadily

    More Features

    Application Case

    Network Monitoring of Industrial Automation

    Traditional network monitoring of industrial automation actually without networking. N580, integrating optimized TCP/IP protocol stack, provides network scheme of serial port data to TCP/IP, which can greatly improve the level of industrial automation.

    Unattended Weighing

    N580 is connected with the barrier gate to facilitate the control center to control
    the gate switch remotely through Ethernet. At the same time, many serial ports of
    N580 can connect peripherals like weighing instruments, LED displays, RFID
    readers, vehicle induction coils, ticket printers, fitting more application scenarios.

    Network Alarm for Electrical Fire

    N580 can communicate with the serial port of the electric fire alarm to transmit the
    alarm information to the server platform quickly, and remind the staff to pay attention
    to the fire information, and reduce the loss of people and property.

    Downloads

    Utilities

    VCOM_Setup_EN_V4.0.6.4

    USR-N580 configuration utility

    USR-TCP232-Test-V1.3.rar

    Development Files

    USR-N580 AT Command Set

    Documents

    USR-N580 User Manual

    USR-N580 Datasheet

    ARM Cortex-M7 Series AT command manual V1.0.0

    USR-N5X0 User Manual
